| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | CWC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Vertical Spiral Elevator | Delivery Value: | 3（m3/h） |
|---|---|---|---|
| Applied Material: | Powder, Granular And Bulk Solids | Conveying Speed: | 3 Squares Per Hour |
| Optional Function: | Cooling, Drying, Screening | Diameter Of Spiral: | 300 To 1800mm |
| Size: | Customized | Lifting Speed: | 0.12（m/min） |
| High Light: | Powder Granules Vertical Conveyor,Granules Enclosed Spiral Lifter,Enclosed Vertical Conveyor |
||
Product introduction

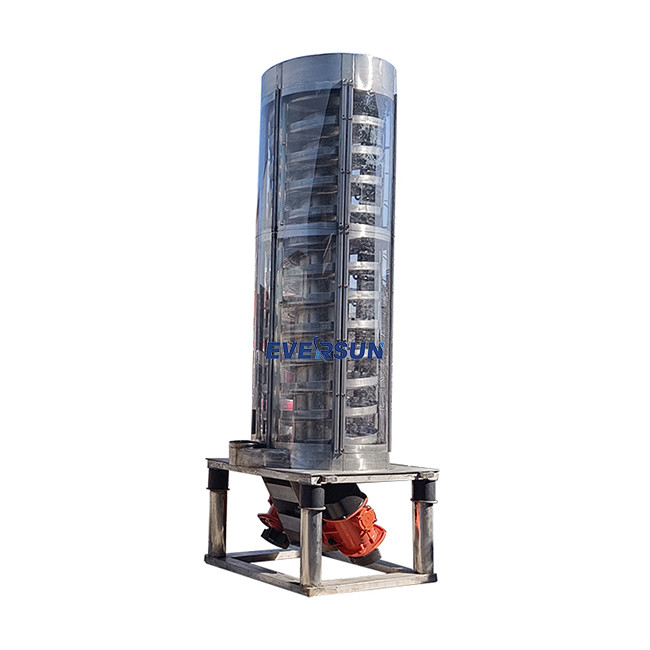

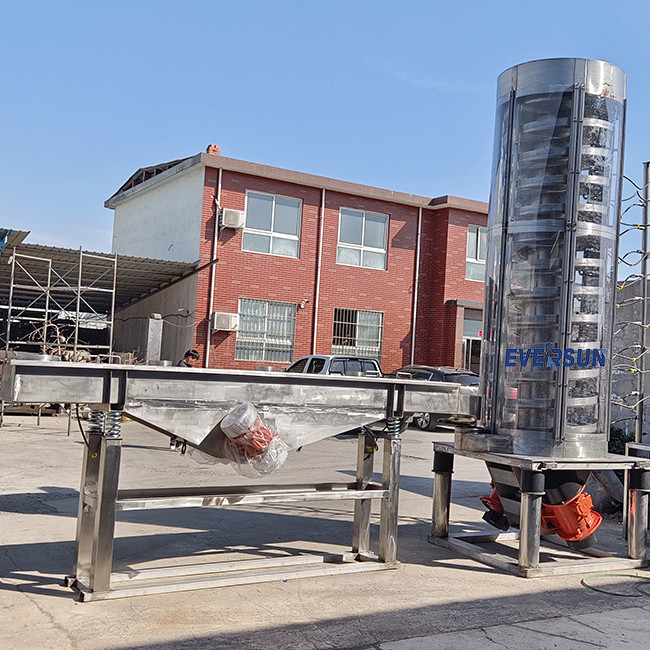

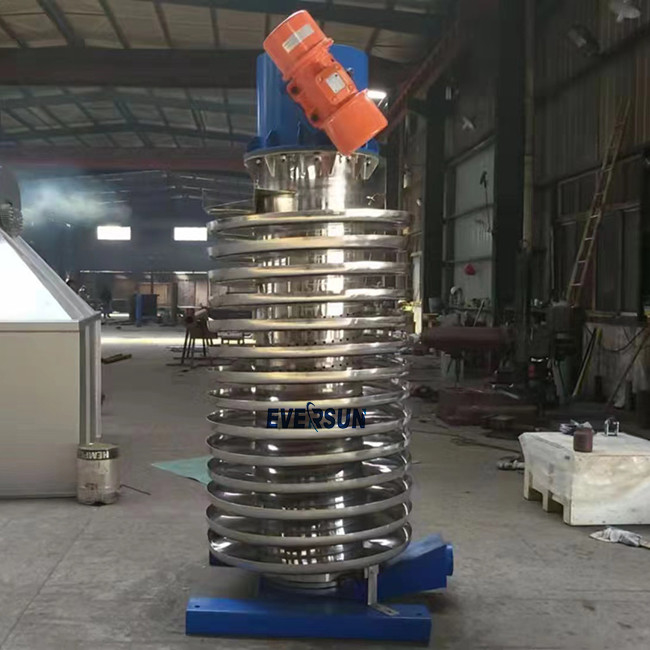

Enclosed Spiral Lifter Vertical Conveyor Spiral Elevator For Powder Granules
Spiral Elevator is a device used to transport materials vertically. It is usually used to lift materials from a low place to a high place or drop them from a high place to a low place. It adopts a spiral structure, and the materials are transported along the outer or inner wall of the elevator through rotating spiral blades.
As a common vertical conveying equipment, the spiral elevator is flexible, reliable and efficient, and is widely used in various industries, including food processing, chemical industry, metallurgy, mining, construction materials, etc. It can be used to vertically transport powder, granules, granular materials, etc. It can realize vertical transportation and automatic processing of materials, improving production efficiency and work efficiency.
Product parameter
The following parameters are for reference only. We support customized different specifications of the elevator, to meet your specific use needs.
| Model | Diameter of spiral | Lifting height(m) | Speed (r/min) | Double amplitude (mm) | Power(kw) |
| CWC30 | 300 | ≤4.0 | 960 | 6-8 | 2*0.4 |
| CWC500 | 500 | ≤6.0 | 960 | 6-8 | 2*0.75 |
| CWC600 | 600 | ≤8.0 | 960 | 6-8 | 2*1.5 |
| CWC800 | 800 | ≤8.0 | 960 | 6-8 | 2*2.2 |
| CWC900 | 900 | ≤8.0 | 960 | 6-8 | 2*3.0 |
| CWC1200 | 1200 | ≤8.0 | 960 | 6-8 | 2*4.5 |
| CWC1500 | 1500 | ≤8.0 | 960 | 6-8 | 2*5.5 |
| CWC1800 | 1800 | ≤8.0 | 960 | 6-8 | 2*6.5 |
| Customized model is available | |||||
Features
The main features of spiral elevator
(1) Spiral structure: The vertical spiral elevator adopts a spiral structure, and the material is transported along the outer or inner wall of the elevator through the rotating spiral blades.
(2) Compact design: Vertical screw elevators usually have a compact design and take up less space.
(3) Multi-point inlet and outlet: Vertical screw elevators usually have multiple inlets and outlets, allowing materials to enter and exit at different heights. This design can meet the needs of multi-point feeding and multi-point discharging.
(4) Adjustable speed control: Vertical screw elevators are usually equipped with an adjustable speed control system, which can adjust the speed according to the requirements and processing technology of the material, thereby controlling the conveying speed and lifting height of the material.
(5) Customized options: It can be designed and configured according to the characteristics of the material, conveying volume, height, etc. to ensure the best working performance and effect.
Application
The application of Spiral Elevator
Vertical Spiral Elevators are widely used in various industries and applications, mainly including the following aspects:
1. Food processing industry: powdered or granular food raw materials, seasonings, dried fruits, nuts, finished products, etc.
2. Chemical industry: powder, granular chemical raw materials, additives, pigments, plastic particles, etc.
3. Mining and construction materials: ore, sand, limestone, coal and other materials.
4. Pharmaceutical industry: pharmaceutical raw materials, pharmaceutical powders, tablets, etc.
Logistics and Warehousing: Cargo.
Packing and shipping
1. Packaging:
Before shipping, the vertical spiral elevator is packed in wooden boxes to protect the equipment itself from damage. This may include wrapping the device with appropriate packaging materials (such as foam board, bubble wrap, etc.).
2. Transportation methods:
Vertical spiral elevators can be transported by different transportation methods, including land, sea or air transportation. The specific choice will depend on the size and weight of the equipment as well as the transportation distance and destination requirements.
FAQ
1. Q: Can the vertical spiral elevator be integrated with other equipment?
A: Yes, the vertical spiral elevator can be used in conjunction with feeding equipment, discharging equipment, conveyor belts, etc. to achieve continuous transportation of materials and automation of process flows.
2. Q: How to maintain the vertical spiral elevator regularly?
A: Common maintenance tasks include cleaning spiral blades, checking and tightening bolts, lubricating bearings, etc.
3. Q: Can the vertical spiral elevator be customized?
A: Yes, the vertical screw elevator can be designed and configured according to the characteristics of the material, conveying volume, lifting height, etc.
4. Q: How to ensure the safety of vertical spiral elevator?
A: The safety of vertical spiral elevators can be ensured in a variety of ways, including safety protection devices (such as protective covers, safety switches), emergency stop devices, safe operation training, etc.
