Customized Pipe Elevator Multi Angle Screw Conveyor For Cement

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: ESC
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Multi -Angle Conveyor Screw Conveyor Material: Stainless Steel304/316L
Surface Treatment: Mirror Sanding/painting Motor: Copper Core Motor
Application: Cement, Fly Ash, Lime, Food And Other Angle: 30° ~ 60°
High Light:

Multi Angle Screw Conveyor


Pipe Elevator Screw Conveyor


Cement Auger Screw Conveyor

Product Description

Product introduction

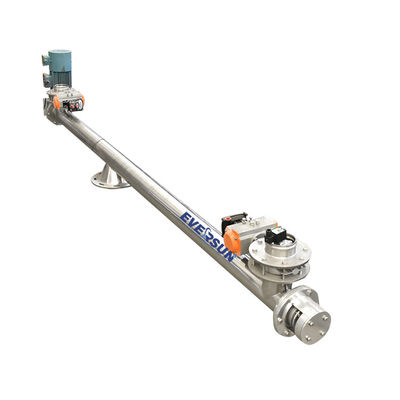

Customized Pipe Elevator Cement Multi - Angle Conveyor Screw Conveyor


Screw conveyor is a kind of tubular or half tubular conveyor equipment, also called tubular screw conveyor, the equipment adopts seamless steel pipe welded, good sealing, powder material in the conveying process will not overflow scattered situation, so as to improve the use of screw conveyor environment. ESC screw conveyor diameter from 100 mm to 1250 mm, a total of five specifications, length from 4 meters to 70 meters, can also be lengthened according to customer requirements, layout flexible, horizontal, inclined or vertical layout. Installation Angle is generally between 30° ~ 45°, if necessary, up to 60°.


Screw conveyor is welded in a cylindrical shell with continuous spiral blades, and the shell rotates with spiral blades. Add the material due to the role of centrifugal force and friction with the housing rotation and is lifted, in the material under the action of gravity and along the spiral surface slide, so that the material with the spiral tube rotation together to achieve the forward movement of the material, as the screw along the rotation of the nut translation movement, to achieve the purpose of conveying materials.


Product parameter




Conveying tube diameter Power Hopper volume Angle(Degree)
ESC-133 133mm 0.75-4KW 200L or customized


ESC-159 159mm 0.75-4KW
ESC-219 219mm 1.5-4KW
ESC-273 273mm 2.2-4KW
Please consult us for more models









Customized Pipe Elevator Multi Angle Screw Conveyor For Cement 0

Product characteristics

1. Support customization, the machine can be multi-angle conveying, such as horizontal conveying, inclined conveying and vertical conveying .


2. The machine can be made into shaft screw conveyor and shafeless screw conveyor.


3. The inlet and outlet device has four kinds of feed port, square type discharge port, hand push type discharge port, rack type discharge port.


4.. The discharge end of the screw conveyor is provided with a cleaning device, the whole machine has low noise, strong adaptability, and flexible layout of the inlet and outlet.


5. The screw conveyor has good tightness, the shell is made of seamless steel pipe, and the end is connected to each other by flanges with good rigidity.


6. Large bearing capacity, safe and reliable, strong adaptability, easy installation and maintenance, long life.


7. The machine is small in size and high in speed to ensure fast and uniform conveying.

Customized Pipe Elevator Multi Angle Screw Conveyor For Cement 1



Screw conveyor is widely used in various industries, such as building materials, chemical, electric power, metallurgy, coal, food and other industries, suitable for horizontal or inclined conveying powder, granular and small block materials, such as coal, ash, slag, cement, food, material temperature is less than 200℃. Screw conveyor is not suitable for conveying metamorphic, viscous, easy to caking material.

Customized Pipe Elevator Multi Angle Screw Conveyor For Cement 2
