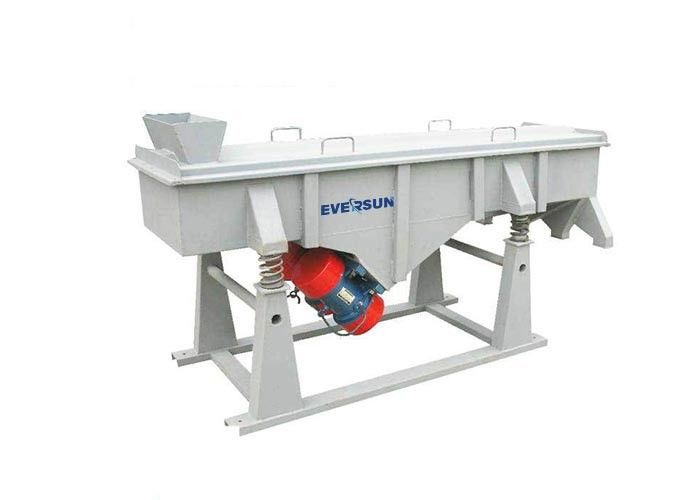

Square Linear Vibrating Screen Machine For Mining 1 - 6 Layer

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: DZSF
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Mining Vibrating Screen Layer: 1~6 Layer
Customized Service: Support Screen Material: Wire Woven Mesh
Motor: Vibration Motor Application: Wet Fine Grained Difficult Screening Material
High Light:

Square Linear Vibrating Screen Machine


6 Layer Linear Mining Vibrating Screen


Mining Linear Vibrating Sieve

Product Description

Product Introduction

High Efficiency Square Linear Vibrating Screen Machine Mining Vibrating Screen


Linear vibrating screen is a kind of wet fine grained difficult screening material dry screening machine, screen surface has a single layer, double layer, multi-layer structure, for a variety of granular and small block scattered solid material wet and dry classification, material vibration screening mechanical equipment.


1. Linear vibrating screen is the use of vibration motor excitation for vibration source, so that the material is thrown up on the screen, at the same time to do linear motion forward, the material from the feeder evenly into the screen machine feed port, through the multi-layer screen to produce several specifications of the screen, screen, respectively from their respective outlet discharge.

2. Linear screen low energy consumption, high output, low noise, simple structure, easy maintenance.

3. Linear screen fully closed structure, no dust overflow scattered, automatic discharge, more suitable for pipeline operation.

4. Unique mesh structure, no mixing grade, string material phenomenon

5. The discharge port can be opened, the rear baffle can be opened


Product Parameter

Model DZSF-520 DZSF-525 DZSF-530 DZSF-1020 DZSF-1025 DZSF-1030
Size(mm) 500*2000 500*2500 500*3000 1000*2000 1000*2500 1000*3000
Material size 0.074-10 0.074-10 0.074-10 0.074-10 0.074-10 0.074-10

Frequency of vibration (times/m)

960 960 960 960 960 960
Leaning angle of screen(°) 0~7 0~7 0~7 0~7 0~7 0~7
Amplitude 3-4.5 3-4.5 3-4.5 3-4.5 3-4.5 3-4.5
Layer 1-6 1-6 1-6 1-6 1-6 1-6
Power(kw) 2*(0.4-0.75) 2*(0.4-0.75) 2*(0.4-0.75) 2*(0.4-1.1) 2*(0.4-1.1) 2*(0.4-1.5)















Square Linear Vibrating Screen Machine For Mining 1 - 6 Layer 0

Product structure

Linear vibrating screen description


The screen machine is mainly composed of screen box, screen frame, screen mesh, vibration motor, motor base, vibration damping spring, support and so on.

1, screen box: made of several kinds of steel plate welding of different thickness, with a certain strength and stiffness, is the main part of the screen machine.

2, screen frame: made of pine or small deformation of wood, mainly used to keep the screen flat, to achieve normal screening.

3, screen: there are low carbon steel, brass, bronze, stainless steel wire and several kinds of screen.

4. Vibration motor (Please refer to the operation manual of vibration motor for the use and maintenance method).

5, motor pedestal: installation of vibration motor, before the use of the connection screw must be tightened, especially three days before the trial of the new screen machine, must be repeatedly tightened, so as not to loose cause accidents.

6, damping spring: prevent vibration to the ground, while supporting the full weight of the screen box, installation, the spring must be vertical with the ground.

7, support: consists of four pillars and two channel steel, supporting the screen box, installation of the pillar must be vertical to the ground, two pillars below the channel steel should be parallel to each other.


Scope of application

Suitable for the screening and classification of powder, granular materials, widely used in coal, hydropower, mining, building materials, chemical, plastics, abrasives, medicine, food, carbon, fertilizer and other industries.


Square Linear Vibrating Screen Machine For Mining 1 - 6 Layer 1


Square Linear Vibrating Screen Machine For Mining 1 - 6 Layer 2

Square Linear Vibrating Screen Machine For Mining 1 - 6 Layer 3
