| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | HZ-2A |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Auger Conveyor | Material: | Stainless Steel316L/304,Carbon Steel |
|---|---|---|---|
| Usage: | Conveying Powder, Granular And Small Bulk Materials | Charging Capacity: | 2-12 M3/h |
| Charging Height: | Standard1.85m,1-5m Or Customized | Adjustable Angle: | ≤60 Degrees Or 90 Degrees |
| High Light: | Corn Mobile Auger Screw Conveyor,120m Auger Screw Conveyor,Grain Suction Flexible Auger Conveyor |
||
Product introduction

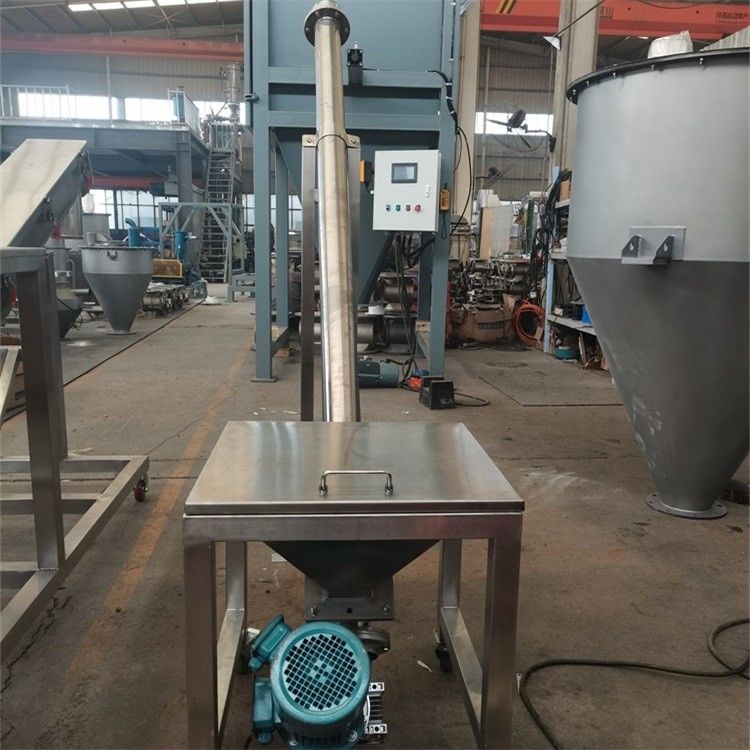

HZ-2A Auger 120m Mobile Corn Small Flexible Screw Conveyor Grain Suction Machine
Screw conveyor also known as screw feeder is mainly used for conveying powdery granular and small block materials, such as pulverized coal, ash, cement, fertilizer, soda, sugar, grain, etc; The screw conveyor/screw feeder has novel structure and good sealing performance. It can carry out intermediate loading and multi-point loading in several positions, and the operation is convenient and reliable. Screw conveyor/screw feeder is widely used in chemical industry, building materials, food and other sectors of a conveying equipment.Screw feeder is not suitable for conveying metamorphic, viscous, easy to caking material. In concrete mixing plant, the role of screw feeder has been well reflected.
Screw conveyor is an environmentally friendly conveying equipment, which does not raise dust and does not affect the surrounding environment pollution. It is mainly used in conjunction with packaging machines, mixers, and dust-free feeding stations to reduce dust, reduce labor intensity, and improve labor efficiency. The feed port can be customized, and the feed port can be customized as a round or square feed port.
Product parameter
| Main specification | HZ-2A2 | HZ-2A3 | HZ-2A5 | HZ-2A7 | HZ-2A8 | HZ-2A12 |
|---|---|---|---|---|---|---|
| Charging capacity | 2m3/h | 3m3/h | 5m3/h | 7m3/h | 8m3/h | 12m3/h |
| Diameter of pipe | OD102 | 114 | 141 | 159 | 168 | 219 |
| Hopper volume | 100L | 200L | 200L | 200L | 200L | 200L |
| Power supply | 3P AC208-415V 50-60Hz | |||||
| Total power | 610KW | 810KW | 810KW | 1560KW | 2260KW | 4060W |
| Total weight | 75kg | 100kg | 130kg | 170kg | 200kg | 270kg |
| Overall dimensions of hopper | 720*620*800 | 10238820*900 | ||||
| Charging height | Standard1.85m,1-5m could be designed and manufactured | |||||
| Charging angle | Standard45 degree,30-60 degree are also available | |||||
Product Advantages
1. Conveying process can also be the material for mixing, mixing, heating and cooling operations.
2. Reliable work, easy maintenance and management.
3. Simple structure, small cross section size, good sealing, reliable work, low manufacturing cost, easy to intermediate loading and unloading.
4. The screw conveyor produced by our company can support customization. Customized configuration: (1) bracket (2) hopper (3) wheels (4) pipe specifications and length (5) motor (6) reducer
5. Conveying viscosity is not big, not easy to deteriorate, not locust agglomeration of powder, granular and small pieces of material.
6.The direction of transmission can be reversed, but also to the opposite two directions at the same time.
Application
Screw conveyor is suitable for conveying cement concrete, powder, sand, stone, coal, small lump coal and other powder or small particle materials. Due to the small effective circulation area in the body, screw conveyor is not suitable for conveying metamorphic, viscous too large, easy to caking material, it can be arranged into a horizontal or inclined conveying form; Screw conveyor is used in a variety of industrial sectors, such as cement mixing plant, lime plant, cement plant, coal transport system, chemical plants, mining and so on.
How to choose the right machine
Consult about the application and selection of screw conveyor model, need to provide parameters: such as material name, particle size, material temperature, conveying capacity, conveying length.
