CCarbon Steel Auger Screw Conveyor Cooling Function Spiral Elevator For Rock Salt

Basic Information
Place of Origin: China
Brand Name: EVERSUN MACHINERY
Certification: ISO,CE
Model Number: RNS
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Vertical Vibrating Screw Conveyor Body Material: Carbon Steel,Stainless Steel316L/304
Applied Material: Powder, Granular And Bulk Solids Advantage: Cover A Small Area
Customized Service: Support Feature: Vertical Material Transfer
High Light:

Carbon Steel Auger Screw Conveyor

,

Cooling Function Spiral Elevator

,

Rock Salt Auger Screw Conveyor


Product Description

Product introduction


Carbon Steel Auger Screw Conveyor Cooling Function Spiral Elevator For Rock Salt



Spiral elevator using vibration motor as vibration source, the use of two vibration motor synthesis amplitude, the material along the spiral conveyor groove up. Spiral elevator is mainly used to lift granular, powdery, block materials. The conveyor has the advantages of simple structure, easy maintenance, material quantitative delivery, continuous adjustable throughput, can be used as a vertical conveying of small particle materials in various industries. In addition to lifting the material from the bottom up, it can also complete the drying and cooling effect of the material. Separate trough type, closed two kinds of structure, and according to the requirements of different processes, the design of material particle classification effect screening hoist and the design of flammable and explosive material hoist. Spiral elevator(conveyor) is widely used in chemical industry, rubber, plastics, medicine, light industry, food, metallurgy, building materials, mining, food and other industries.



Product parameter


Conveyor height(m)   <=6.0
 Diameter of groove(mm)  300-900
 Capacity(t/h)  1.0-4
 Power(kw)  2*(0.4-3.0)
 Material Carbon steel,stainless steel304,stainless steel 316L
 Structure  Open-type,Closed-type
 Machine can be customized based on your need



















Advantages


1. When the vertical elevator is working, the return of the shelf does not occupy the working beat, and the conveying efficiency is high, and is not affected by the high-speed conveying.



2. Can only transport goods, and the material has the minimum size limit.



3. Large bearing range, up to 2000Kg.



4. Matching with the inlet and outlet conveying equipment, the conveying process can realize complete automation and avoid the instability brought by manual operation.



5. Compact structure and small footprint.



6. Safe and reliable, easy to maintain, low operating cost, effectively reduce the transportation cost.

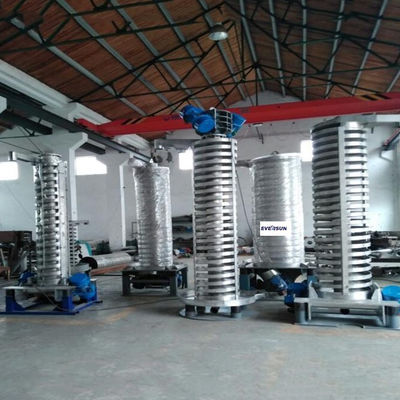

CCarbon Steel Auger Screw Conveyor Cooling Function Spiral Elevator For Rock Salt 0



Working principle


The vibration motor of the driving device of the spiral elevator is installed in the lower part of the conveying tower, and the two motors are symmetrically cross-mounted. The conveying tower is composed of the tube body and the spiral conveying groove welded around the tube body. The conveying tower is located on the damping device, which is composed of the base and the vibration isolation spring. When the spiral elevator work, according to the principle of double vibration motor synchronization, vibration motor generated by vibration force, forcing the whole conveying tower for horizontal circular motion and vertical motion upward space complex vibration, spiral groove material is by the role of the conveying groove, uniform throwing circular motion, along the conveying tank body upward movement, so as to complete the material up (or down) conveying operation.

CCarbon Steel Auger Screw Conveyor Cooling Function Spiral Elevator For Rock Salt 1

How to choose the right machine



You need to tell us the material you want to handle, the throughput you want to achieve, the width and height of the delivery and so on. please contact us ,Our engineers will provide suitable machine model based on the use condition.

CCarbon Steel Auger Screw Conveyor Cooling Function Spiral Elevator For Rock Salt 2
