| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | RNWLDH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Ribbon Blender Mixer | Material: | Stainless Steel304/316L,Carbon Steel |
|---|---|---|---|
| Adjustable Frequency: | 0-33 RPM | Motor: | 3-110kw |
| Capacity: | Customers' Request | Usage: | Mixing Powder,Particle And Liquid |
| High Light: | Double Screw Ribbon Blender Mixer,Chemicals Ribbon Blender Mixer,Ribbon Dry Powder Mixing Machine |
||
Product introduction

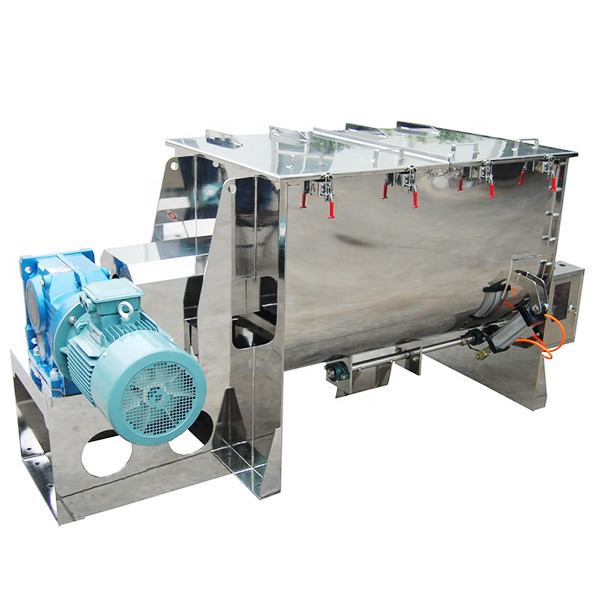

Double screw ribbon blender mixer dry powder mixing machine for chemicals
Double-layer spiral blades are arranged on the driving spindle of the ribbon blender mixer. The internal spiral will transport the material to the outside, and the external spiral will gather the material to the inside. Under the convective movement of the double-layer helical belt, the material forms a mixed environment with low power and high efficiency. The inner and outer diameter spiral mounted on the stirring shaft drives the materials in the barrel, so that the agitator turns the materials in the maximum range in the barrel. During the operation of the mixing device, the inner screw drives the material near the center of the shaft to rotate, and the shaft is pushed from the inside to the two sides. The external screw drives the material near the cylinder wall to rotate, and the axial direction is pushed inward from both sides. The mixture can be mixed evenly in a short time.
With 20 years of experience,we design various ribbon mixing production lines for pharmaceutical ,chemical,food,building materials and other industries.The machine can also make heating, cooling, positive pressure, vacuum according to user's requirements.
Technical specification
| Model | Motor power (kw) |
Spindle speed(r/min) |
Primary mixing (kg)m ³ |
L*W*H(mm) | Weight (kg) |
| WLDH-0.3 | 3 | 41 | 240 | 2300*680*1060 | 750 |
| WLDH-0.5 | 5.5 | 41 | 400 | 2900*780*1240 | 1000 |
| WLDH-1 | 11 | 33 | 800 | 3200*1000*1400 | 1800 |
| WLDH-2 | 15 | 33 | 1600 | 3860*1200*1650 | 2200 |
| WLDH-3 | 18.5 | 33 | 2400 | 4320*1300*1900 | 3200 |
| WLDH-4 | 22 | 28 | 3200 | 4600*1400*2000 | 4000 |
| WLDH-5 | 37 | 28 | 4000 | 4850*1500*2020 | 4650 |
| WLDH-6 | 37 | 22 | 4800 | 5400*1560*2200 | 6280 |
| WLDH-8 | 45 | 22 | 6400 | 5100*1720*2420 | 8500 |
| WLDH-10 | 55 | 19 | 8000 | 5610*1750*2360 | 9300 |
| WLDH-15 | 90 | 17 | 12000 | 5820*2000*3160 | 11000 |
| WLDH-20 | 110 | 11 | 16000 | 6060*2630*3160 | 13500 |
| More model can be customized | |||||
Scope of application
It is widely used in putty paste, lacquer, dry powder, putty, medicine, food, chemicals, feed, ceramics, refractory materials such as solid-solid (powder and powder), solid-slurry (powder and glue) mixing, especially suitable for thick material mixing. The mixer is not suitable for mixing materials with large fiber content and large density difference. Putty paste, lacquer, biology, medicine, food and other industries, recommend the use of stainless steel. In general, mixing dry powder mortar containing glass bubbles is recommended by horizontal screw belt mixer. The motor is directly connected with the stirring spindle through the cycloid reducer, which has the advantages of simple structure, high reliability and easy maintenance.
