Vibratory Screening Machine

Product description

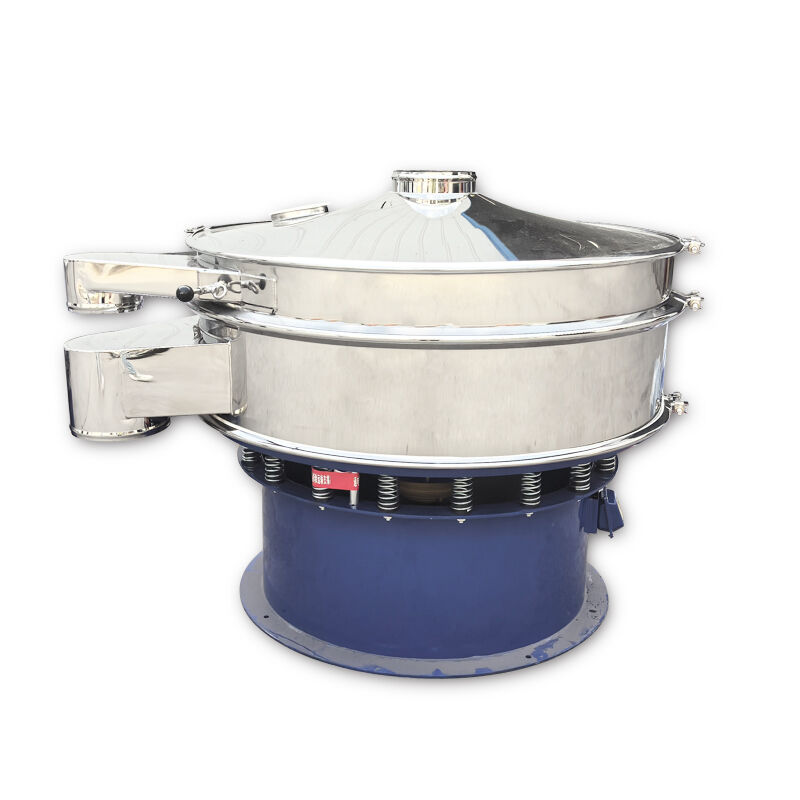

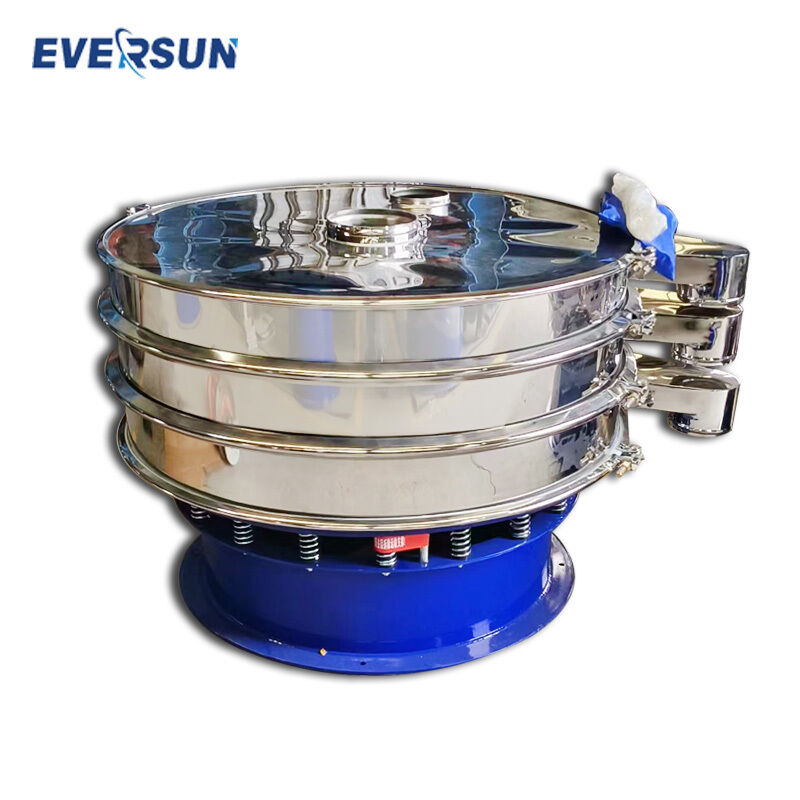

The rotary vibrating screen is a circular fine screening equipment with a small size that doesn't occupy much space. It is fully enclosed to prevent dust and leakage. Multiple layers of screen meshes can be installed, allowing for the classification of multiple specifications of materials in one operation. The discharge angle can be adjusted, and it is suitable for production lines. The equipment operates smoothly with low noise. Changing the screen mesh and cleaning are convenient. It is made of 304/316 stainless steel, which is clean and corrosion-resistant. It can screen powder, particles, and slurries. It is mainly used in the chemical and food industries for impurity removal and classification.

Working principle

The rotary vibrating screen generates excitation force through the up-and-down eccentric heavy weights of the vibration motor, which drives the screen body to perform three-dimensional vibration in the vertical, horizontal and inclined directions. The materials are continuously thrown and rolled on the screen surface. Fine materials pass through the screen mesh to complete the screening process, while coarse materials remain on the screen surface and gradually exit. By adjusting the angle of the eccentric block, the vibration amplitude can be changed, thus meeting the screening requirements for various materials.

Features & Benefits

1. Three-dimensional vibration: High screening accuracy and efficiency, excellent fine powder screening effect
2. Sealed dust-free structure: Completely enclosed, no dust flying, clean and environmentally friendly
3. Multi-layer screening: 1-5 layers of screen mesh are available for selection, one-time classification of multiple particle size materials
4. Compact and lightweight: Compact body, flexible placement for movement, suitable for small workshop spaces
5. Simple disassembly and maintenance: Quick screen mesh replacement, no dead corners in the cavity, easy cleaning and rinsing
6. Low operating noise, stable vibration, stable and durable operation
7. Material options: Contact materials are available in 304/316 stainless steel, corrosion-resistant, suitable for food hygiene requirements
8. Adjustable outlet angle, convenient for connecting to the assembly line, suitable for continuous production

Product parameter

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free
2. The mixed materials directly enter the sieve machine for screening

Detail display

Application
