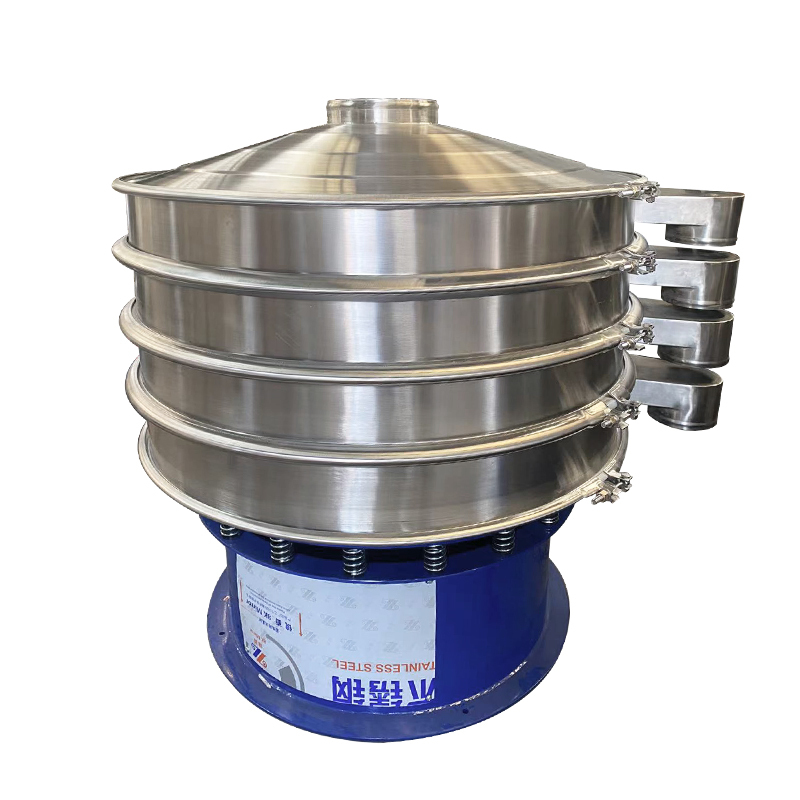

Vibratory Screening Machine

Product description

The rotary vibrating screen is a mainstream equipment for fine material screening. Compact in design and space-saving, it operates smoothly with low noise and features a fully enclosed structure for cleanliness and environmental protection. It supports multi-layer grading and automatic discharge of coarse and fine materials, making it ideal for continuous production. Screen replacement and cleaning are quick and effortless. Made of stainless steel, it is suitable for various industries including food, chemical, and metallurgy, efficiently handling impurity removal, particle size classification, and solid-liquid separation for powders, granules, and slurries.

Working principle
At the bottom of the motor, there is an eccentric weight. When the motor is running, it generates high-speed rotational excitation force, which is transmitted through the body to form three-dimensional reciprocating vibration. The material on the sieve surface is continuously jiggled, scattered, and rolled under the continuous vibration force. Fine particles pass through the sieve mesh and fall down, while large particles are retained. The separation and impurity removal is accomplished by the difference in sieve mesh size. The eccentric block can adjust the inclination angle of the counterweight, thereby changing the vibration amplitude and the trajectory of the material movement, and adapting to the different screening requirements of different materials.

Features & Benefits

1. Three-dimensional vibration: High screening accuracy and efficiency, excellent fine powder screening effect
2. Sealed dust-free structure: Completely enclosed, no dust flying, clean and environmentally friendly
3. Multi-layer screening: 1-5 layers of screen mesh are available for selection, one-time classification of multiple particle size materials
4. Compact and lightweight: Compact body, flexible placement for movement, suitable for small workshop spaces
5. Simple disassembly and maintenance: Quick screen mesh replacement, no dead corners in the cavity, easy cleaning and rinsing
6. Low operating noise, stable vibration, stable and durable operation
7. Material options: Contact materials are available in 304/316 stainless steel, corrosion-resistant, suitable for food hygiene requirements
8. Adjustable outlet angle, convenient for connecting to the assembly line, suitable for continuous production

Product parameter

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free
2. The mixed materials directly enter the sieve machine for screening

Detail display
