Ultrasonic Vibrating Screen Offering Stable Ultrasonic Vibration to Prevent Material Blockage and Improve Screening Output

Product Description:

The ultrasonic rotary vibrating screen is a precision screening equipment that adopts high-frequency ultrasonic cleaning net technology. It is specifically designed for efficient processing of high-precision, easily agglomerated, and strongly adsorptive fine powders. It effectively solves the problem of screen mesh blockage, significantly improving the screening efficiency and accuracy. It is particularly suitable for screening materials with a particle size of 20 microns or below. This equipment is widely used in industries such as chemical engineering, food, and new materials, featuring strong screening capacity, large processing capacity, simple maintenance, and high reliability.

Working principle

The working principle of the ultrasonic rotary vibrating screen is based on the dual synergy of mechanical screening and ultrasonic net cleaning. The equipment generates three-dimensional rotary force through the bottom vibration motor, driving the materials to complete regular spreading and layer-by-layer screening on the screen surface; at the same time, the ultrasonic system precisely conveys the high-frequency vibration to the screen mesh, causing the mesh surface to undergo tens of thousands of micro-amplitude oscillations per second. This high-frequency oscillation can effectively eliminate the adhesion force, static force and surface tension between the materials, thereby continuously breaking the clogging phenomenon and ensuring the smooth passage of fine particles through the screen. The mechanical movement and ultrasonic vibration complement each other, achieving efficient transportation and classification while ensuring the long-term permeability of the screen mesh and the stability of the screening accuracy.

Product Features

1. Strong anti-blocking effect, ensuring continuous operation: The ultrasonic high-frequency vibration can efficiently remove the blockages caused by static electricity and agglomeration of materials, addressing the problem of clogged nets at the root and ensuring stable and continuous production.
2. High precision, large output: Significantly improves the screening accuracy and screening rate of fine materials, and the processing capacity is much higher than that of traditional screens under the same conditions. It is particularly suitable for high-value-added fine powders.
3. Long sieve life, low maintenance cost: The high-frequency micro-vibration significantly reduces the wear of the sieve and the blocking of materials in the holes, prolonging the service life of core components such as the sieve, and reducing the overall maintenance cost.
4. Strong adaptability, easy adjustment: The ultrasonic power and mechanical vibration force can be independently and precisely adjusted, enabling flexible adaptation to the characteristics of different materials and wide application range.
5. Clean and hygienic, easy to operate: The fully sealed design ensures no dust leakage, low noise, easy cleaning and maintenance, and meets the production environment requirements of high-standard industries.

Product parameters

Production Line Diagram

Details presentation

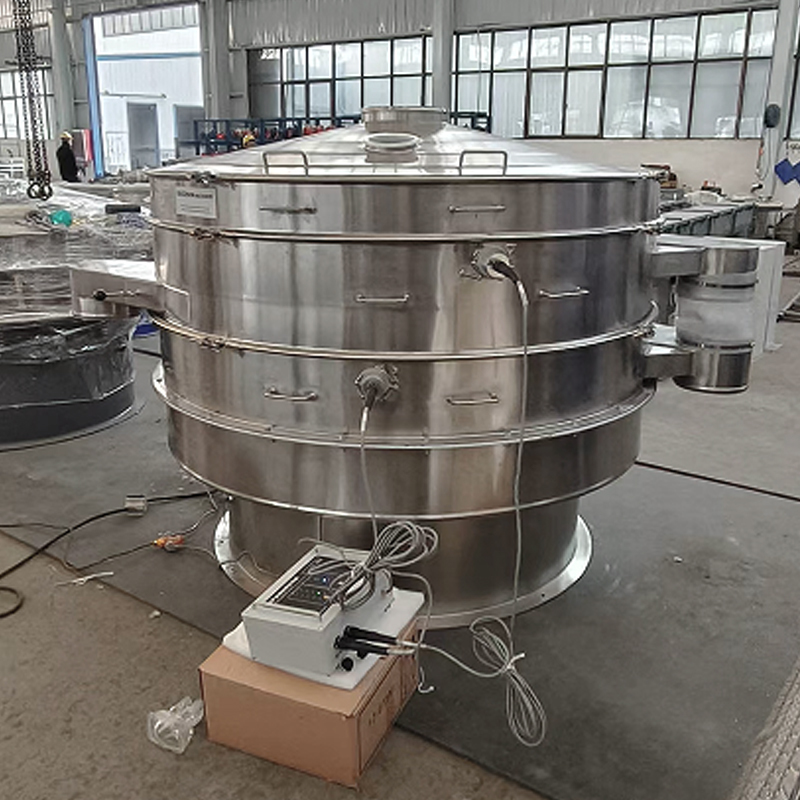

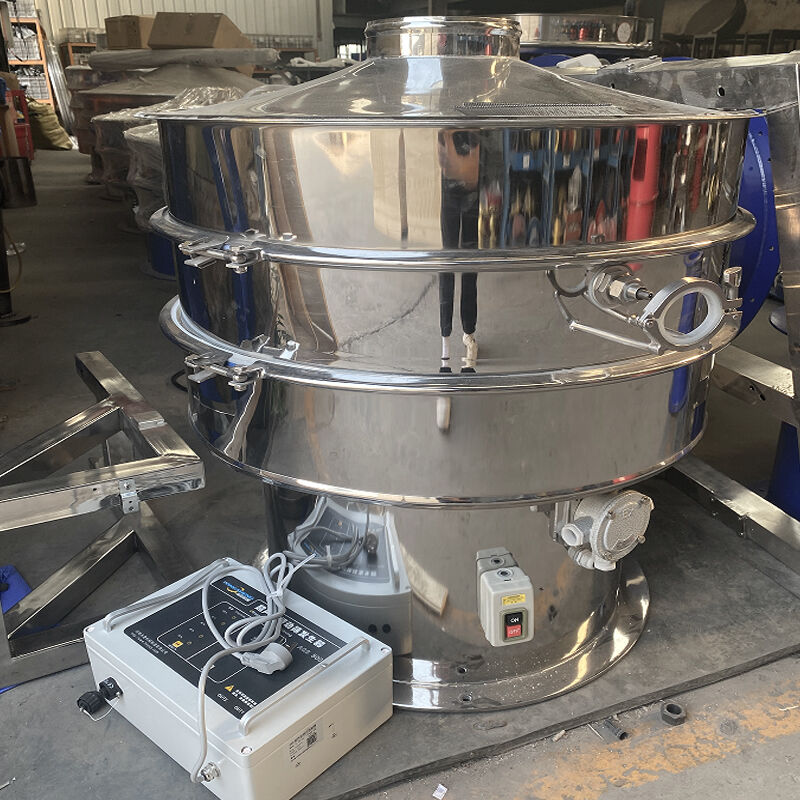

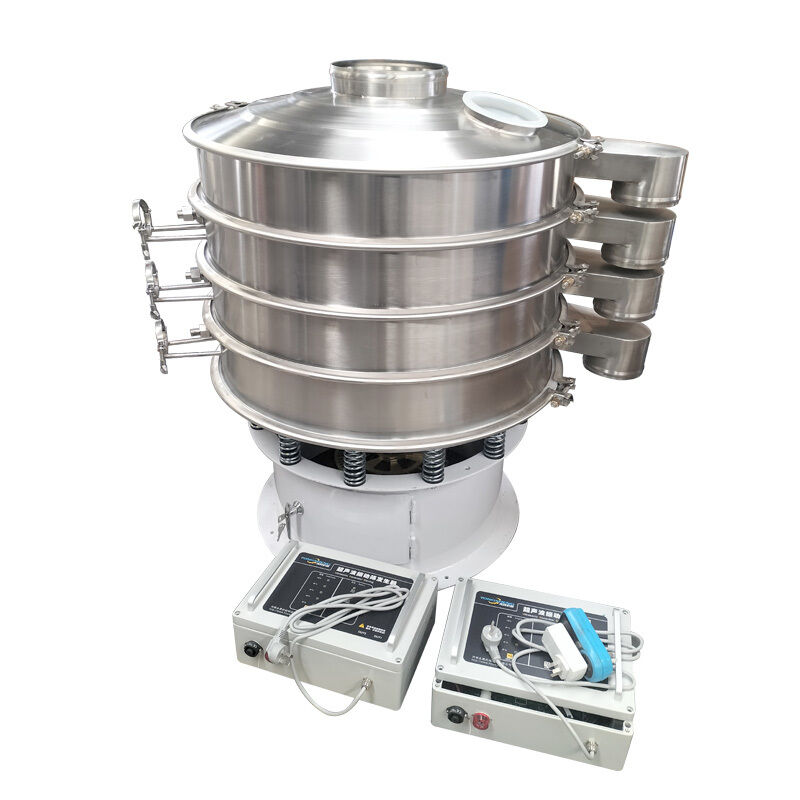

Product display

Applications:

The EXZS ultrasonic vibrating screen is a rotary vibrating screen with an ultrasonic system that allows for accurate and efficient sieving of materials. This makes it ideal for a wide range of applications and scenarios, including:

• Chemical industry: The ultrasonic vibrating sieve is perfect for screening and separating chemical powders and liquids, ensuring a high level of accuracy and efficiency.
• Pharmaceutical industry: With its ability to accurately and efficiently screen pharmaceutical powders and liquids, the ultrasonic sieving machine is an essential tool for any pharmaceutical manufacturer.
• Food industry: The EXZS ultrasonic vibrating screen is designed to efficiently and accurately screen food products, ensuring a high level of hygiene and safety.
• Mining industry: With its robust construction and high capacity, the ultrasonic vibrating sieve is ideal for screening and separating a wide range of mining materials, from coal to ores and minerals.

Packing and Shipping:

Product Packaging:

• The ultrasonic vibrating screen will be packed in a sturdy cardboard box.
• The box will be sealed with tape to prevent any damage during transit.
• The product will be accompanied by an instruction manual.

Shipping:

• The product will be shipped within 2 business days of receiving the order.
• We offer free shipping for this product within the United States.
• The estimated delivery time is 5-7 business days.
• We also offer international shipping for an additional fee.

Place your order today and take advantage of our competitive pricing and flexible payment terms, including T/T, Western Union, MoneyGram, and L/C. With a minimum order quantity of just 1 set and a supply ability of 5000 sets per year, you can trust EVERSUN to deliver the ultrasonic vibrating screen you need, when you need it. Our standard export wooden box ensures safe and secure delivery, with a delivery time of within 7-15 work days.
