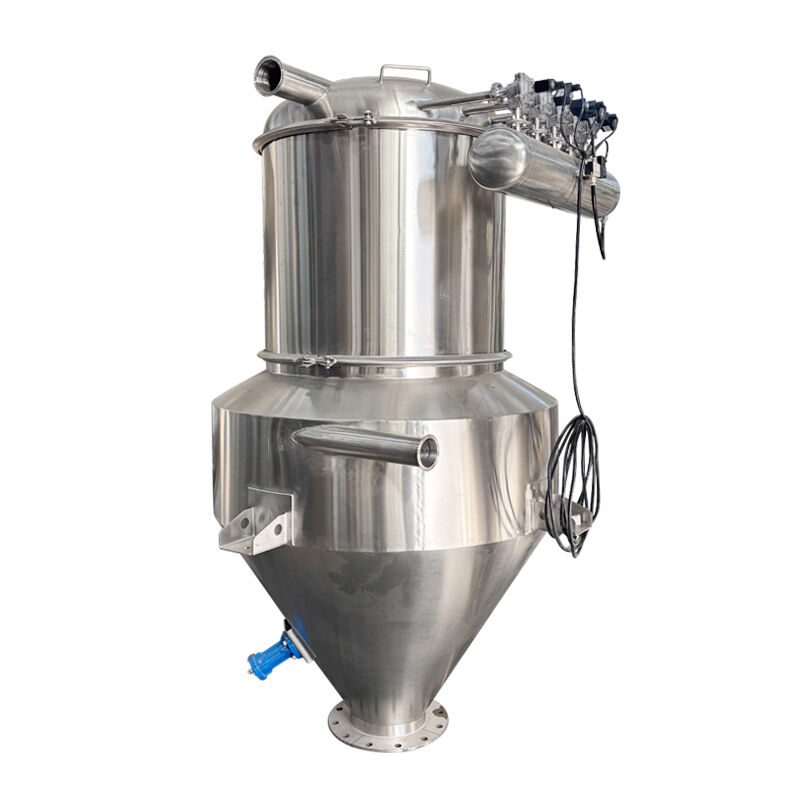

Vacuum Conveyor

Product description

The continuous vacuum feeding machine is an industrial equipment that enables efficient and automated transportation of powder and granular materials within a closed pipeline. It utilizes a continuous negative pressure airflow, which allows for stable and rapid material extraction from the supply point and subsequent transportation to designated containers or process points without interrupting the system operation. This equipment has a compact structure and operates in a fully enclosed manner, effectively preventing dust from escaping and avoiding cross-contamination. It significantly enhances the cleanliness of the production environment and the efficiency of continuous operations, making it a crucial device for achieving automated material transfer in modern production lines.

Working principle

This equipment creates a stable negative pressure airflow in the pipeline through a vacuum pump, causing the material to be sucked into the separation container. Subsequently, the system automatically switches to a pressure relief state, and the material is discharged under the force of gravity. The two stages of material suction and discharge are alternately cycled through the automatic valve control system, thereby achieving continuous and sealed material transportation.

Product features

Features:
Full closed-pipe transportation: The materials run throughout in enclosed pipes and containers.
Continuous cyclic operation: The processes of suction, separation, discharging, and cleaning are automatically cycled and uninterrupted.
Automatic control: Utilizes PLC or intelligent control systems to achieve automated operation.
Modular design: Compact structure, easy to integrate into existing production lines.

Core advantages:
High-efficiency dust prevention: Prevent dust from spilling out, significantly improve working environment, and reduce material loss.
Quality assurance: Avoid moisture and contamination of materials, ensuring product consistency and purity.
Efficiency enhancement: Achieve automated continuous feeding, reduce manual intervention, and increase production efficiency.
Safety and reliability: Reduce the risk of dust explosion, stable equipment operation, and simple maintenance.
Flexible adaptation: Suitable for various powder and granular materials, and can be customized for different distances and working conditions.

Model	Hopper Capacity(L)	Working pressure	Conveying Capacity(kg/h)	Compressed air consumption
QVC-1	1.1	0.4-0.6Mpa	50-300	180NL/min
QVC-2	6	0.4-0.6Mpa	100-700	360NL/min
QVC-3	12	0.4-0.6Mpa	300-1500	720NL/min
QVC-4	42	0.4-0.6Mpa	600-3000	1440NL/min
QVC-5	60	0.4-0.6Mpa	900-6000	2880NL/min

Product details

Production line diagram

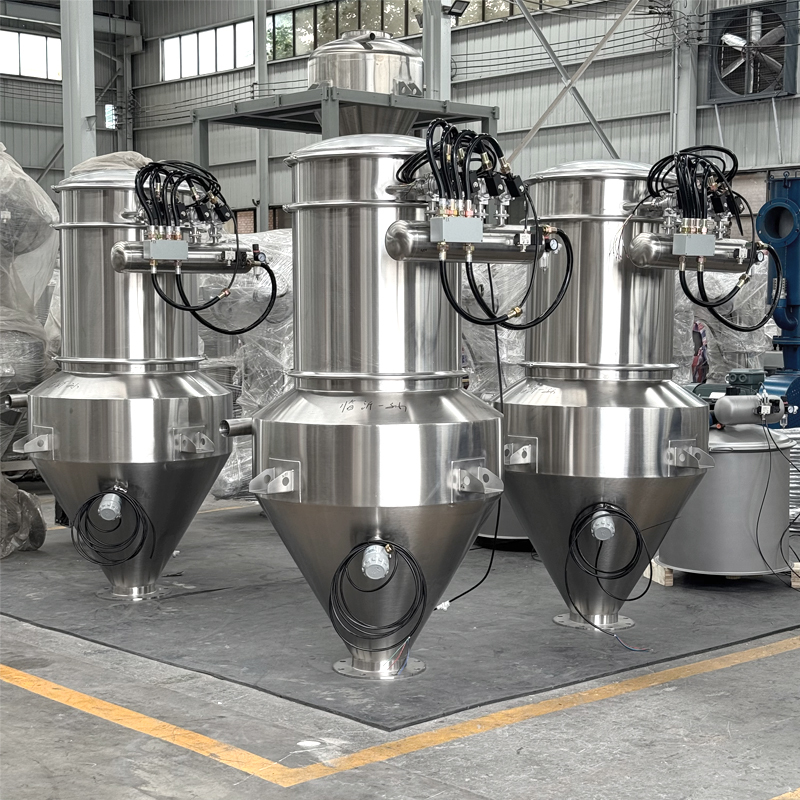

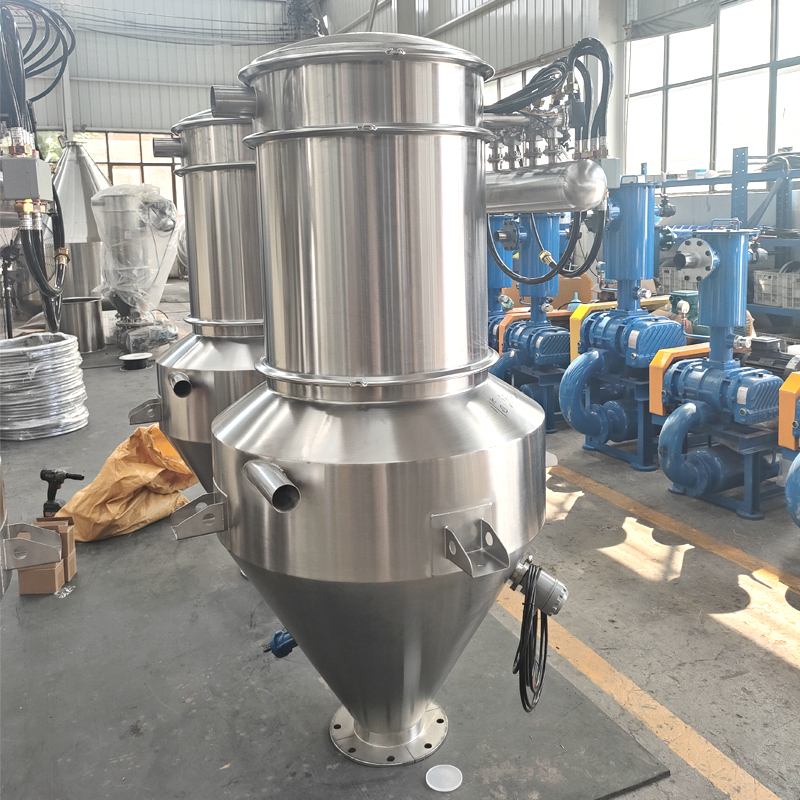

Product shows

Application

Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,

chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
