Vacuum Conveyor

Product description

The continuous vacuum feeding machine is an efficient and automated conveying equipment specially designed for powders, particles and small-sized materials. It utilizes the principle of negative pressure vacuum to achieve dust-free, continuous and stable material transportation from one or more feeding points to the designated silos or processing equipment within a sealed pipeline. This equipment has a compact structure and is easy to clean, effectively preventing material cross-contamination and external dust leakage. It is widely used in industries such as food, chemical engineering and new energy, significantly enhancing the automation level of production lines and the safety of the working environment.

Working principle

The working principle of the continuous vacuum feeding machine is to utilize the vacuum pump to generate negative pressure in the sealed separator, thereby sucking in the mixture of the material and air and achieving gas-solid separation through the filtration system. When the preset conditions are met, the system automatically cuts off the vacuum and introduces reverse blowing compressed air for vacuum breaking and filter element cleaning. At the same time, the bottom discharge valve is opened to allow the material to be discharged under the force of gravity.

Product features

Features:
Full closed-pipe transportation: The materials run throughout in enclosed pipes and containers.
Continuous cyclic operation: The processes of suction, separation, discharging, and cleaning are automatically cycled and uninterrupted.
Automatic control: Utilizes PLC or intelligent control systems to achieve automated operation.
Modular design: Compact structure, easy to integrate into existing production lines.

Model	Hopper Capacity(L)	Working pressure	Conveying Capacity(kg/h)	Compressed air consumption
QVC-1	1.1	0.4-0.6Mpa	50-300	180NL/min
QVC-2	6	0.4-0.6Mpa	100-700	360NL/min
QVC-3	12	0.4-0.6Mpa	300-1500	720NL/min
QVC-4	42	0.4-0.6Mpa	600-3000	1440NL/min
QVC-5	60	0.4-0.6Mpa	900-6000	2880NL/min

Product details

Production line diagram

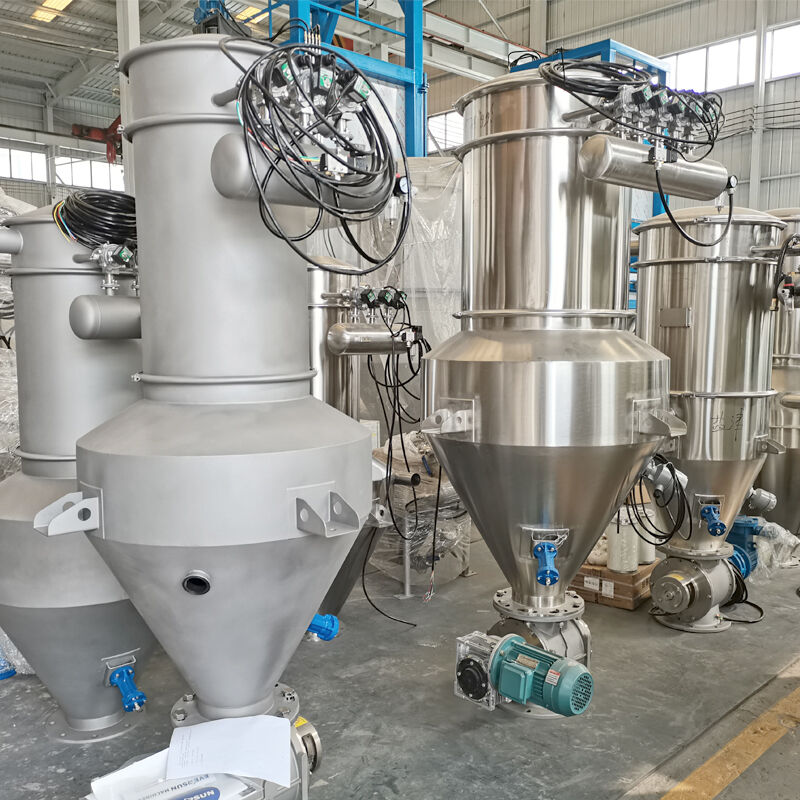

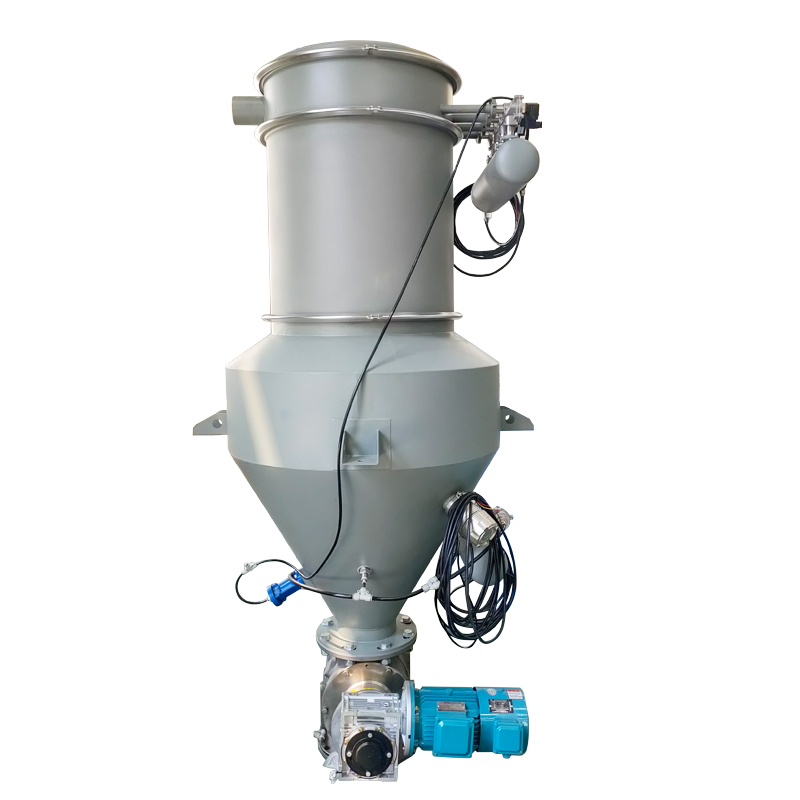

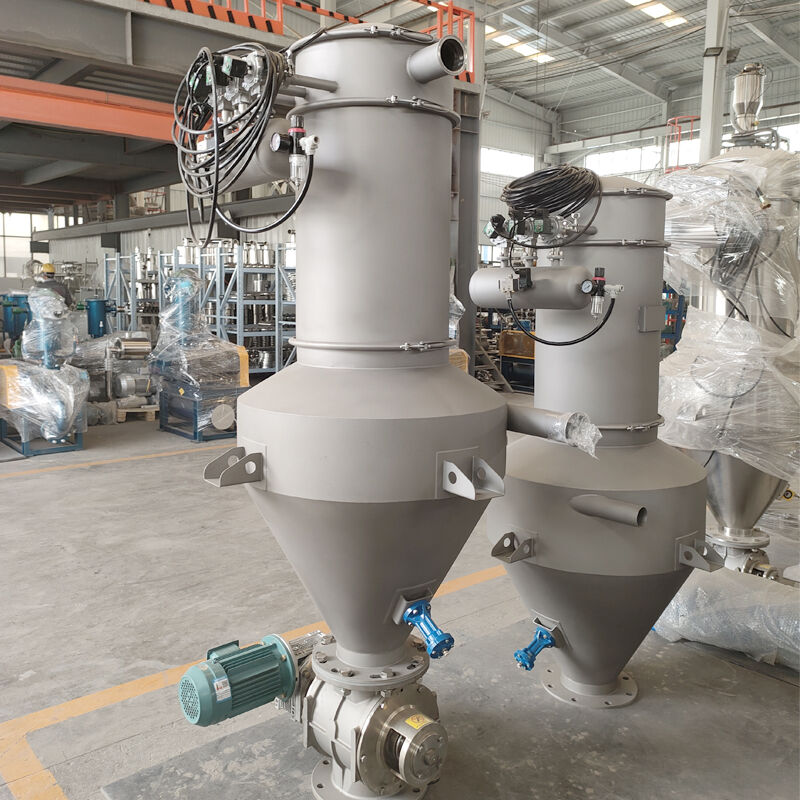

Product shows

Application

Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,

chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
