Bulk Bag Unloader

Product description

The closed-ton-bag unloading station is an environmentally friendly equipment specifically designed for unloading ton-bag materials. It adopts a fully enclosed structure design, which can effectively prevent dust from leaking during unloading, ensuring the cleanliness and safety of the working environment. The equipment has a compact structure and is easy to operate, significantly improving the unloading efficiency and greatly reducing the labor intensity of manual work. It is widely used in industries such as chemical engineering and food processing, and is an important device for achieving dust-free and automated unloading of powder and granular materials.

Working principle

The closed-ton-bag unloading station is a specialized and environmentally friendly equipment designed for unloading ton-bag materials. Its core design lies in the fully enclosed structure, which can effectively prevent dust from escaping and ensure the cleanliness and safety of the working environment.

The working principle of this equipment can be summarized as: closed suspension, active breaking of the arch, negative pressure dust collection, and controllable unloading. Firstly, the ton-bag is suspended and tightly clamped at the unloading port; then, through vibration or tapping devices, the material flows are promoted to prevent arching; while the material is being discharged by gravity, the built-in dust collection system immediately starts and forms a micro-negative pressure environment, efficiently collecting the raised dust; finally, the material is stably conveyed to the downstream process through the feeding device at the bottom. The entire process is compact in structure and easy to operate, significantly improving the unloading efficiency and reducing labor intensity. It is a key device for achieving dust-free and automated unloading of powder and granular materials in industries such as chemical, food, etc.

Features & Benefits

Main features:
1. Completely sealed structure: Prevents dust from escaping at the source.
2. Modular design: Compact structure, easy to install and maintain, flexible configuration.
3. Function integration: Integrates suspension, disintegration, dust removal, and feeding.
4. Safe and reliable: Equipped with protection and explosion-proof devices to ensure safety.
5. Simple operation: Convenient bag hanging, quick bag replacement, reduces labor intensity.
Core advantages:
1. Environmentally friendly and highly efficient: High dust collection efficiency, meeting strict environmental protection requirements.
2. Protecting health: Preventing material contamination and safeguarding personnel's occupational health.
3. Enhancing efficiency: Smooth unloading without residue, improving production rhythm and stability.
4. Reducing costs: Reducing material loss, saving cleaning and maintenance costs.
5. Widely applicable: Suitable for various powder and granular materials and numerous industry sectors.

Bag size application	1000x1000x1600 mm
Power Source	AC 380 v ± 5%50 Hz
Air source pressure	≥ 0.6MPa
Air consumption	≤ 0.6 m ³/min
wind volume for dust-removal	800-2500m3/h
Environment humidity	-100C-400C
Cutting capacity	10-20 bags/h (manual)

Detail display

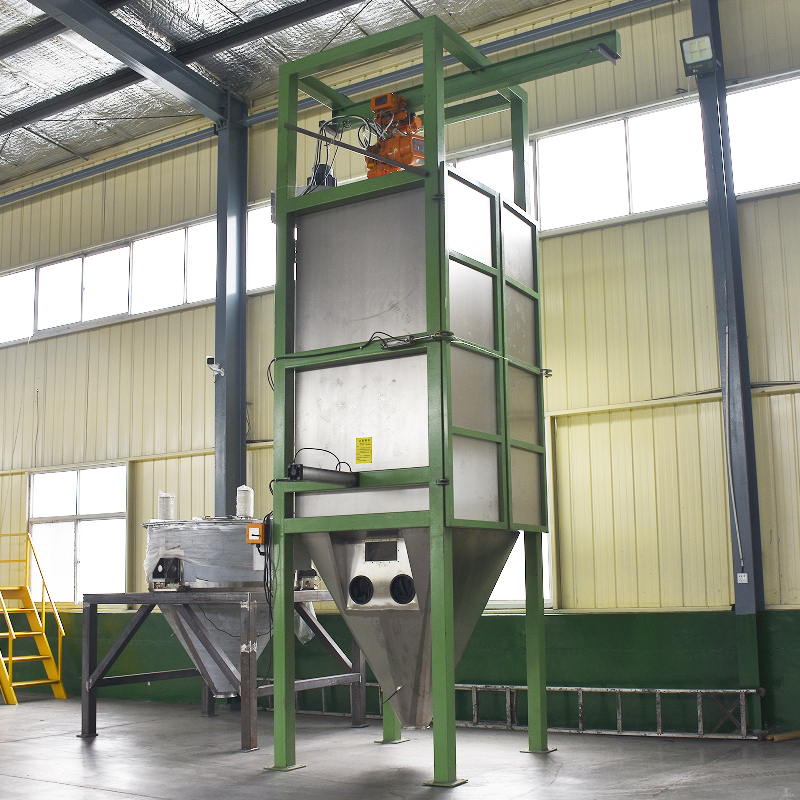

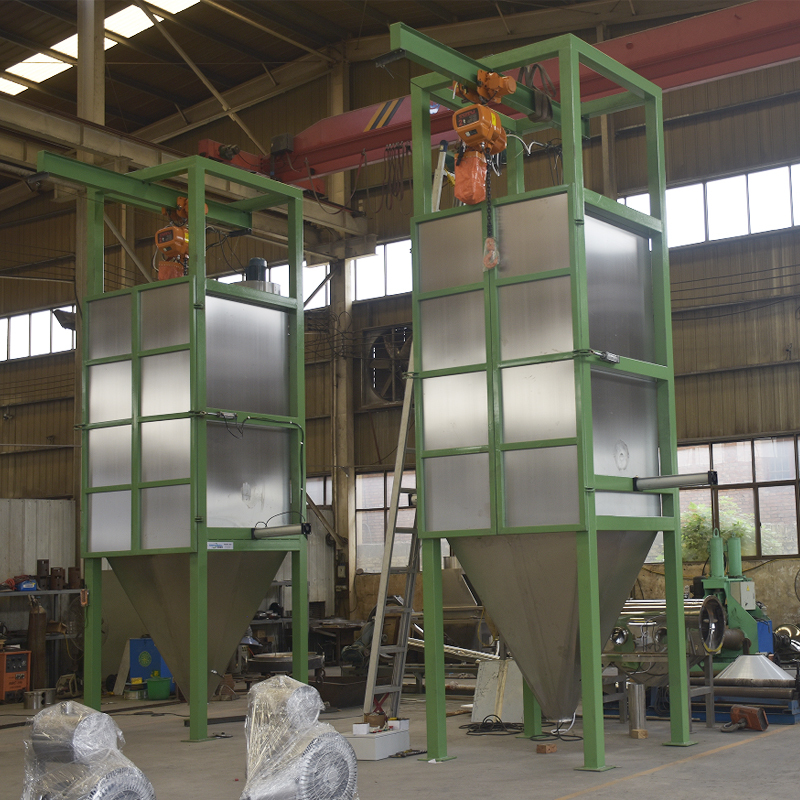

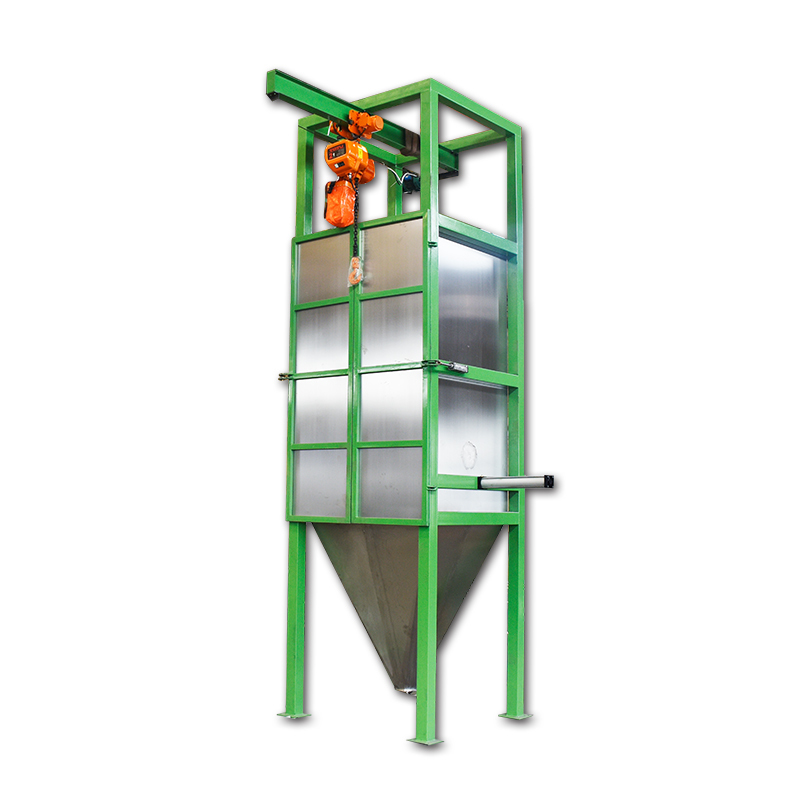

Product Shows

Application

The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food, medicine, and chemicals for unpacking and discharging bags of dry powders and granular materials, such as plastic resins and food additives.
