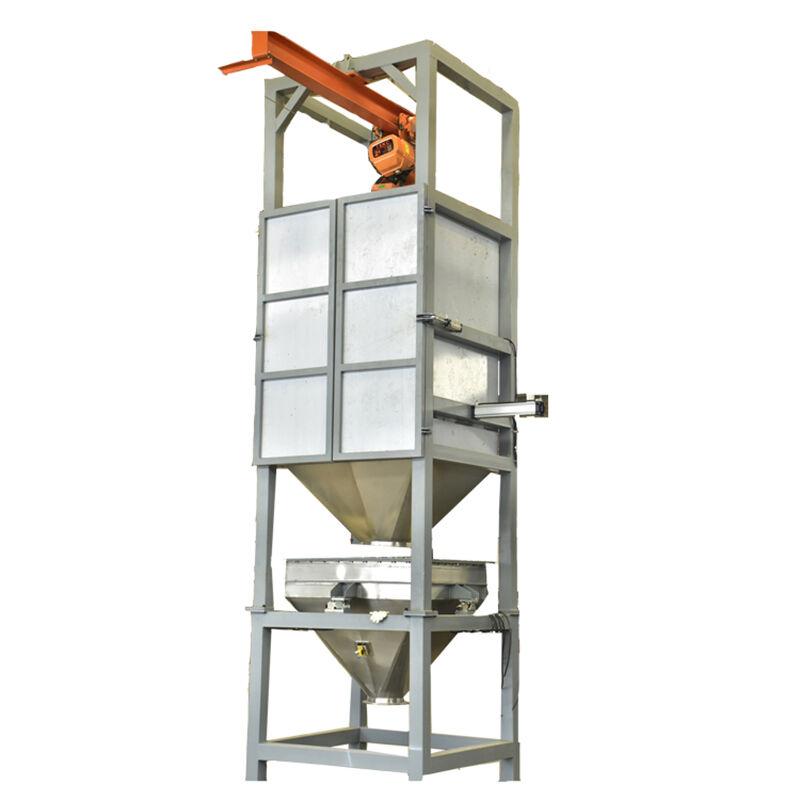

Bulk Bag Unloader

Product description

The sealed ton bag feeding station is a fully automatic bag-opening and unloading equipment specifically designed for ton bags containing materials. It adopts a fully enclosed structure and integrates material lifting, dust-free bag opening, and efficient dust removal systems, completely solving the problems of dust pollution and high labor intensity caused by traditional manual bag opening. This equipment complies with environmental protection and GMP standards, has a compact structure and customizable materials, and is widely used in the chemical and food industries. It is an ideal choice for achieving automated and clean feeding of powder and granular materials.

Working principle

After the ton bags are lifted and positioned, their discharge ports are introduced into a sealed chamber and sealed tightly. Subsequently, the bag openings are loosened, and the materials fall into the lower hopper under the force of gravity. During this process, the built-in dust removal system operates simultaneously to maintain negative pressure inside the chamber to prevent dust from spilling out. For materials with poor fluidity, the equipment will activate vibration or tapping devices to assist in discharging, preventing bridging. Finally, the materials are automatically sent to the next process through the bottom-connected conveying equipment, completing a dust-free and efficient unloading operation.

Features & Benefits

Main features:
1. Completely sealed structure: Prevents dust from escaping at the source.
2. Modular design: Compact structure, easy to install and maintain, flexible configuration.
3. Function integration: Integrates suspension, disintegration, dust removal, and feeding.
4. Safe and reliable: Equipped with protection and explosion-proof devices to ensure safety.
5. Simple operation: Convenient bag hanging, quick bag replacement, reduces labor intensity.

Bag size application	1000x1000x1600 mm
Power Source	AC 380 v ± 5%50 Hz
Air source pressure	≥ 0.6MPa
Air consumption	≤ 0.6 m ³/min
wind volume for dust-removal	800-2500m3/h
Environment humidity	-100C-400C
Cutting capacity	10-20 bags/h (manual)

Detail display

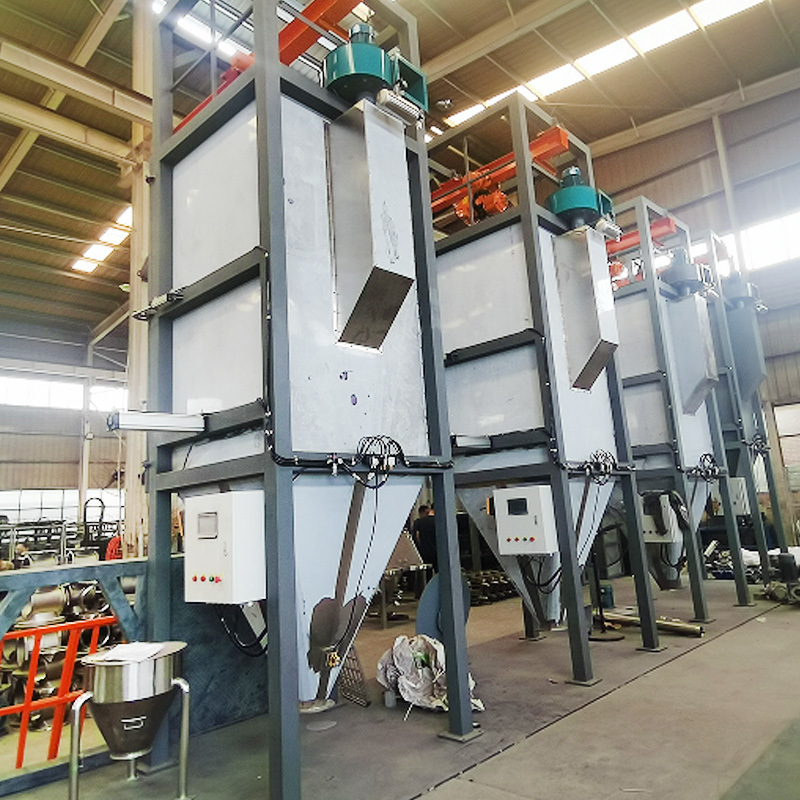

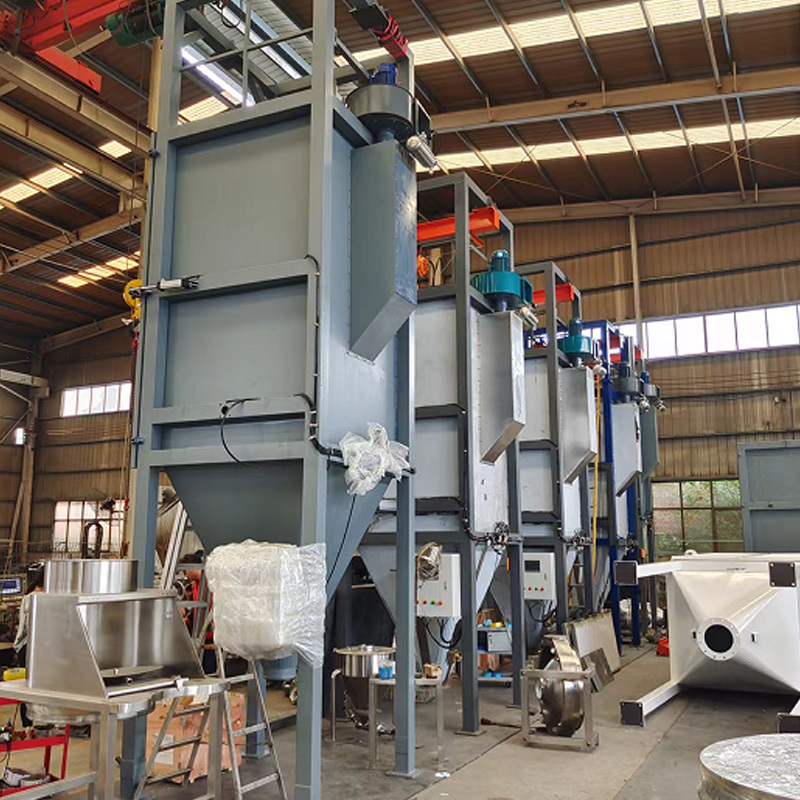

Product Shows

Application

The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food, medicine, and chemicals for unpacking and discharging bags of dry powders and granular materials, such as plastic resins and food additives.
