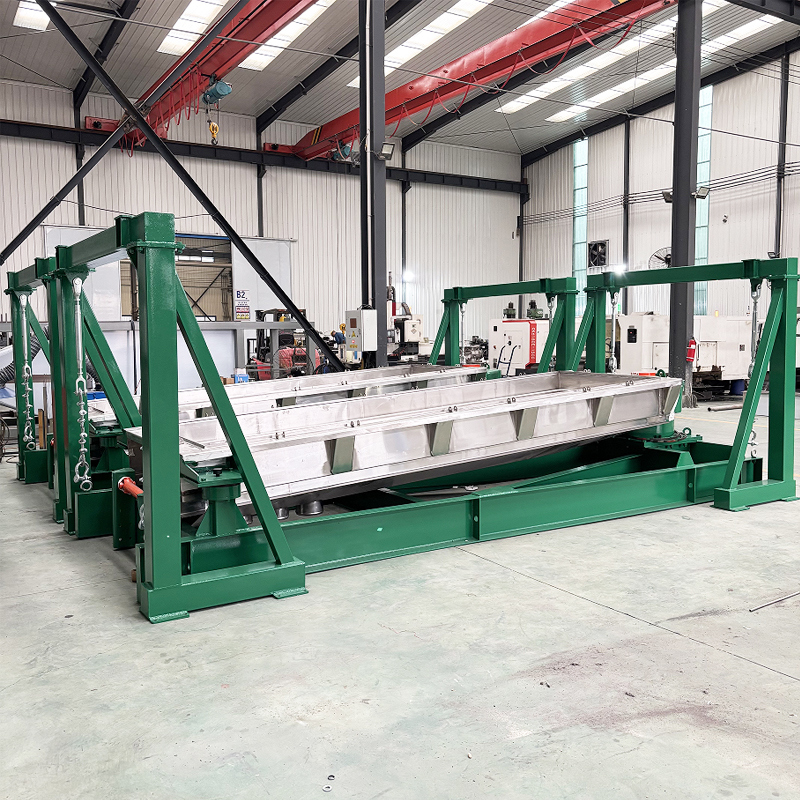

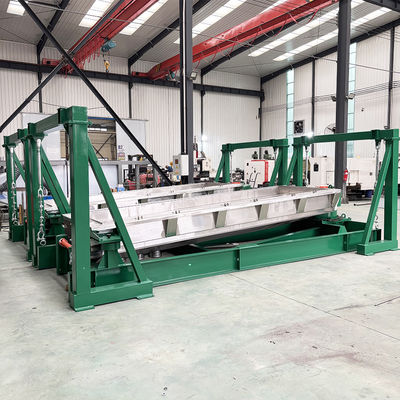

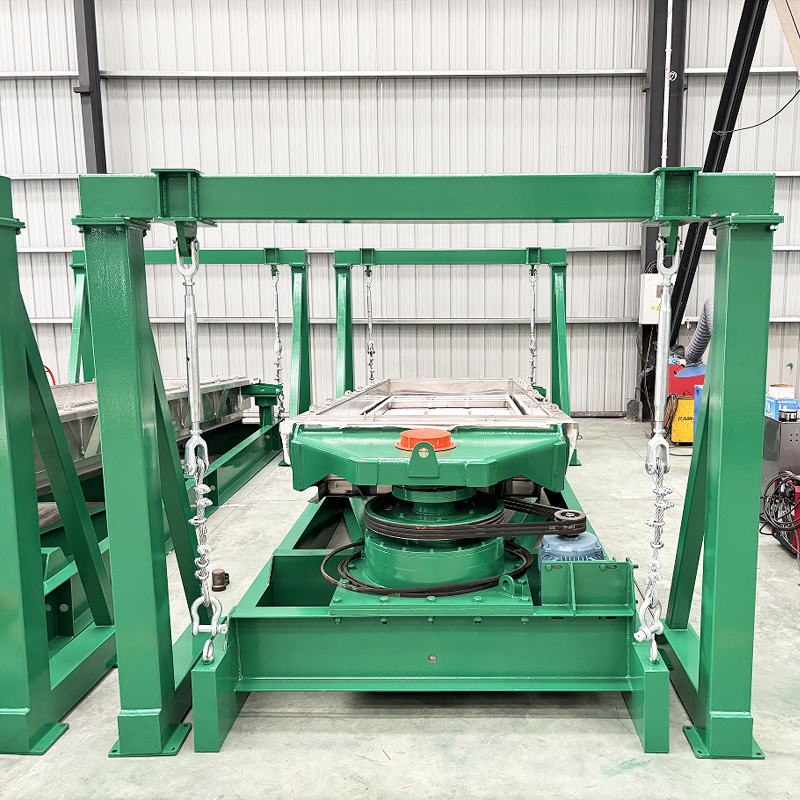

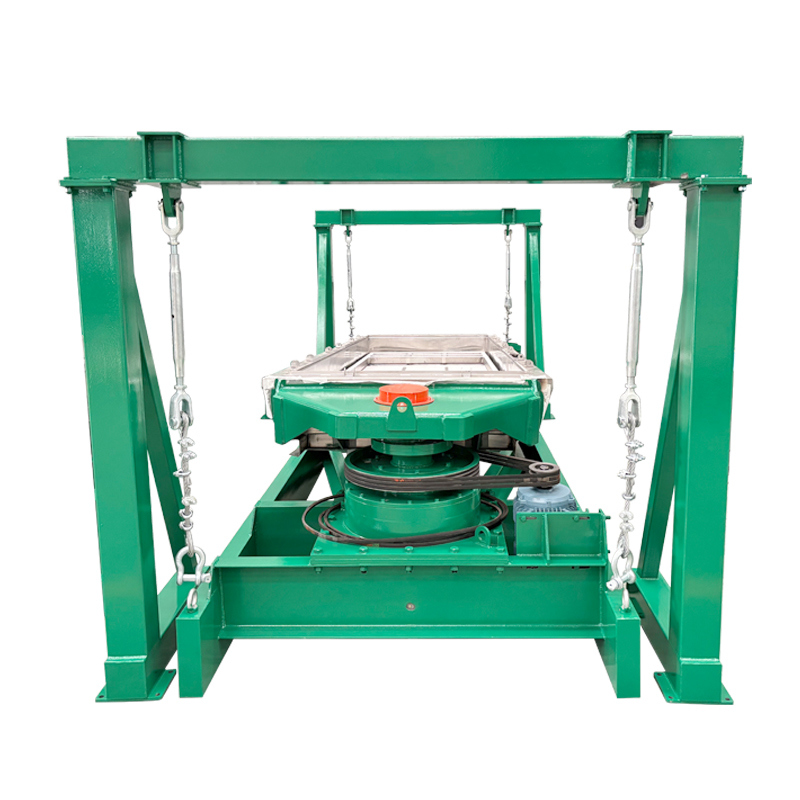

Gyratory Vibrating Screen

Product description

The flat rotary screen is a highly efficient and precise screening equipment. It features a horizontally installed circular screen mesh that generates a smooth near-horizontal rotary motion during operation, which can handle materials gently and effectively prevent dust from flying. This equipment has high screening accuracy and low noise, and is particularly suitable for screening, impurity removal and classification of granular, powdered materials with good fluidity and slightly damp materials. It is widely used in the food, chemical, metallurgical and other industries.


Working principle
The power source of the planar cyclone sieve comes from the vibration motor installed vertically at the center of the sieve box. When the motor rotates, the eccentric weights at its upper and lower ends generate a combined excitation force, driving the sieve body to perform a horizontal circular reciprocating motion around its axis on the horizontal plane. The materials on the sieve surface are affected by this motion and move along the surface of the sieve screen in a continuous spiral diffusion trajectory. Particles smaller than the sieve hole diameter can then pass through the sieve, thereby achieving efficient and precise classification or screening.

Product Features

1. High screening accuracy: The smooth circular motion enables the materials to be fully dispersed, resulting in a high screening rate and effectively ensuring the screening accuracy and efficiency.
2. Does not damage the materials: The nearly horizontal gentle screening motion has almost no vertical impact, making it particularly suitable for fragile, crystalline or materials with special coatings.
3. Anti-blockage design: The unique circular motion helps the materials automatically disperse and clean the screen mesh, significantly reducing the probability of screen holes getting blocked.
4. Sealed and environmentally friendly: The fully enclosed structure design can effectively prevent dust leakage, meeting the requirements of clean production and environmental protection.
5. Smooth operation: The stable movement trajectory, low noise, and low requirements for the equipment foundation and floor dynamic load make installation simple.
6. Easy maintenance: The simple structure design, quick and convenient replacement of the screen mesh, greatly reduces the daily maintenance workload and cost.

Product parameter
