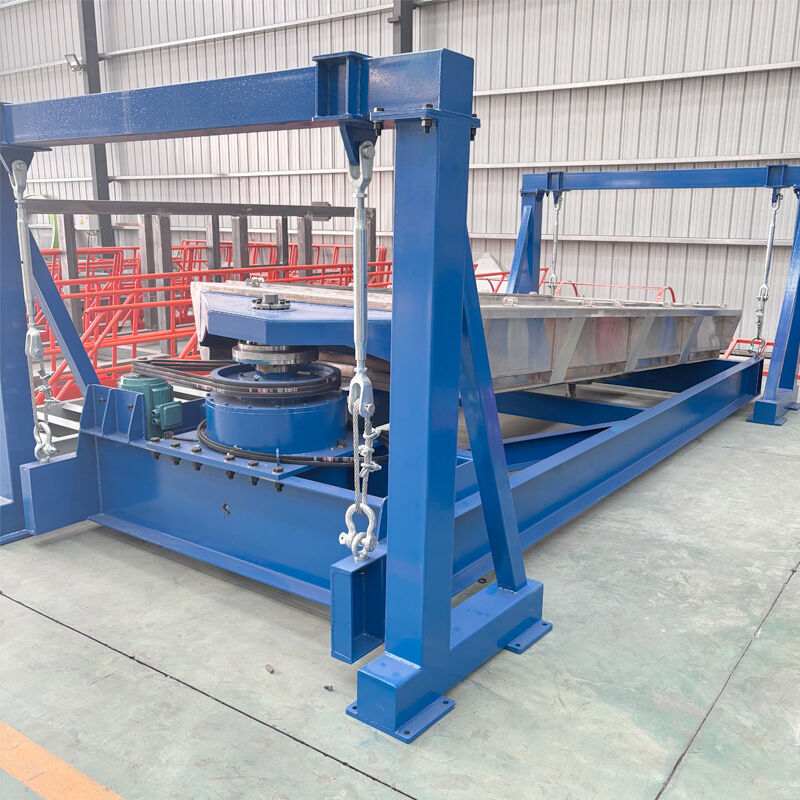

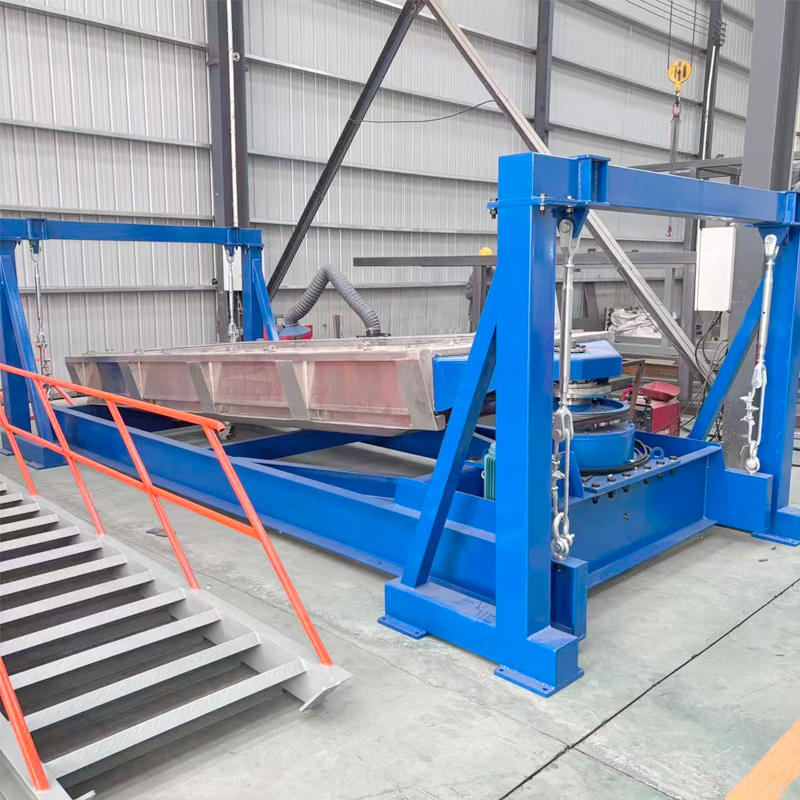

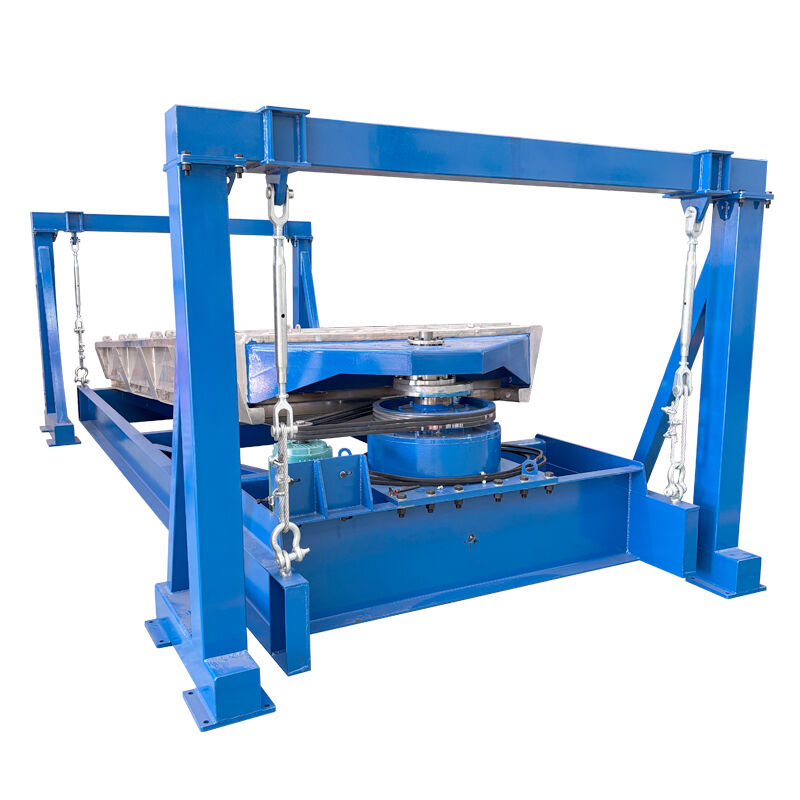

Gyratory Vibrating Screen

Product description

The planar cyclone screen is an efficient equipment that performs screening through horizontal cyclone motion. It has a compact structure, stable operation, and low noise, effectively preventing screen blockage. It is particularly suitable for the fine classification of fragile, damp or light-weight materials. This equipment can achieve the separation of multiple particle sizes simultaneously through multiple layers of screens, featuring high screening accuracy, large processing capacity, good sealing performance, and easy maintenance. It is widely used in industries such as food, chemical, and metallurgy.


Working principle
When the equipment is started, the drive mechanism drives the entire sieve box to perform a smooth circular rotation. The materials placed on the sieve mesh move along with it. Under the combined effect of centrifugal inertial force, frictional force of the sieve surface, and the self-weight, the material particles move orderly along the spiral path from the center to the edge of the sieve surface. During this process, the fine particles with qualified sizes obtain sufficient opportunities for sieving due to continuous rolling and scattering, and quickly pass through the sieve holes to complete the separation; the unqualified coarse particles are transported along the spiral path to the discharge outlet at the edge of the sieve surface. This unique movement pattern realizes the uniform dispersion and gentle sieving of the materials on the sieve surface.

Product Features

1. Efficient and precise screening: The material undergoes spiral movement, and the screening process is thorough, achieving excellent precision and output.
2. Smooth and quiet operation: The horizontal rotary load is small, and it has a weak impact on the foundation, resulting in low noise.
3. Excellent anti-blocking performance: The continuous sliding of the material has a self-cleaning effect, and it is adept at handling sticky and wet materials.
4. Protection of material form: The movement is gentle, which can reduce the damage to fragile or crystalline materials.
5. Multi-layer synchronous classification: It can complete the separation of multiple particle sizes in one step, with a compact process.
6. Good sealing and environmental protection: It is easy to achieve full sealing, effectively controlling the dispersion of dust.
7. Durable, easy to maintain: The structure is reliable, wear is uniform, and the service life is long.

Product parameter
