Bulk Bag Unloader

Product description

The open-type ton bag unloading station is a piece of equipment for handling ton bag-packed materials. Its core function is to unload powder particles in industries such as chemicals and building materials.
It fixes the ton package with a bracket, and manually or mechanically opens the bag opening. The materials fall into the lower hopper by gravity. Some are equipped with vibration devices to prevent blockage. The structure is simple and the cost is low. It is suitable for scenarios without strict dust prevention requirements, but it needs to be combined with dust removal equipment to reduce dust dispersion and ensure the working environment.

Working principle

The open-type ton bag unloading station operates based on the core principles of gravity unloading and auxiliary anti-blockage. During operation, the ton bag is first lifted and fixed above the unloading port by the top lifting device or support. Then, the bottom discharge port of the ton bag is manually opened to allow the powder and granular materials to fall naturally into the receiving hopper below. In case of material agglomeration or bridging, the vibration device on the outside of the hopper will be activated to vibrate and break the agglomeration to ensure smooth unloading. Finally, the materials enter the subsequent conveying or processing stages through the outlet of the hopper. The overall structure is simple and suitable for scenarios without strict dust prevention requirements.

Features & Benefits

1. Convenient operation: Simple structure, semi-automatic/automatic operation, bag hanging and switch control can complete the task, significantly reducing labor intensity.
2. High efficiency: Can operate continuously, quickly complete bag opening and material discharge, reducing production downtime.
3. Good dust control: Equipped with ventilation and dust removal or sealed design, avoiding dust飞扬, improving working environment.
4. Material compatibility: Optional equipment such as tapping and vibrating devices can handle powdery materials that are prone to agglomeration and have poor fluidity.
5. Flexible connection: Can be connected with various equipment such as silos and conveyors, suitable for different production processes.
6. Safe adaptation: No heat generation, equipped with explosion-proof function, suitable for flammable and explosive materials.
7. Strong customization: Can be made of carbon steel or stainless steel, and additional functions such as crusher and weighing can be added.

Bag size application	1000x1000x1600 mm
Power Source	AC 380 v ± 5%50 Hz
Air source pressure	≥ 0.6MPa
Air consumption	≤ 0.6 m ³/min
wind volume for dust-removal	800-2500m3/h
Environment humidity	-100C-400C
Cutting capacity	10-20 bags/h (manual)

Detail display

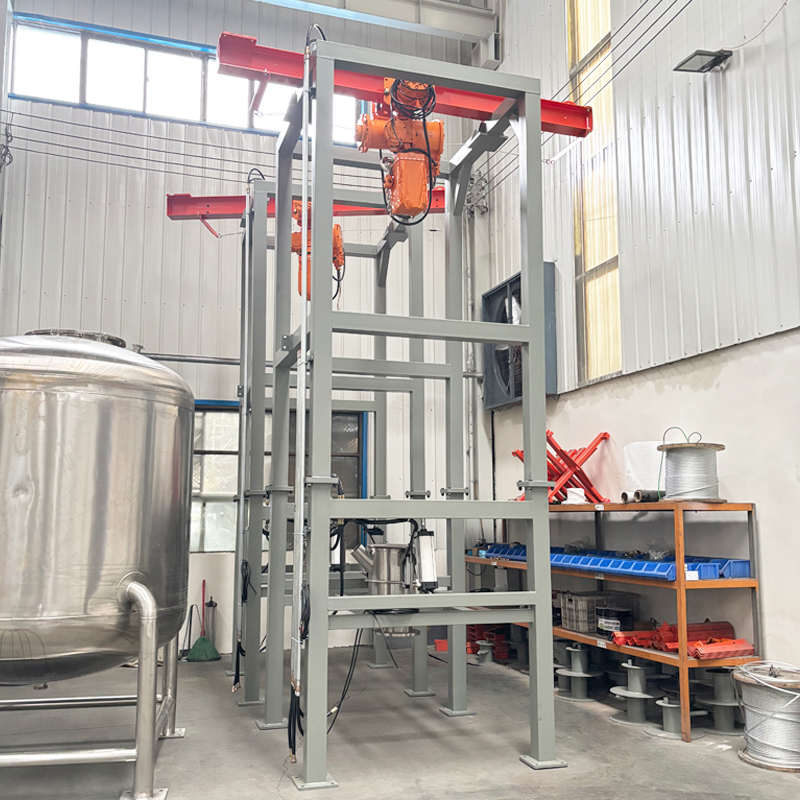

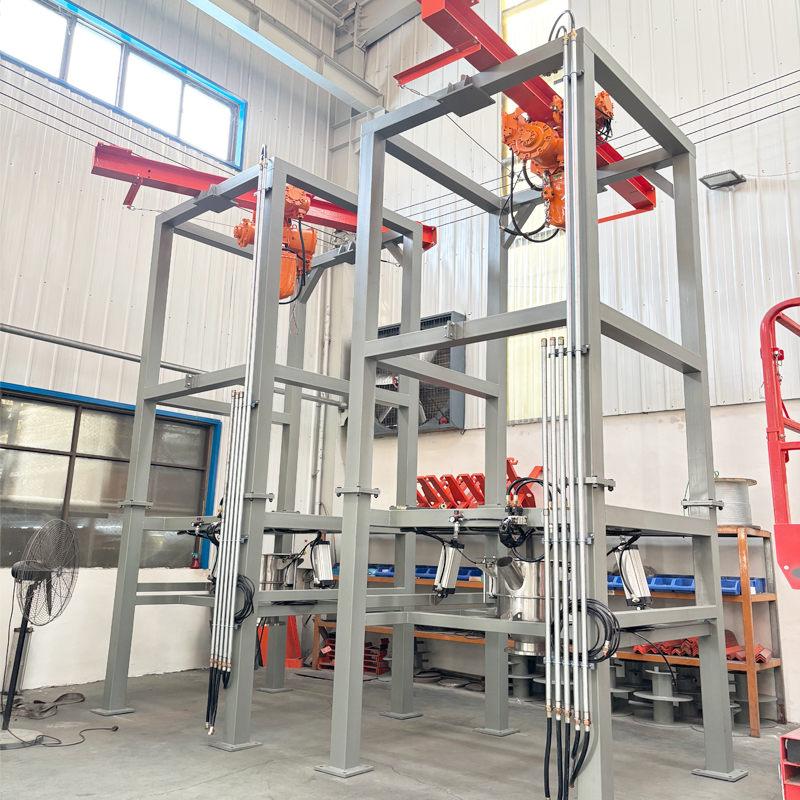

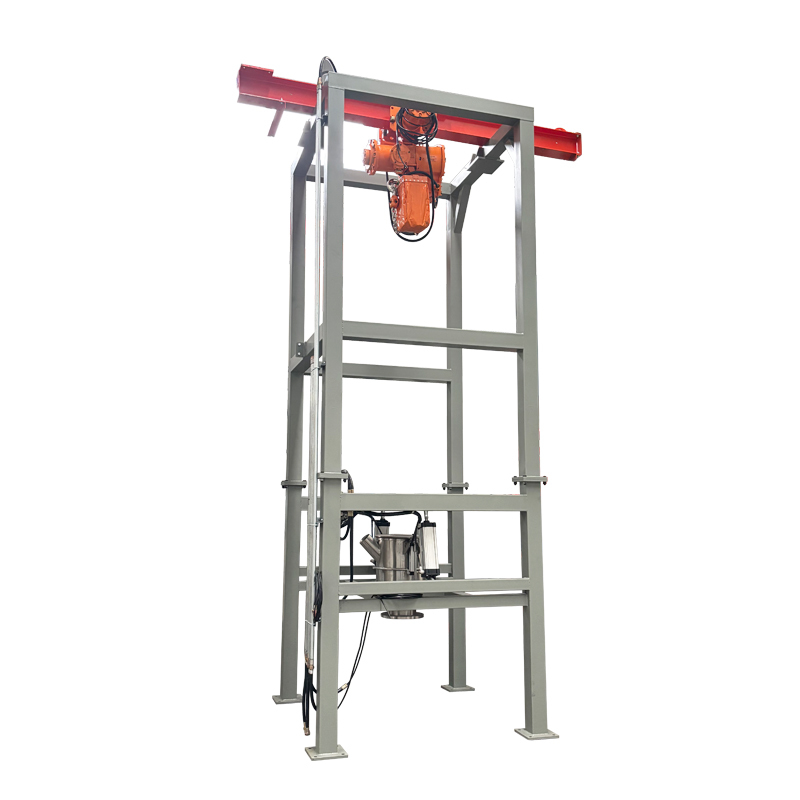

Product Shows

Application

The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food, medicine, and chemicals for unpacking and discharging bags of dry powders and granular materials, such as plastic resins and food additives.
