Bulk Bag Unloader

Product description

The dust-free feeding station is an industrial equipment designed for powder and granular materials, mainly addressing the issue of dust leakage in traditional feeding processes. It features a sealed structure combined with a dust collection device. After the materials are fed into the sealed bin, the dust is immediately collected, and the qualified materials are sent to the subsequent processes after screening. The equipment is easy to operate and clean, suitable for various types of materials and feeding volumes. It is widely used in industries such as food, medicine, and chemicals that require clean production and is a key equipment for dust-free and automated production.

Working principle
When the dust-free feeding station is in operation, materials are manually or mechanically fed into the storage tank through the sealed feeding port. The dust generated during the feeding process is quickly adsorbed by the pulse dust collector and other devices through negative pressure. The screening mechanism inside the tank removes impurities, and the qualified materials are sent to the subsequent process by the conveying device through the unloading assembly. The entire process is effectively dust-proof, achieving efficient and clean feeding.

Features & Benefits

1. Powerful dust prevention: Sealed container + dust removal device, preventing dust leakage at the source and maintaining environmental cleanliness.
2. Protecting health: Blocking dust dispersion, avoiding inhalation by personnel and reducing health risks.
3. Enhancing efficiency: Built-in screening mechanism, removing impurities simultaneously during feeding, reducing processes.
4. Wide applicability: Compatible with powder and granular materials, adjustable feeding volume, suitable for multiple clean industries.
5. Convenient operation and maintenance: Simple operation, easy cleaning and maintenance, reducing labor costs.

Product parameter

Production line diagram

1. Workers feed powder into the dumping station

2. Vacuum conveyor transfer the powder to the mixer

3. Starting mixing

Detail display

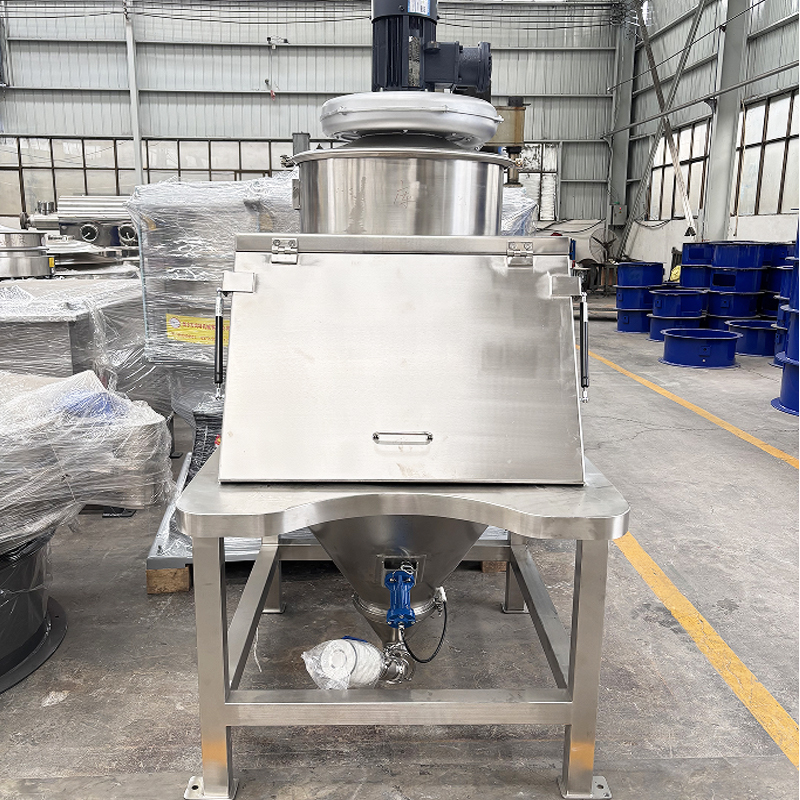

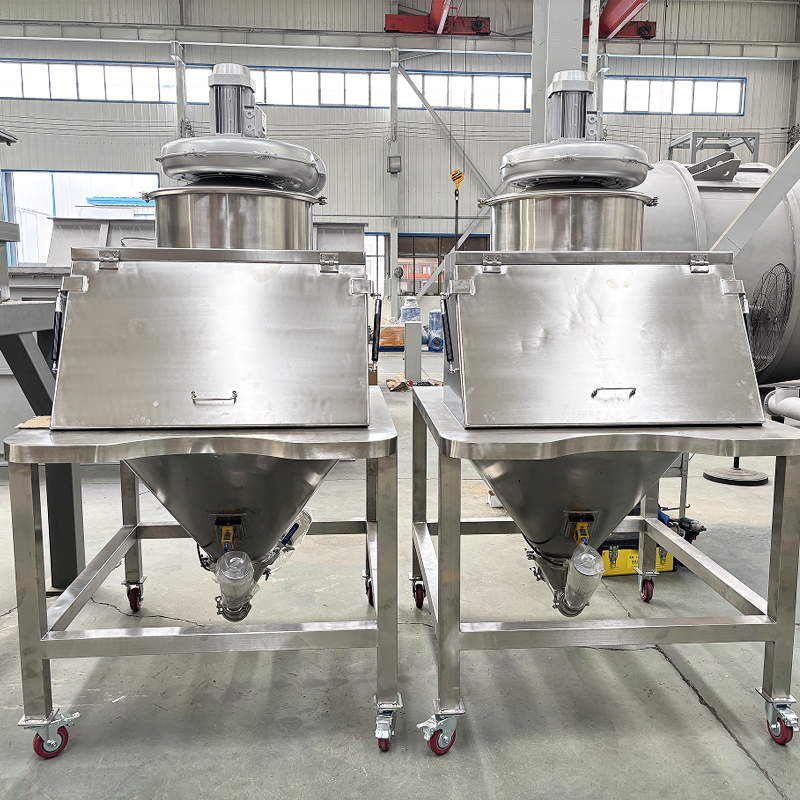

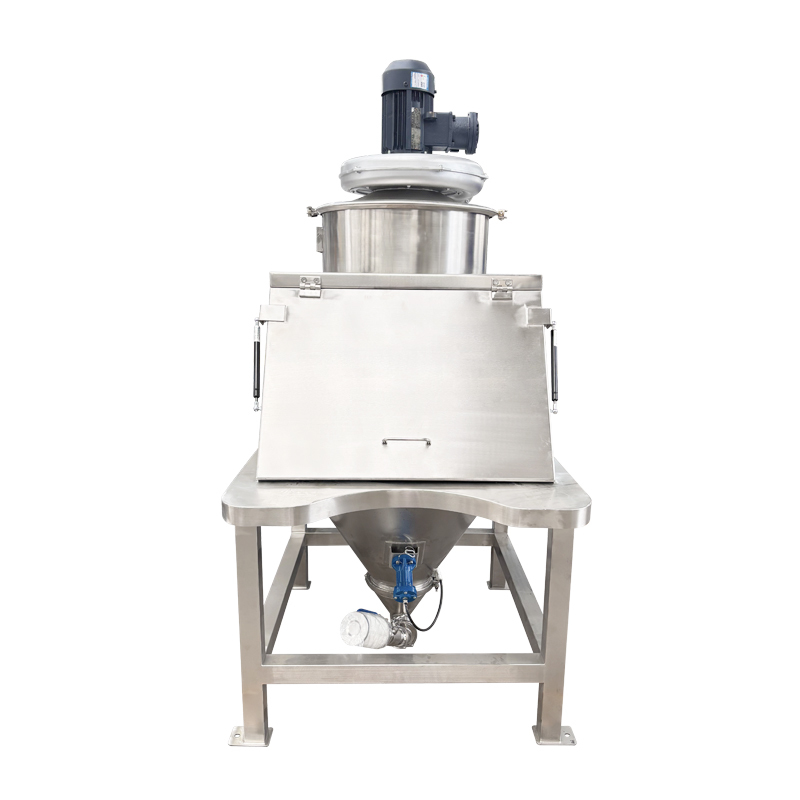

Product display

Application
