Bulk Bag Unloader

Product description

The open-type ton bag unloading station is a device used for unloading ton bag materials. Its overall structure is usually designed as an open frame, which is convenient for the hoisting and placement of ton bags. When unloading, the ton bags are suspended on the support, and the bottom unloading port is aligned with the lower receiving device. The bag opening can be opened manually or mechanically, and the materials can smoothly fall into the storage bin, conveying equipment, etc. by gravity. It features high unloading efficiency, convenient operation, and suitability for various granular or powdered materials. It is often used in the material transfer unloading scenarios of the chemical, grain, building materials and other industries.

Working principle

The open bulk bag unloading station lifts the bulk bags to the support by cranes. After the bottom unloading port is aligned with the receiving device, the bag opening is opened manually or mechanically. The materials fall into the equipment below by gravity. Vibrators are used to prevent cawing. After unloading is completed, the empty bags are lifted away. It is suitable for bulk material unloading in the chemical, grain and other industries.

Features & Benefits

Features of the open bulk bag unloading station:
- Open frame, convenient for loading and unloading ton bags
- Gravity discharge, equipped with a vibrator to prevent clogging
- The discharge port is compatible with a variety of receiving devices
- Simple structure and low maintenance cost
- It features high unloading efficiency and is suitable for batch operations

Bag size application	1000x1000x1600 mm
Power Source	AC 380 v ± 5%50 Hz
Air source pressure	≥ 0.6MPa
Air consumption	≤ 0.6 m ³/min
wind volume for dust-removal	800-2500m3/h
Environment humidity	-100C-400C
Cutting capacity	10-20 bags/h (manual)



























Detail display

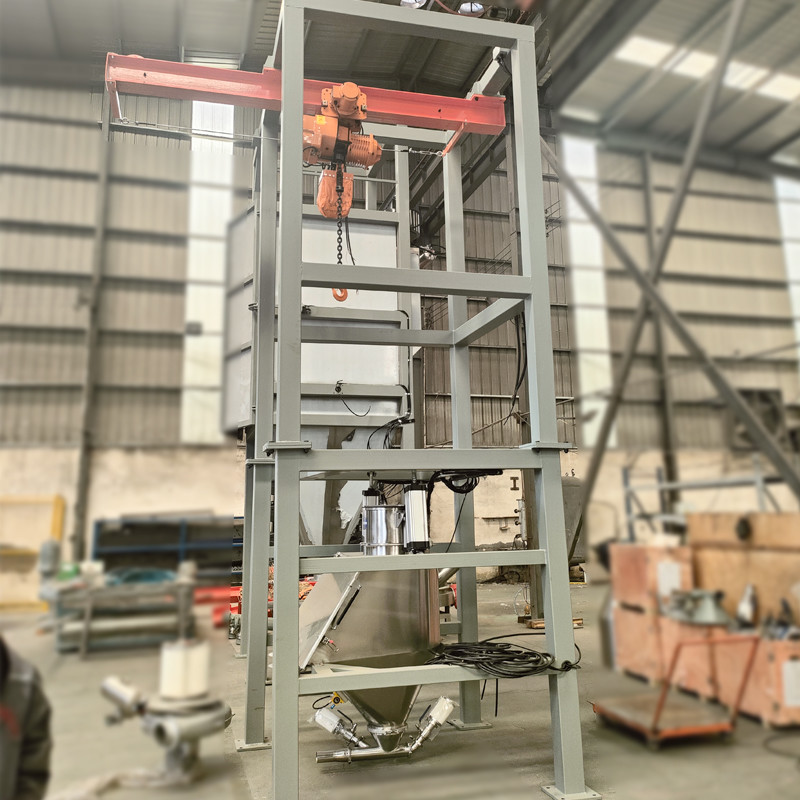

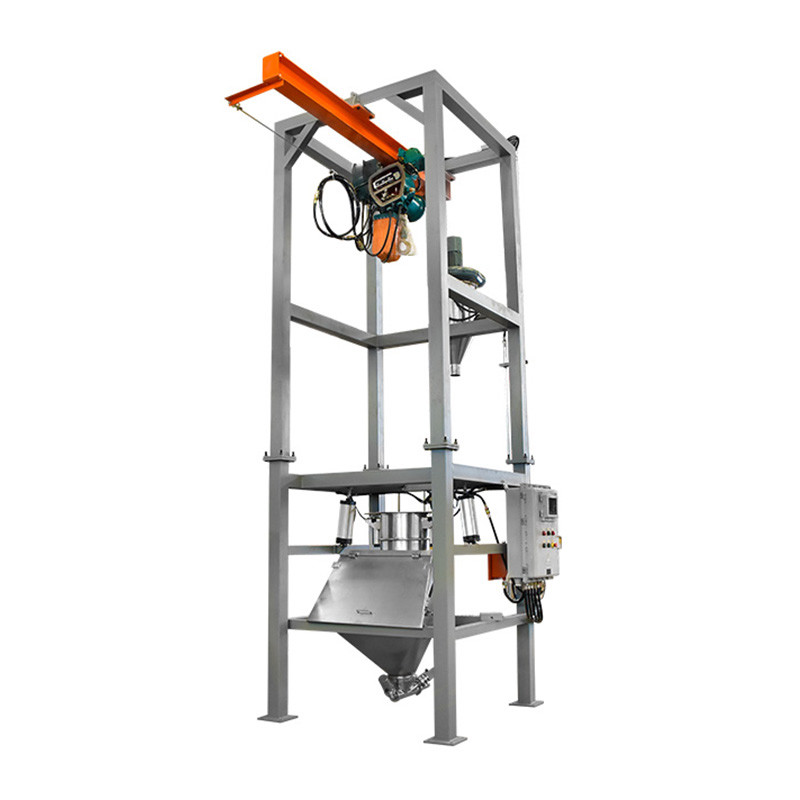

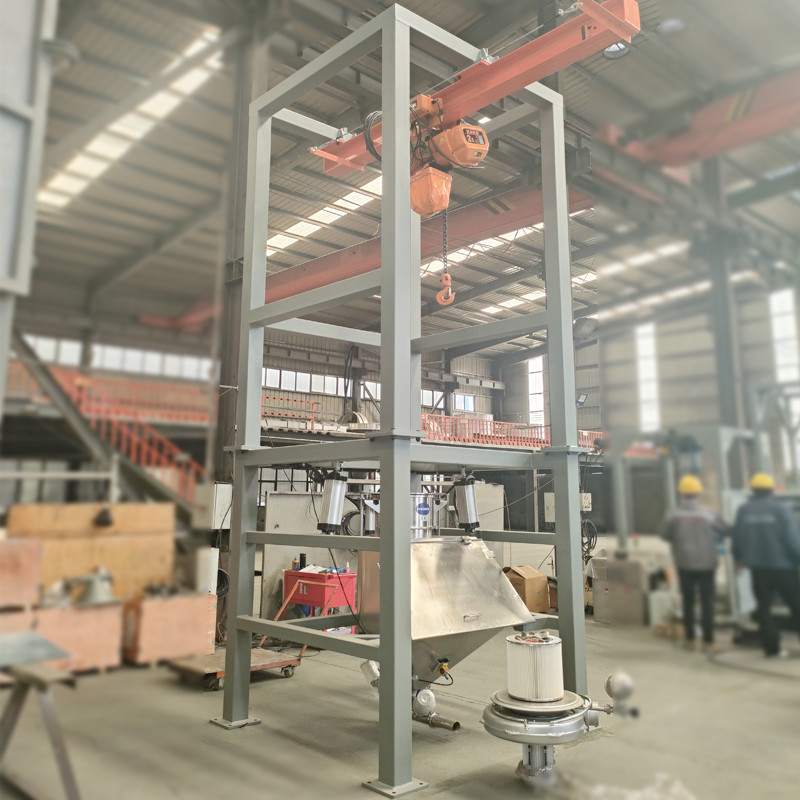

Product Shows

Application

The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food, medicine, and chemicals for unpacking and discharging bags of dry powders and granular materials, such as plastic resins and food additives.
