Bulk Bag Unloader

Product description

The open bulk bag unloading station, with its efficient and flexible design, has become a powerful assistant in industrial material handling. Its top hook can quickly lift tonnage packages. Through the vibration device, the material lumps are broken down. Combined with the rotating discharge port, uniform discharge is achieved, significantly improving the operation efficiency. The open structure saves space, is suitable for granular and powdered materials in multiple industries, and has strong compatibility. Meanwhile, the built-in dust collection system effectively suppresses dust flying, ensuring a clean working environment. In addition, the equipment is easy to maintain and its components are within easy reach. While taking into account environmental protection and convenience, it provides a reliable solution for the material transportation of enterprises.

Working principle

When operating an open bulk bag unloading station, first use the top hook to precisely lift and position the bulk bags. Then, start the vibration device to break the material lumps through high-frequency vibration, allowing the materials to smoothly slide from the bulk bag's discharge port to the vibrating unloading tray. Then, rotate the discharge port slowly to evenly feed the materials on the discharge disc into the subsequent silos or conveying equipment. Meanwhile, the dust collection system operates throughout the process, using negative pressure to promptly draw the dust generated during the unloading process into the collection device, ensuring that the entire unloading process is efficient, continuous and dust-free.

Features & Benefits

- Good openness: It adopts an open structure, which is convenient for the hoisting, positioning and unloading operations of ton bags. Operators can easily approach all parts of the equipment to carry out bagging, inspection and maintenance work.

- Compact layout: The overall structure is compact, occupying a small area. It can efficiently complete unloading operations within a limited space and is suitable for use in workshops or warehouses with tight space.

- High unloading efficiency: It is usually equipped with a vibration device, which can quickly and evenly unload the materials in the ton bags through vibration, effectively solving problems such as material caking and bridging, shortening the unloading time and improving production efficiency.

- Strong material adaptability: It can be applied to various types of materials, including granular, powder, block, etc. As long as the materials meet the packaging specifications of ton bags, they can be discharged at this unloading station.

- Good dust control: Generally, a dust collection system is provided. During the unloading process, it can promptly collect the generated dust, prevent dust from flying, improve the working environment, reduce the harm of dust to the health of operators, and also meet environmental protection requirements.

- High operational safety: Necessary safety protection devices such as guardrails and safety switches are set up, which can effectively prevent operators from having accidents during the operation process and ensure personnel safety.

- Easy maintenance: Due to its relatively simple structure and easily accessible components, the daily maintenance, upkeep and repair of the equipment are all quite convenient, reducing maintenance costs and difficulty.

- High cost performance: Compared with some complex unloading equipment, the open ton bag unloading station has the advantages of relatively low price, low operating cost and long service life, and has a high cost performance.

Bag size application	1000x1000x1600 mm
Power Source	AC 380 v ± 5%50 Hz
Air source pressure	≥ 0.6MPa
Air consumption	≤ 0.6 m ³/min
wind volume for dust-removal	800-2500m3/h
Environment humidity	-100C-400C
Cutting capacity	10-20 bags/h (manual)



























Detail display

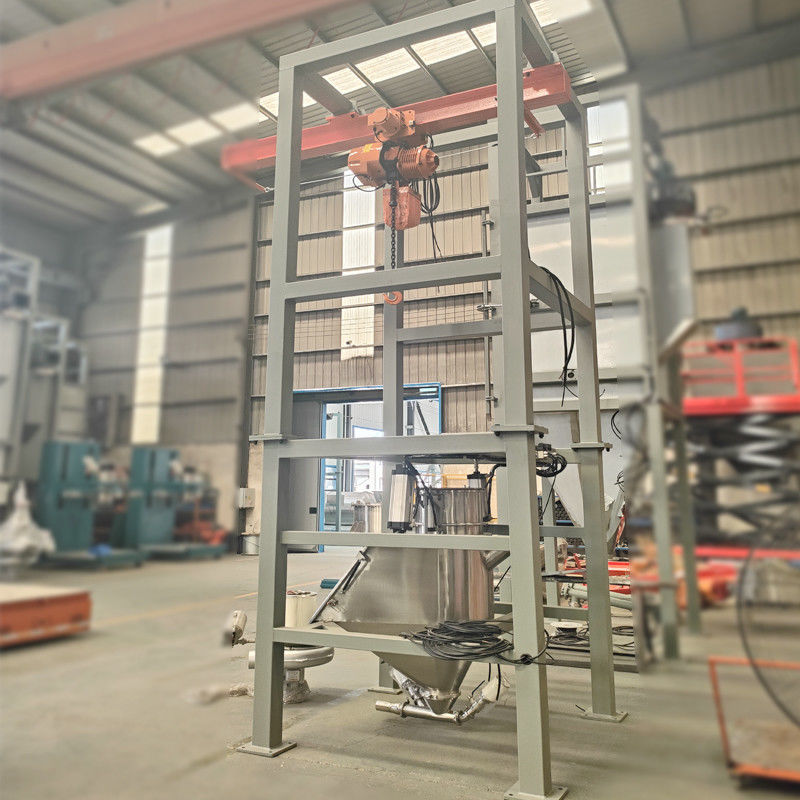

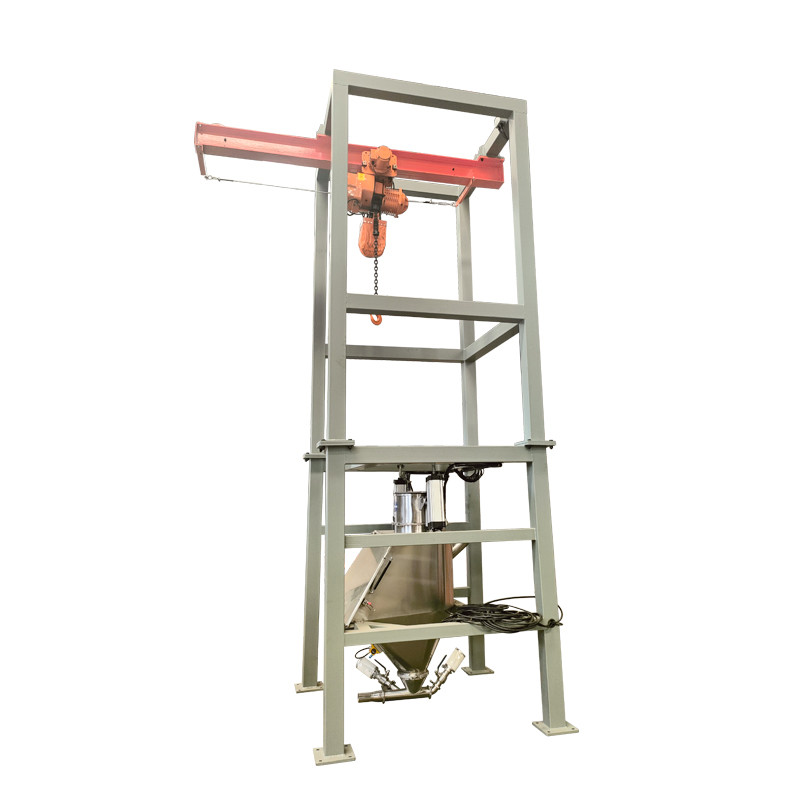

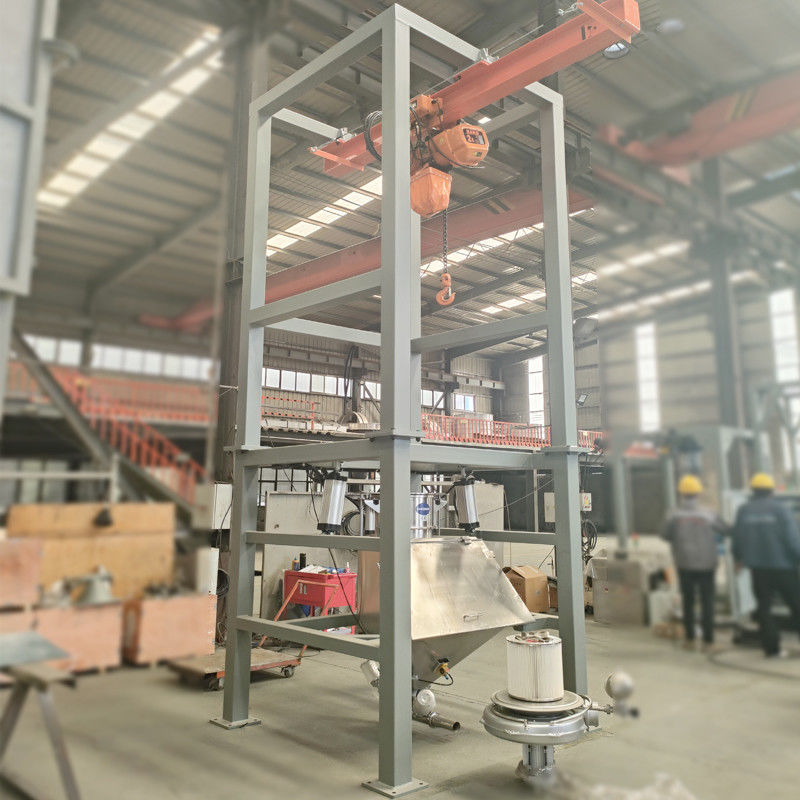

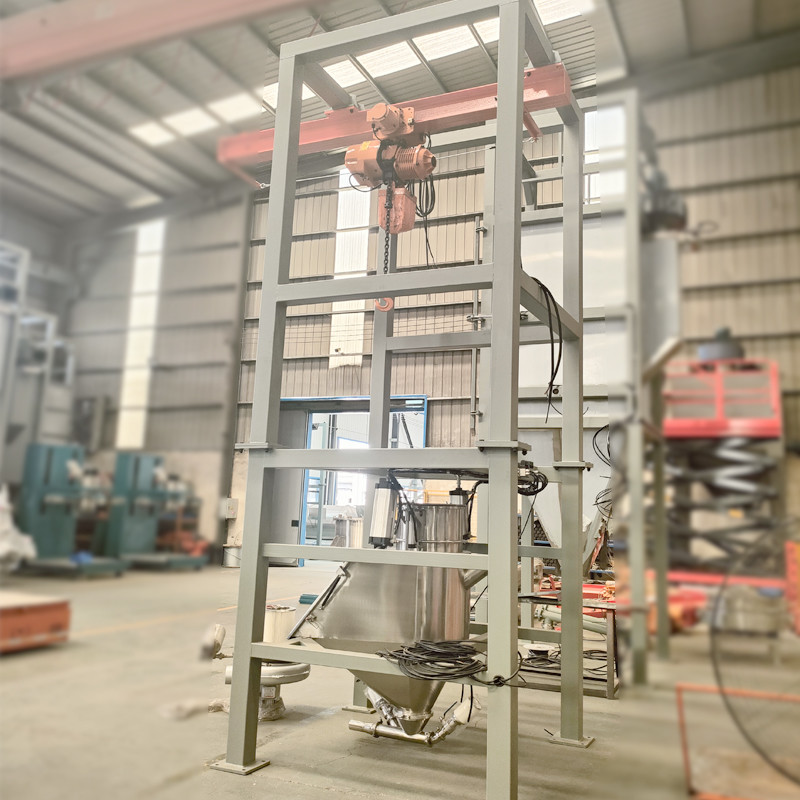

Product Shows

Application

The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food, medicine, and chemicals for unpacking and discharging bags of dry powders and granular materials, such as plastic resins and food additives.



Why Choose us



About us



Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
