Bulk Bag Discharger
Product description
The closed ton bag unloader is a powerful assistant in material handling in industrial production. It adopts a fully enclosed design and is combined with a negative pressure dust removal system, which can effectively isolate the dust generated during the unloading process, safeguarding the cleanliness of the workshop environment and the health of the operators. It can quickly lift and fix ton bags through mechanical devices and flexibly adapt to material packages of different specifications. Meanwhile, the equipment is equipped with an intelligent control system that can precisely regulate the unloading process and also has a fault early warning function. The unloading is efficient and stable, and it is widely used in multiple fields such as chemical engineering, food, and building materials.
Working principle
The closed ton bag unloader combines a fully enclosed structure with a negative pressure dust removal system to firmly lock the dust during the unloading process, greatly improving the working environment and ensuring the health of personnel. During operation, the equipment uses the lifting device to hoist the ton bags to the designated position and firmly fix them. The bag-breaking device precisely cuts through the bag body. Under the action of gravity, the materials are screened by the screening device to remove impurities, and then conveyed to the designated area by the screw conveyor, belt conveyor, etc. The intelligent control system runs through the entire process. It can not only precisely regulate parameters such as unloading speed and flow rate, but also monitor the equipment status in real time. Once a fault occurs, it will immediately issue a warning to ensure efficient, safe and stable unloading operations. It is an ideal material handling equipment for industries such as chemical engineering, food, and building materials.
Product features
Environmentally friendly and highly efficient: The fully enclosed structure combined with negative pressure dust collection prevents dust from overflowing and improves the working environment.
Highly automated: Covering the entire process from ton bag lifting to conveying, it reduces human input and enhances efficiency.
Precise and controllable: The intelligent system precisely regulates the unloading and screening parameters to ensure production accuracy.
Safe and reliable: Multiple protective devices, including limits, guardrails, etc., ensure the safety of personnel and equipment.
Flexible and versatile: Adaptable to different material characteristics and ton bag specifications, widely used in multiple industries.
Convenient maintenance: The structural design is reasonable, the components are wear-resistant, daily maintenance is easy, and the repair cost is low.
Product parameter
| Bag size application |
1000x1000x1600 mm |
| Power Source |
AC 380 v ± 5%50 Hz |
| Air source pressure |
≥ 0.6MPa |
| Air consumption |
≤ 0.6 m ³/min |
| wind volume for dust-removal |
800-2500m3/h |
| Environment humidity |
-100C-400C |
| Cutting capacity |
10-20 bags/h (manual) |
Product details

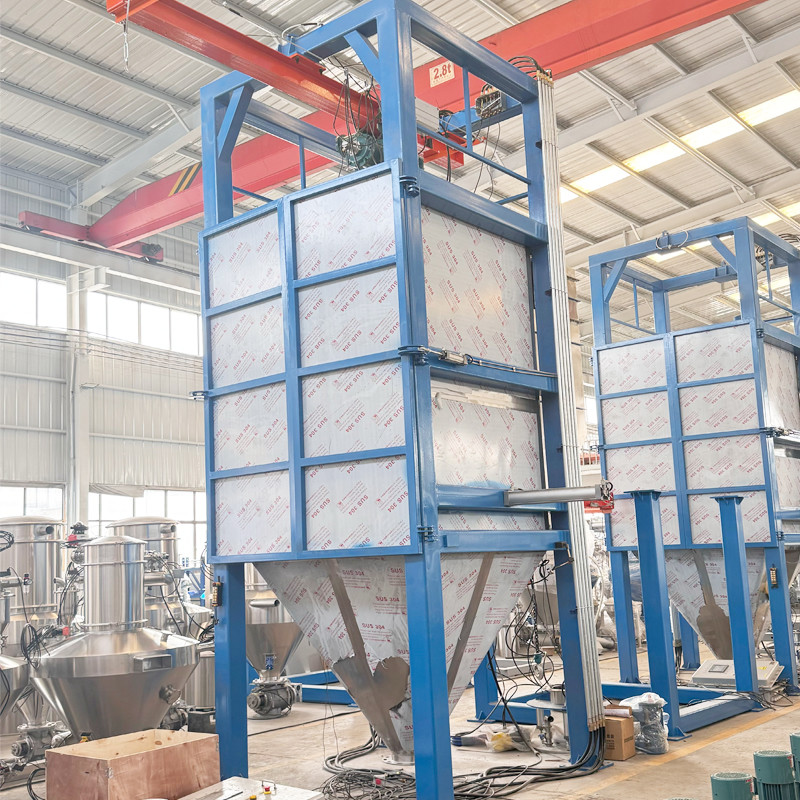

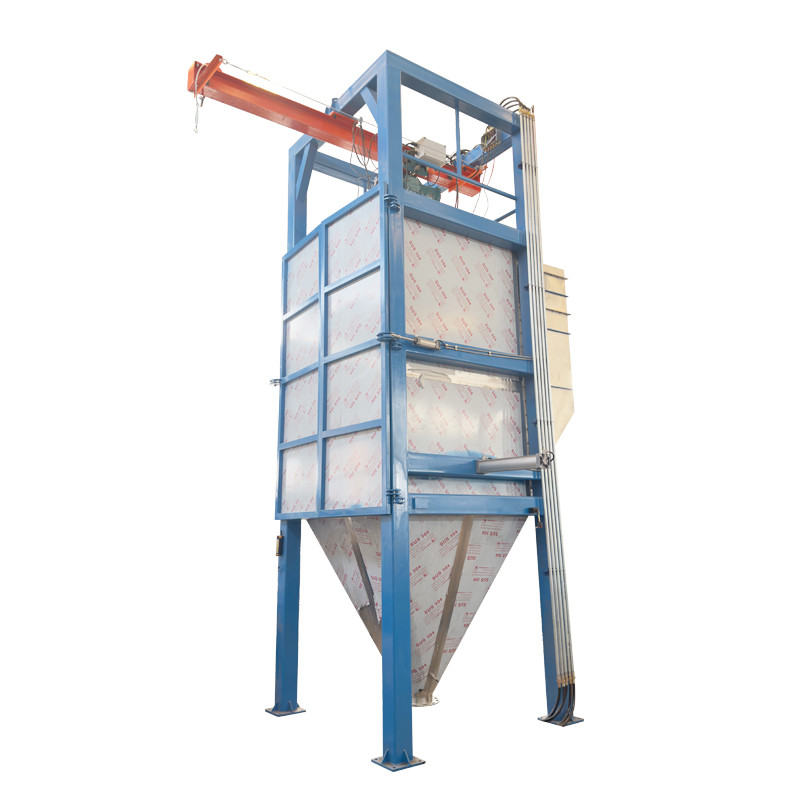

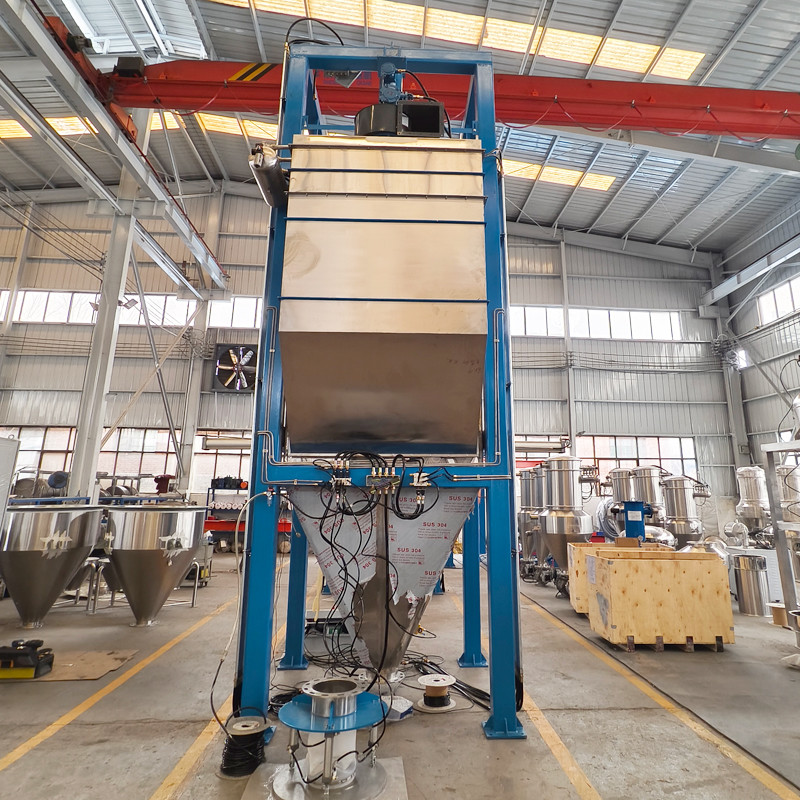

Product display
Line application
Product application
Application scope
The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food, medicine, and chemicals for unpacking and discharging bags of dry powders and granular materials, such as plastic resins and food additives.
