Gyratory Vibrating Screen
Product description
Plane rotary screen is a powerful equipment for industrial screening, which is widely used in many industries. Its appearance is regular square, compact structure. Multiple layers of screens with different mesh numbers are arranged orderly in the screen box. Vibration motor as a power source, stable operation. The material enters through the feed port, and under the action of the screen surface, the screening is quickly completed. The equipment screening accuracy is very high, can adapt to all kinds of materials, from fine powder to rough particles can be efficient and reliable performance, effectively boost the production of enterprises.
Working principle
The vibrating motor is the power core when the rotary screen is running. After the motor is started, the internal eccentric block rotates with the motor shaft at high speed, and the centrifugal force generated by the eccentricity drives the screen box to vibrate. By the motor installation and eccentric block action, the screen box to do plane circular motion. The material enters the screen box from the feed port, and jumps and rolls continuously under the movement of the screen surface. The material smaller than the screen hole quickly passes through the screen to become the material under the screen, and the material larger than the screen hole moves to the discharge port to achieve efficient and accurate screening.
Product Features
High screening efficiency: plane circular or elliptical motion, so that the material on the screen surface quickly jump, roll, and frequent contact with the screen, screening efficiency far exceeds the traditional equipment, processing flow, can significantly improve production efficiency.
High precision: multi-layer screen with different mesh number configuration, accurate regulation of screen size and screen surface movement parameters, and strict standards of product particle size of each grade, to meet the needs of high precision screening such as pharmaceutical and fine chemical industry.
Material universal: whether it is particles, powder, or wet, sticky materials, by adjusting the vibration frequency, amplitude, can be properly handled, widely used in food, building materials, mining and other fields.
Compact structure: The overall design is simple, small footprint, easy to install all kinds of space layout, but also easily combined with other equipment, improve production integration.
Stable operation: Vibration motor provides stable exciting force, stable vibration and low noise during operation. The key components are durable and can run stably for a long time to ensure continuous production.
Easy maintenance: simple structure, easy disassembly and installation of components, convenient daily inspection and cleaning. Such wearing parts as screens are easy to replace, the maintenance cost is low, and the operating status of the equipment is also easy to monitor.
Product parameter
| Model |
Screen Surface |
Screen Deck/
Layer No. |
Feeding Size
(mm) |
Amplitude
(mm) |
Frequency
(r/min) |
Power
(kW) |
Width
(mm) |
Length
(mm) |
| BPH1230 |
1200 |
3000 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1236 |
1200 |
3600 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1530 |
1500 |
3000 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1536 |
1500 |
3600 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1836 |
1800 |
3600 |
1-3 |
<75 |
75-90 |
750 |
7.5 |
| BPH2040 |
2000 |
4000 |
1-3 |
<75 |
75-90 |
750 |
11 |
Schematic diagram
Detail display

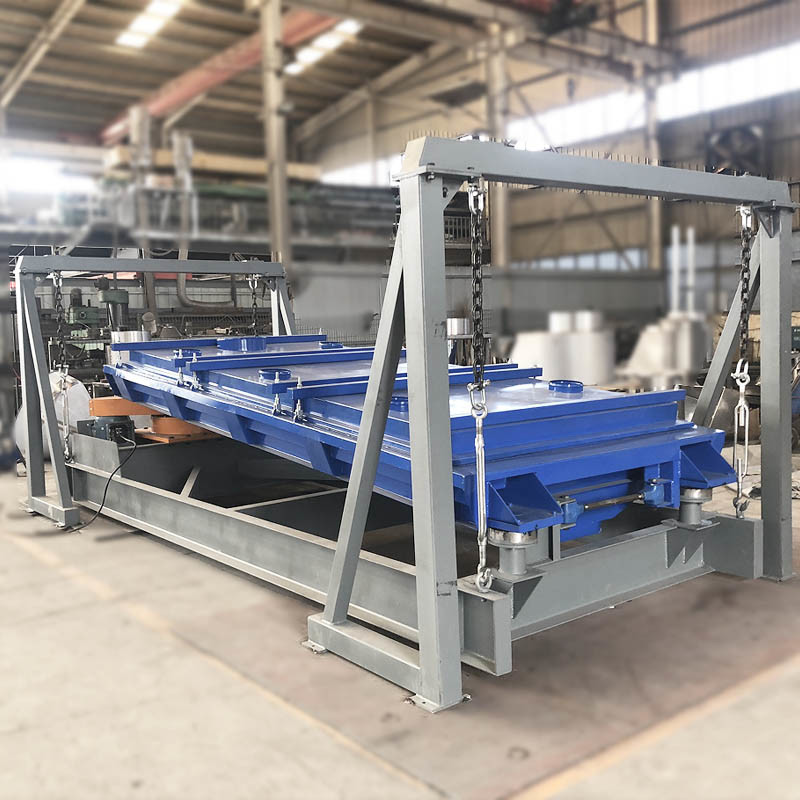

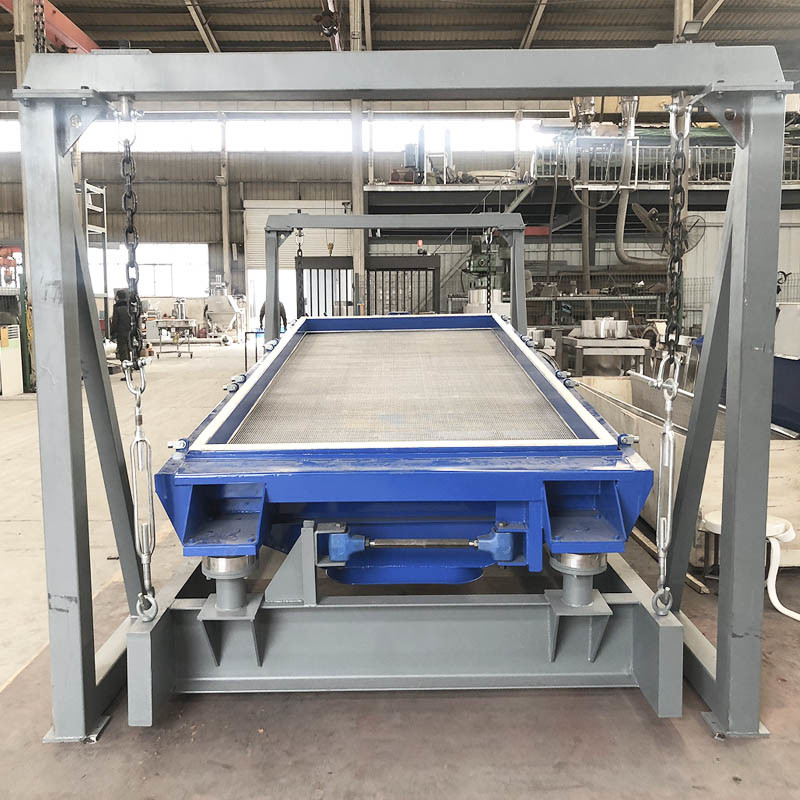

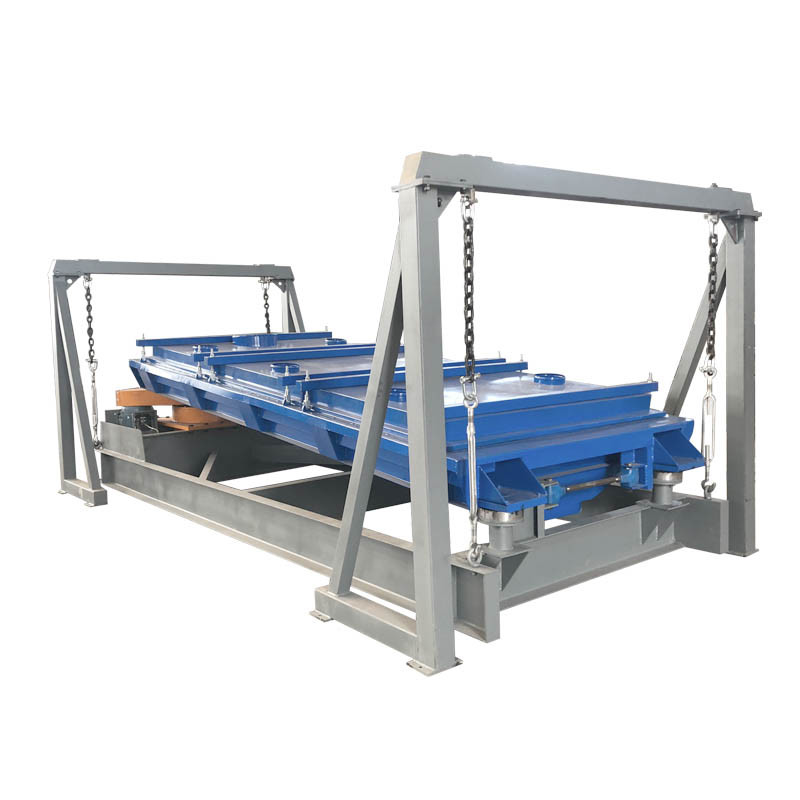

Product display
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
