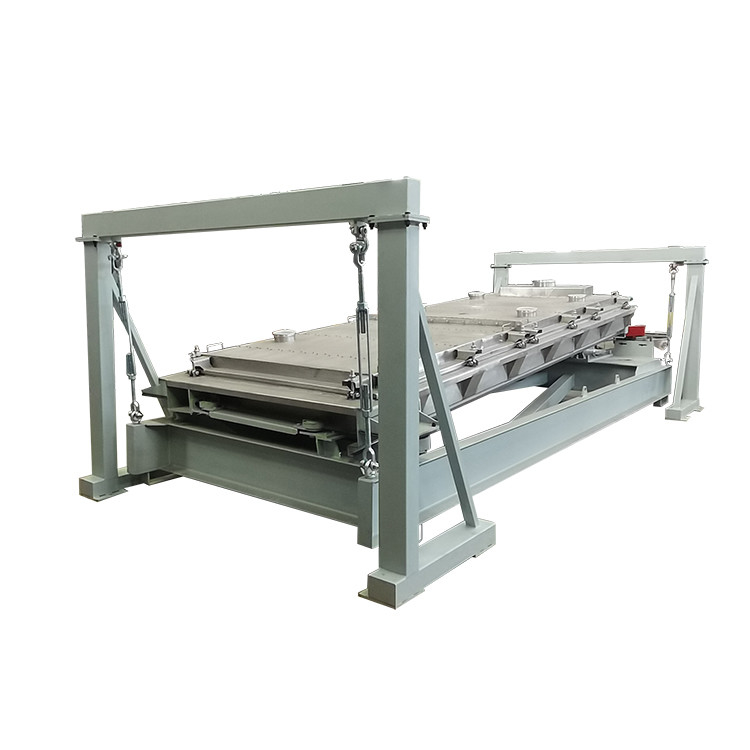

Gyratory Vibrating Screen
Product description
Plane rotary screen is a kind of high efficiency screening equipment. Its shape is square, mainly composed of screen box, vibration motor, shock absorber and so on. When working, the vibration motor generates exciting force, drives the screen box to do plane circular motion, and promotes the material to constantly jump, roll and advance on the screen surface.
The screen box is equipped with multiple layers of screens with different mesh numbers, which can accurately grade and screen materials. With its unique rotational motion, it has high screening accuracy and can handle a variety of materials with different characteristics, such as grain, chemical raw materials, ores and so on. Moreover, the equipment has compact structure, small footprint, simple operation and stable operation, and plays an important role in many industrial production fields.
Working principle
The plane rotating screen is operated by vibrating motor to realize the screening. The motor starts, the internal eccentric block rotates with the motor shaft, and the centrifugal force generated by the eccentricity drives the screen box connected with it to vibrate. By the motor installation mode and the eccentric block, the screen box does circular or elliptical plane movement, so that the force of the material on the screen surface is constantly changing, and then the composite action of jumping, tumbling and moving forward is generated. The material enters the screen box through the feed port, and the particles smaller than the screen hole pass through the screen, and the material under the screen is discharged; Greater than the continued movement of the screen, discharged from the discharge port. The multi-layer screen with different mesh number can allow the material to be screened multiple times and accurately divided into multiple particle size grades.
Product Features
1. High screening efficiency: its unique plane rotation movement mode, so that the material on the screen surface fully tumbling, jumping, can quickly stratification and screening, greatly improve the screening efficiency, can handle large material flow.
2. High screening accuracy: Multiple layers of different mesh mesh mesh combination, can accurately grade the material, can effectively control the granularity of each level of products, to meet the needs of different users.
3. Strong adaptability: It can be applied to a variety of materials with different properties, such as granular, powdered, wet materials, etc., and by adjusting vibration parameters, it can adapt to different production process requirements.
4. Compact structure: The overall structure of the equipment is simple, the floor area is small, easy to install and maintain, and can be flexibly arranged in different production workshops.
5. Stable operation: vibration motor drive, stable vibration during work, low noise, long service life of equipment, continuous and stable operation, reducing maintenance costs and downtime.
Product parameter
| Model |
Screen Surface |
Screen Deck/
Layer No. |
Feeding Size
(mm) |
Amplitude
(mm) |
Frequency
(r/min) |
Power
(kW) |
Width
(mm) |
Length
(mm) |
| BPH1230 |
1200 |
3000 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1236 |
1200 |
3600 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1530 |
1500 |
3000 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1536 |
1500 |
3600 |
1-3 |
<50 |
75-90 |
1450 |
5.5 |
| BPH1836 |
1800 |
3600 |
1-3 |
<75 |
75-90 |
750 |
7.5 |
| BPH2040 |
2000 |
4000 |
1-3 |
<75 |
75-90 |
750 |
11 |
Schematic diagram
Detail display

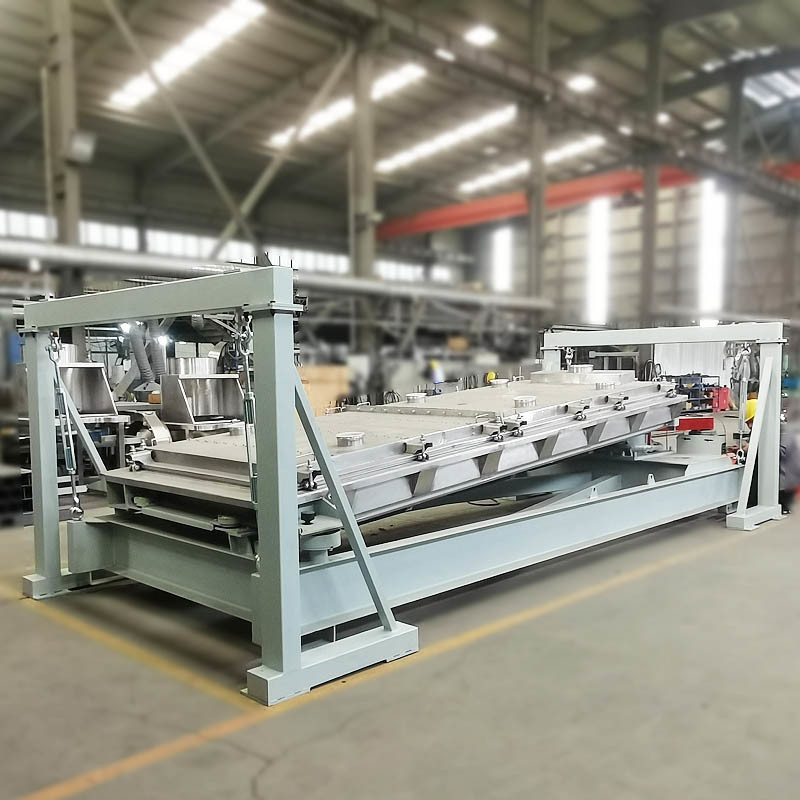

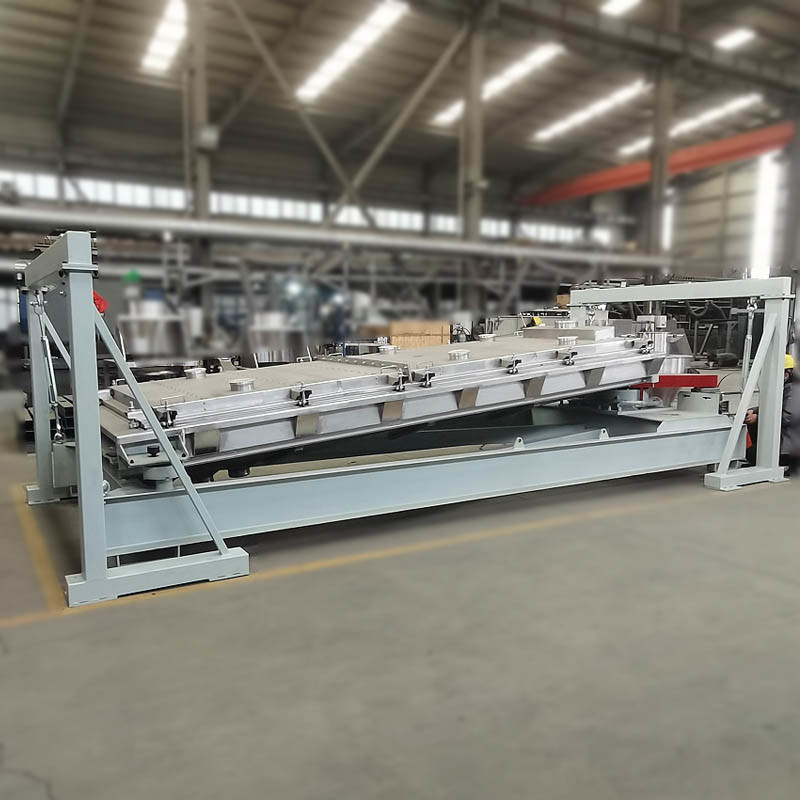

Product display
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
