Rectangular Gyratory Sifter
Product description
The square swinging screen is a powerful equipment for material screening, which is efficient and practical and has obvious advantages. Its appearance is regular square, compact structure, can flexibly adapt to all kinds of production lines, effectively save space. The screen body is made of high-quality stainless steel, resistant to corrosion and wear, and extremely durable. When running, the motor drives the screen body to do a unique three-dimensional composite swing movement, and the material is fully dispersed and jumped on the screen surface, and the screening is quickly completed with high efficiency. At the same time, the screen can be replaced with different mesh numbers as needed, and the screening accuracy is guaranteed. In addition, it is easy to maintain, a wide range of applications, chemical, food, medicine, mining and other industries of particulate or powder materials, can be excellent response.
Working principle
By using the motor to drive the screen body to produce horizontal, vertical, tilt direction of the three-dimensional composite swing motion. Under the action of this movement, the material is evenly distributed on the screen surface and moves forward in a swirl shape. Due to the high-frequency vibration of the screen body, small particles in the material can quickly pass through the screen and fall into the collection device below. The large particle material gradually moves along the screen surface to the discharge port, and is finally discharged from the screen body, so as to achieve efficient separation of materials with different particle sizes.
Product Features
High efficiency: three-dimensional composite movement, material dispersion jump, fast screening, large processing capacity.
Precision: can be equipped with different mesh number screen, high tension, precise particle size control.
Compact: Square structure covers a small area, easy installation, stable operation, low noise.
Durable: High quality stainless steel material, corrosion resistance, wear resistance, long life.
Easy maintenance: The screen is easy to replace, the parts are easy to repair, and the maintenance cost is low.
General: Widely used in many industries, suitable for a variety of material screening.
Product parameter
| Model |
Layer |
Effective
screening area(m2) |
Angle
degree |
Power
(kw) |
Dimension
(mm) |
| EFYB-1030 |
1~8 |
3 |
5~10 |
2.2 |
3600*1600*1800 |
| EFYB-1036 |
3.6 |
2.2 |
4200*1600*1800 |
| EFYB-1230 |
3.6 |
4 |
3600*1800*1800 |
| EFYB-1236 |
4.3 |
4 |
4200*1800*1800 |
| EFYB-1530 |
4.5 |
4 |
3600*2100*2000 |
| EFYB-1536 |
5.4 |
4 |
4200*2100*2000 |
| EFYB-1830 |
5.4 |
5.5 |
3600*2400*2400 |
| EFYB-1836 |
6.48 |
5.5 |
4200*2400*2400 |
| EFYB-2030 |
6 |
7.5 |
3600*2600*2400 |
| EFYB-2036 |
7.2 |
7.5 |
4200*2600*2400 |
Schematic diagram
Detail display

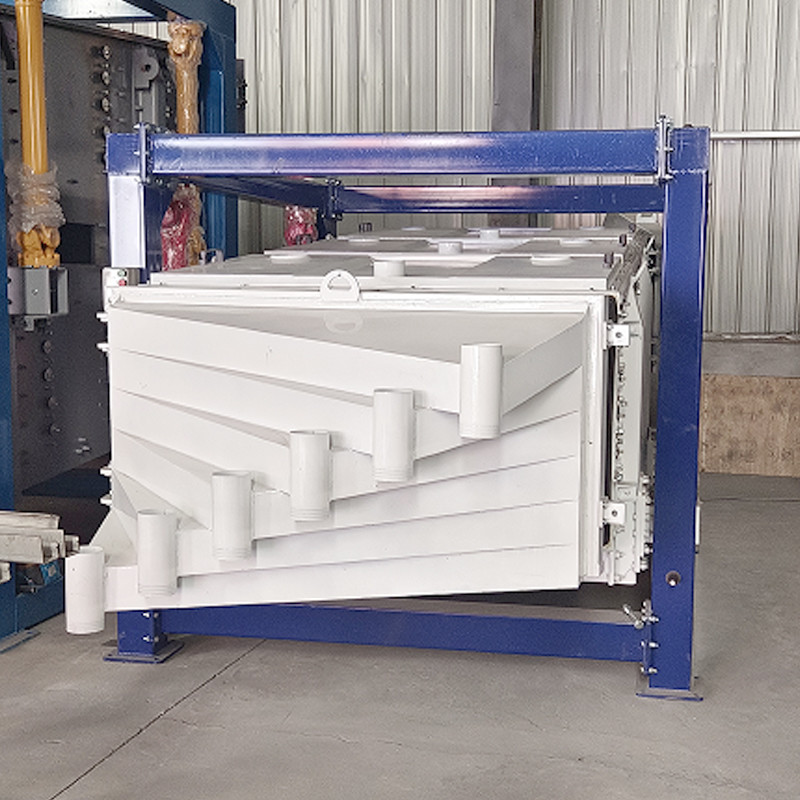

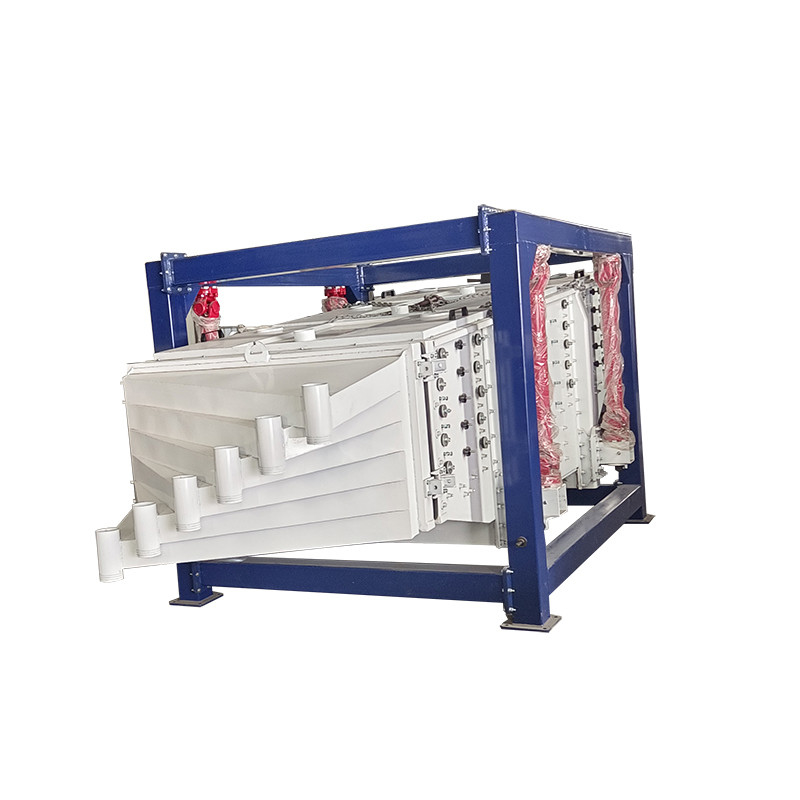

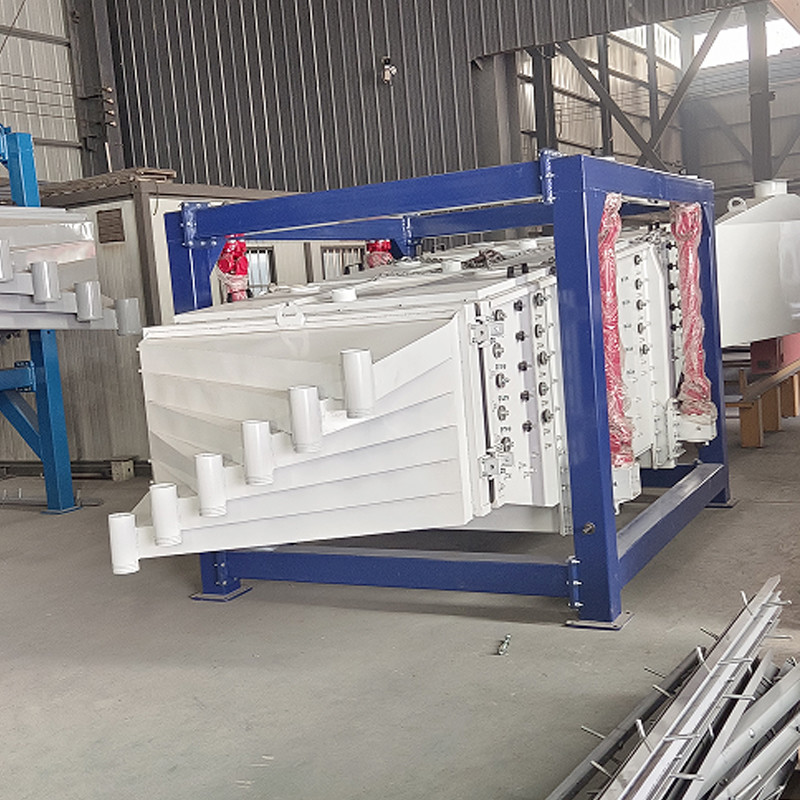

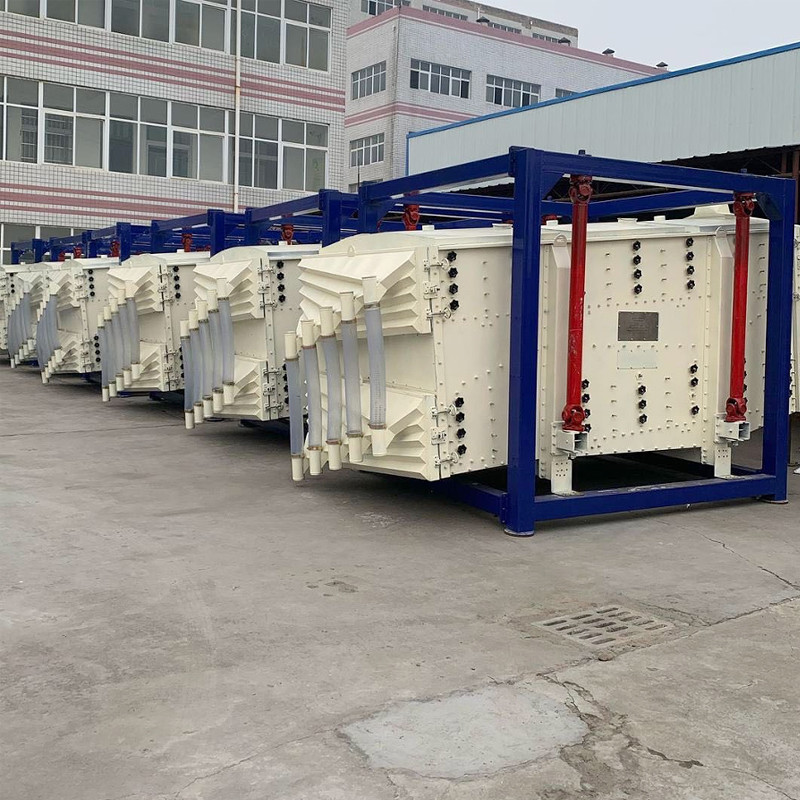

Product display
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
