Bulk Bag Discharger

Product description

The hermetically sealed ton bag feeding station is the effective assistant of modern industrial efficient feeding. Its fully closed structure, the dust firmly locked inside, not only greatly improve the workshop environment, protect the health of workers, more suitable for pharmaceutical, food and other industries with high health requirements. It has a professional bag breaking device, can quickly open tons of bags, materials fall by gravity, with vibrating screening device, efficient feeding while accurately control the particle size, to ensure product quality. Equipment structure is stable, long-term operation is also stable and reliable. The operation is extremely simple, after the workers lift the ton bag to start the equipment, the subsequent process is automatically carried out, and multiple safety protection measures fully ensure the safety of personnel and equipment. In addition, it can adapt to different materials and production needs, and is widely used in many industries such as chemical industry and building materials.

Working principle

When the closed tonnage bag feeding station is working, the tonnage bag is first transported smoothly by the crane and other lifting equipment to the preset position on the top of the feeding station and fixed. Then, the bag breaking device in the station is started, and the bottom or side of the ton bag is accurately broken through the sharp tool or mechanical clamping and tearing action, and the material falls naturally under the action of gravity. In the process of falling, the vibrating screening device begins to work, the motor drives the screen to produce high-frequency vibration, the material constantly pulsates on the screen, and the fine particles that meet the screen aperture pass through smoothly and enter the subsequent transmission pipeline or storage container; Large particles are intercepted for further processing. At the same time, in order to prevent dust spillover, the entire feeding area is in a fully closed state, the top fan runs to form negative pressure, the dusty air is inhaled into the dust removal equipment, and after multi-layer filtration and purification, the clean air is discharged back to the workshop, so as to achieve efficient, environmentally friendly and safe feeding operation.

Product features

1. Sealed and dust-proof: The use of completely closed structure, from the source to curb dust flying, effectively reduce the workshop dust concentration, improve the working environment, protect the health of workers, to meet the strict control of dust industry demand.

2. Efficient bag breaking feeding: Equipped with advanced bag breaking device, can quickly and accurately break tons of bags, materials rely on gravity to fall rapidly, with efficient vibrating screening, to achieve continuous and rapid feeding, greatly shorten the feeding time, improve production efficiency.

3. Precise particle size screening: The vibrating screening device can flexibly adjust the screen specifications according to the production needs, accurately screen the materials that meet the particle size requirements, ensure the uniform particle size of the materials entering the subsequent process, and stabilize the product quality.

4. Stable and reliable operation: the overall structure is optimized and designed, the selection of high-quality materials is made, and the components are assembled accurately, which can maintain stable operation and reduce the downtime of equipment failure during long-term and high-intensity production operations.

5. Easy operation: workers only need to operate the lifting equipment to place the ton bag in place, and then start the equipment, and the whole feeding process can be automatically completed, without complicated operations, reducing the difficulty and labor intensity of manual operation.

6. Comprehensive safety protection: there are multiple safety protection measures, such as automatic locking of the protective door when the equipment is running, and the emergency brake button can stop the operation of the equipment at any time to prevent accidents and ensure the safety of personnel and equipment.

7. Strong adaptability: According to different material characteristics, such as particle size, fluidity, viscosity, etc., adjust the broken bag mode, vibration frequency and other parameters, but also with a variety of follow-up conveying equipment and storage containers seamless connection, widely used in chemical, food, building materials and other industries.

Bag size application	1000x1000x1600 mm
Power Source	AC 380 v ± 5%50 Hz
Air source pressure	≥ 0.6MPa
Air consumption	≤ 0.6 m ³/min
wind volume for dust-removal	800-2500m3/h
Environment humidity	-100C-400C
Cutting capacity	10-20 bags/h (manual)

























Product details

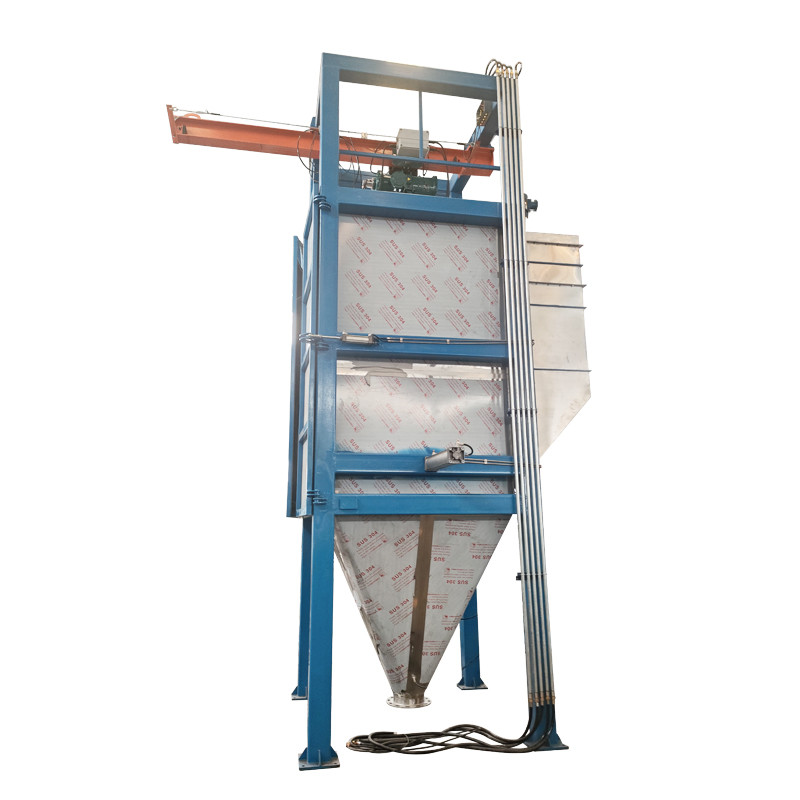

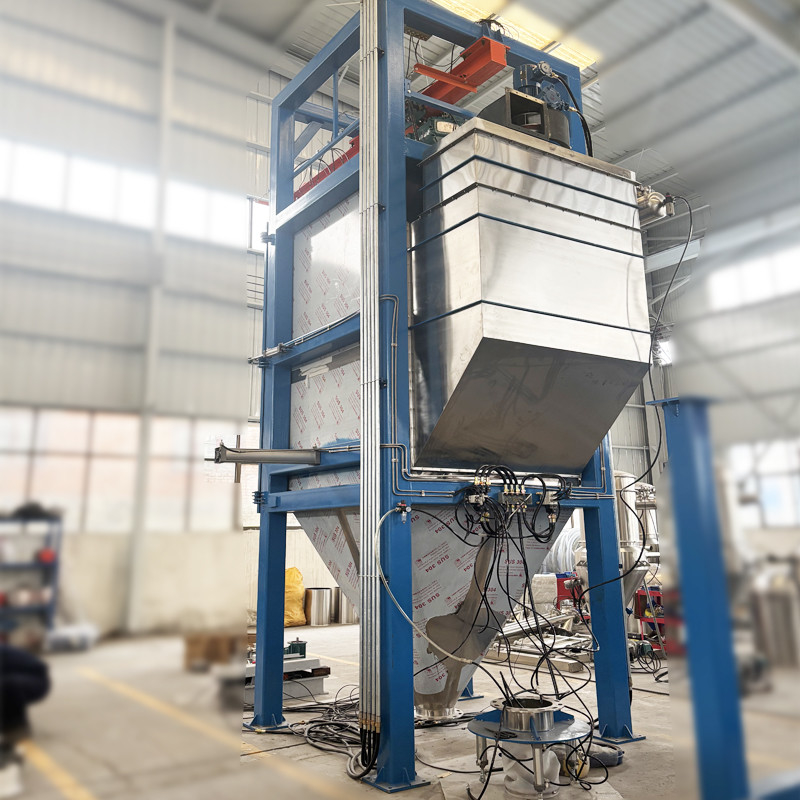

Product display

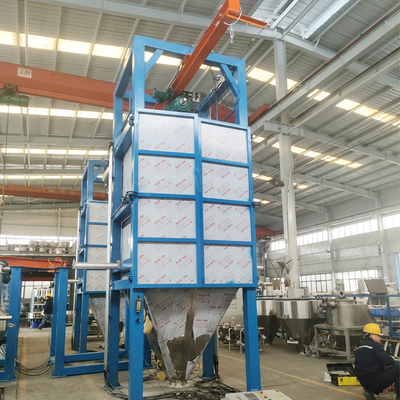

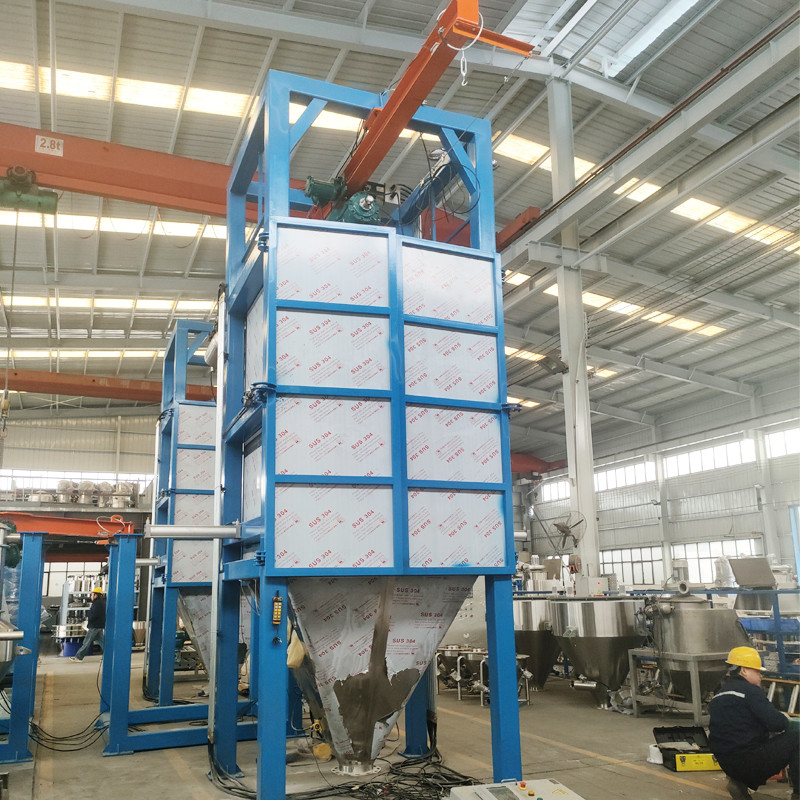

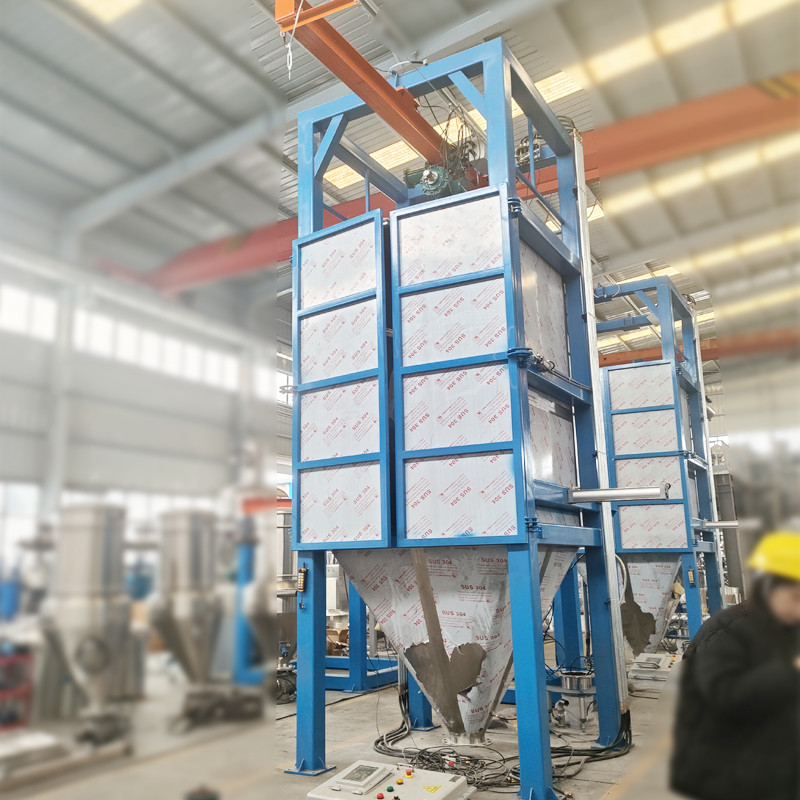

Line application





Product application



Application scope

The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food, medicine, and chemicals for unpacking and discharging bags of dry powders and granular materials, such as plastic resins and food additives.
