Bulk Bag Unloader

Product description

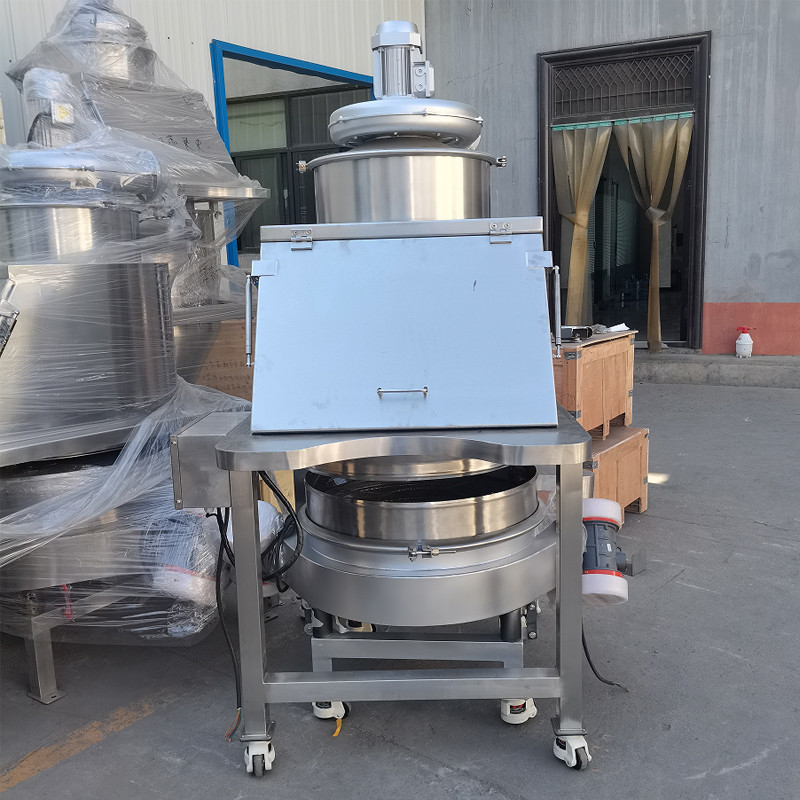

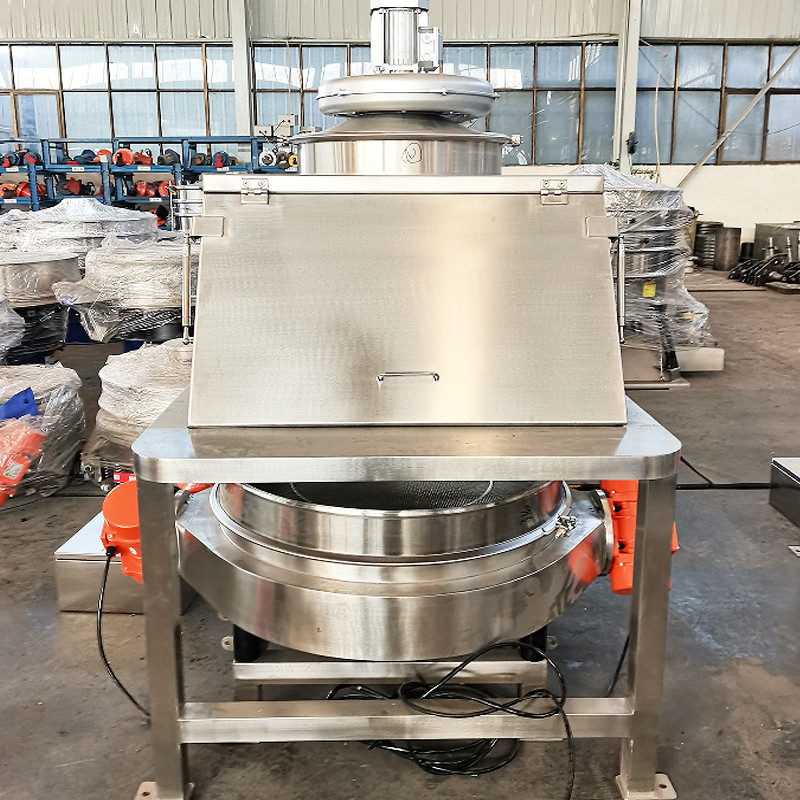

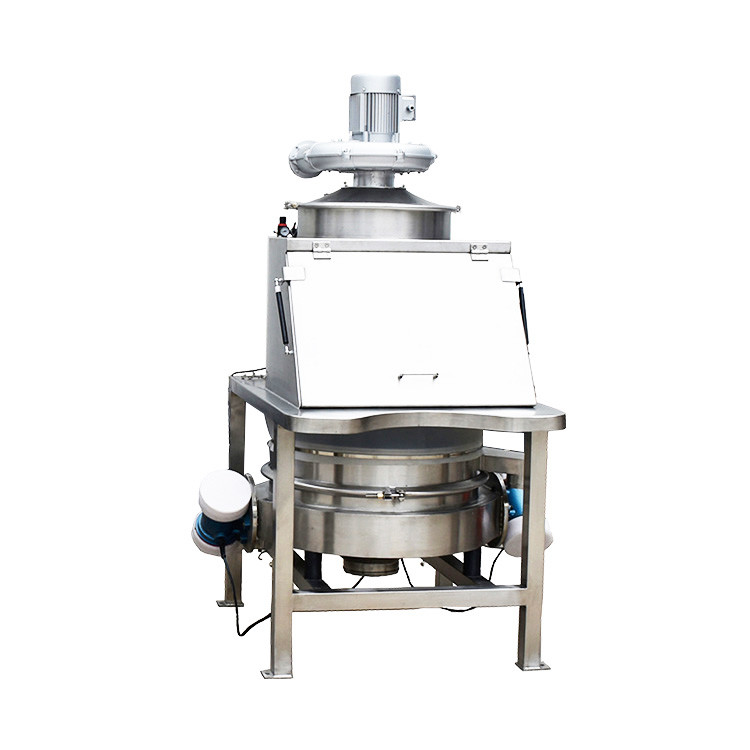

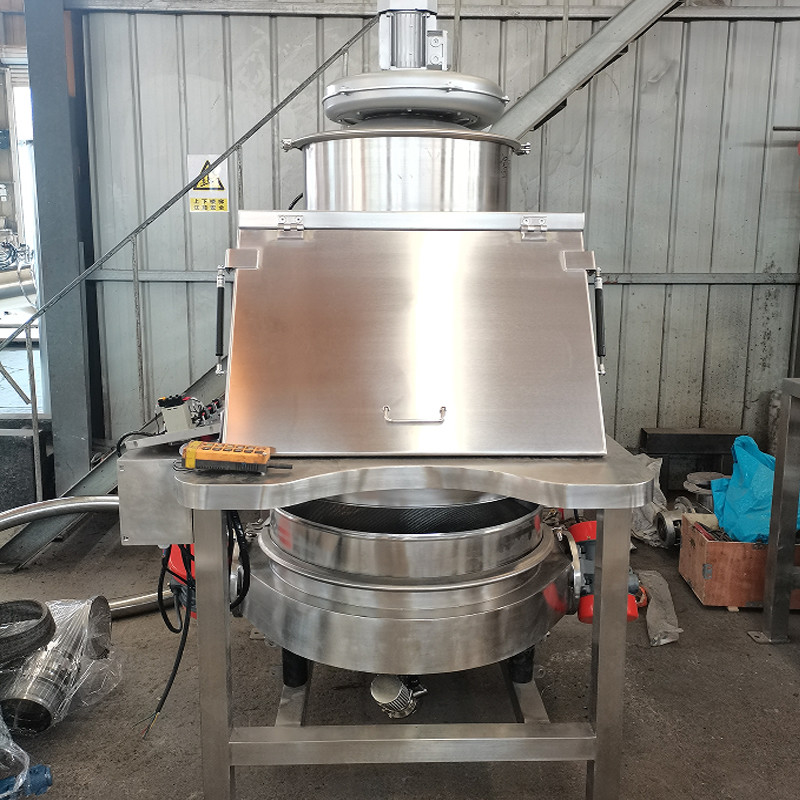

Dust-free feeding station, with a simple and elegant appearance, is usually composed of a closed feeding bin, an efficient filtration system, and a conveying device. When materials are fed, the unique sealing design prevents dust from overflowing. Its working principle is based on advanced airflow control technology. At the moment of, the built-in fan quickly generates negative pressure, which can suck the dust that may be raised into the filtration system. The filtration system uses high-precision filter elements which can efficiently intercept fine particles. The purified air is then safely discharged, ensuring a fresh working environment.

Working principle
The dust-free feeding station achieves dust-free operation through sealing, negative pressure suction, and filtration purification. At the moment of feeding, the structure closes to prevent dust overflow, and the built-in fan operates at high speed, creating a strong negative pressure in the feeding area, which quickly draws the dusty air the suction pipeline. The dusty air first enters the primary filtration area, where large particles of dust are initially intercepted, reducing the pressure on subsequent filtration. Next, the enters the main filtration area, where high-precision filter elements, made of special materials and with fine pores, capture dust particles at the micron and nanometer levels, the purified air passes through the filter elements. As the filtration process continues, the accumulation of dust on the filter elements increases, affecting efficiency, and the cleaning device is. Taking pulse reverse blowing cleaning as an example, the pulse valve sprays a high-pressure air flow that impacts the filter elements in the opposite direction, causing the dust fall off and into the dust collection bin. Ultimately, the purified clean air is discharged from the outlet, maintaining a clean feeding environment and contributing to efficient and environmentally friendly.

Features & Benefits

1. Excellent Sealing Performance: Equipped with a sophisticated sealing structure, it closes immediately when materials are fed. Like a solid barrier, it firmly locks dust within the station, completely preventing dust from spilling out at the source and effectively protecting the workshop environment and surrounding areas from pollution.

2. High - Efficiency Dust - Absorbing Capacity: It has a high - performance built - in fan that can quickly create a strong negative pressure in the feeding area. It can rapidly suck the dust - laden air generated during the feeding process into the dust - collecting pipeline, ensuring that the dust is collected in a timely manner and maintaining a clean air environment in the working area.

3. Precise Filtration Performance: The filtration system includes the primary and main filtration areas. The primary filtration intercepts larger particles first, and the high - precision filter elements in the main filtration area can accurately capture fine dust particles at the micron or even nanometer level. The filtration accuracy is extremely high, ensuring that the discharged air is clean and pollution - free.

4. Automatic Dust - Cleaning Function: It is equipped with an automatic dust - cleaning device, such as pulse - jet dust - cleaning. When the dust accumulation on the filter elements affects the filtration efficiency, it can be activated in a timely manner. The high - pressure air flow impacts the filter elements in the reverse direction, causing the dust to fall off and maintaining the high - efficiency operation of the filter elements. There is no need for frequent manual intervention, reducing maintenance costs.

5. Improved Production Efficiency: The entire feeding process is efficient and smooth. The dust - free environment avoids equipment failures and production stoppages caused by dust interference. At the same time, it ensures the purity of the materials, which is helpful for improving product quality and thus indirectly increasing production efficiency.

6. Environmental Protection and Energy Conservation: Through efficient dust collection and purification, it reduces the pollution of dust to the atmospheric environment, meeting environmental protection requirements. The reasonable configuration of the fan and energy - saving design can reduce energy consumption while ensuring performance, achieving the goal of energy conservation.
