Bulk Bag Unloader
Product description
The structure of the open-type ton bag feeding station is relatively simple, usually consisting of a support, a ton bag suspension device, a bag device, etc. It generally has no enclosed shell, and the feeding port is completely open, which is convenient for operators to approach the ton bag for operation. Its are convenient operation, quick lifting of the ton bag and bag breaking feeding, and intuitive observation of the feeding process. It is suitable for occasions where the feeding speed is to be high, the material properties are relatively stable, and there is no strict dust control requirement, such as the feeding operation of some building materials and chemical raw materials which can effectively improve production efficiency and reduce the labor intensity of manual feeding.
Working principle
Firstly, the ton bag is lifted to the designated position of the discharge station by means of a crane or forklift and hung fixed., the operator starts the bag-breaking device, such as a cutter or scissors, to perform the bag-breaking operation on the bottom or side of the ton bag. Under action of gravity, the materials inside the ton bag flow out from the bag-breaking port and enter the discharge port below, which can be connected to a conveying pipeline or material conveying equipment to transport the materials to a designated place for subsequent processing. Some discharge stations are also equipped with vibration devices, which can assist the materials to flow smoothly and prevent the materials from caking or blocking.
Features & Benefits
1. Easy operation: With no complex structure and enclosed shell, operators can directly access the ton bag, quickly completing operations such as hanging breaking the bag, making the process simple and efficient.
2. Low cost: Compared to enclosed feeding stations, there is no need for expensive sealing and dust removal systems making the equipment purchase and maintenance costs lower, offering high cost performance.
3. Efficient feeding: The open feeding port allows materials to quickly fall, and combined with an bag breaking device, it can achieve large quantities of materials being fed in a short period of time, improving production efficiency.
4. Strong visibility: The entire feeding process clear at a glance, allowing operators to observe the material status at any time, and promptly detect and handle issues such as material caking and blockage.
5. versatility: Suitable for most materials with stable properties and low dust control requirements, such as construction aggregates and ordinary chemical raw materials, with a wide range of application scenarios.
Product parameter
| Bag size application |
1000x1000x1600 mm |
| Power Source |
AC 380 v ± 5%50 Hz |
| Air source pressure |
≥ 0.6MPa |
| Air consumption |
≤ 0.6 m ³/min |
| wind volume for dust-removal |
800-2500m3/h |
| Environment humidity |
-100C-400C |
| Cutting capacity |
10-20 bags/h (manual) |
Detail display

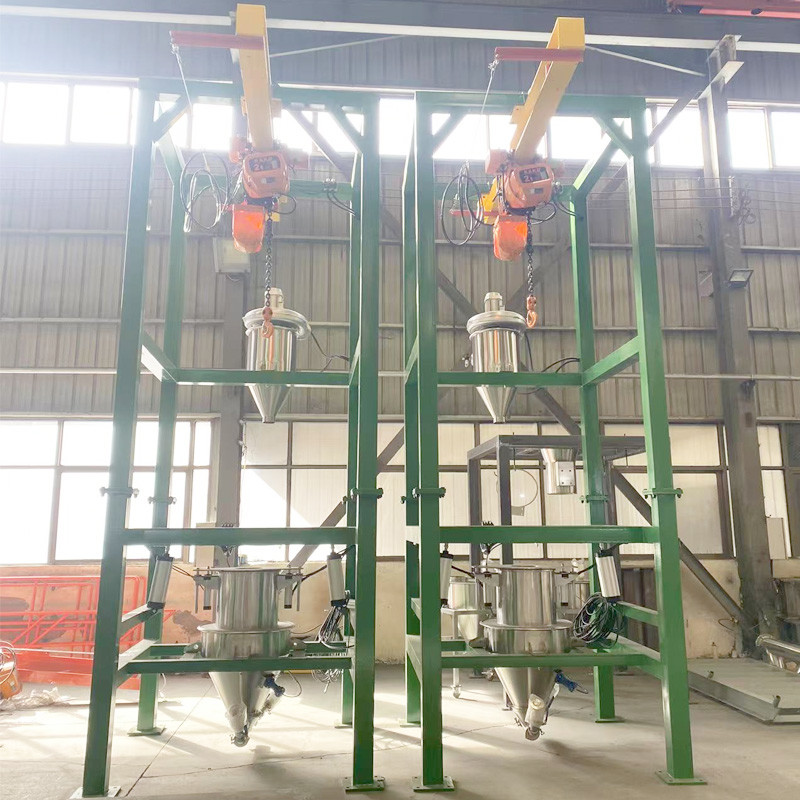

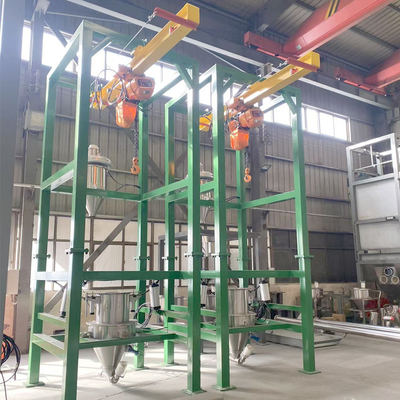

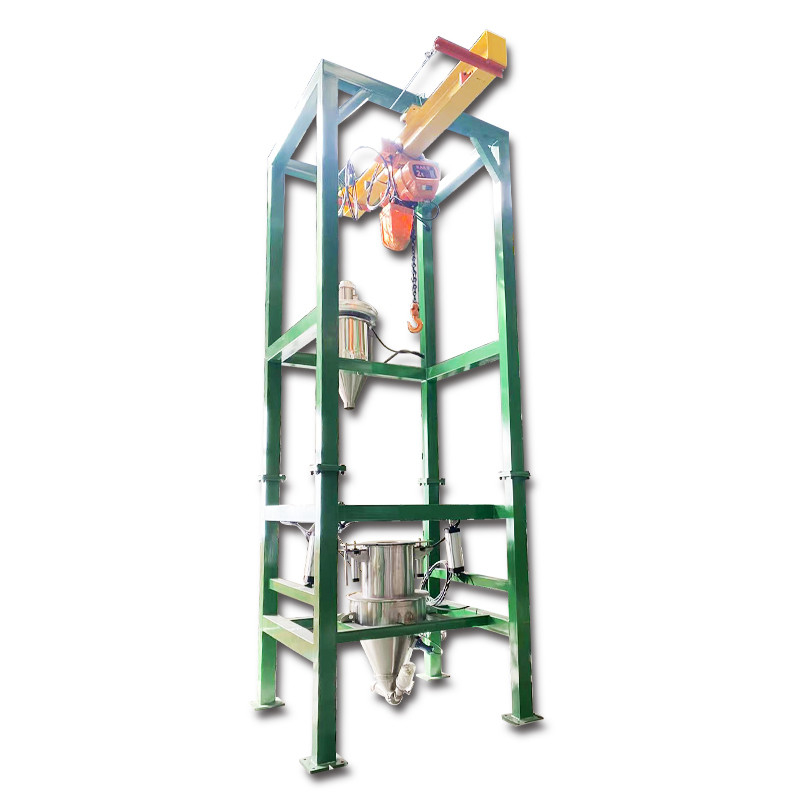

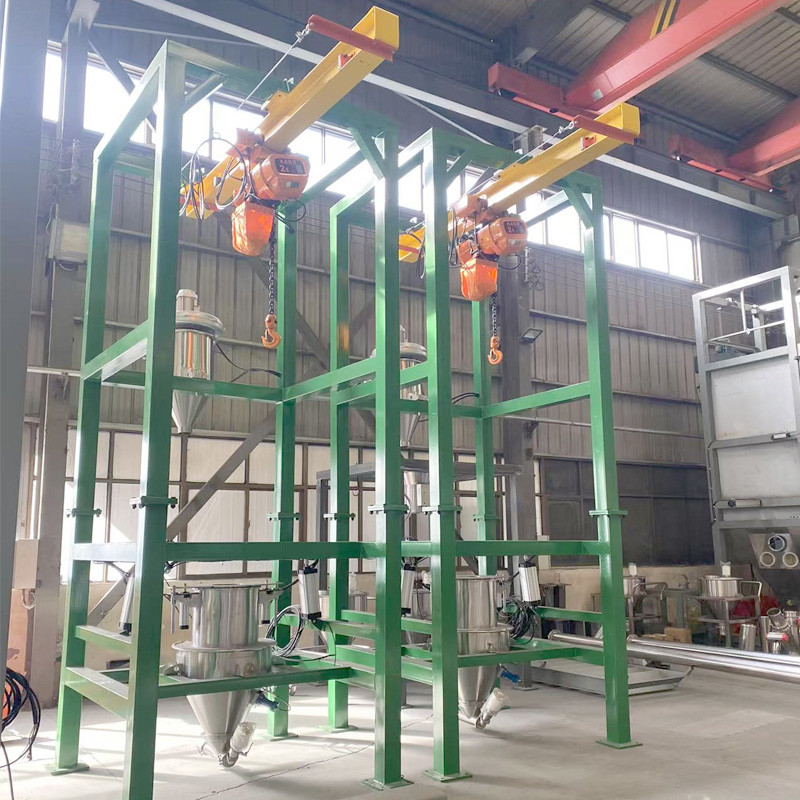

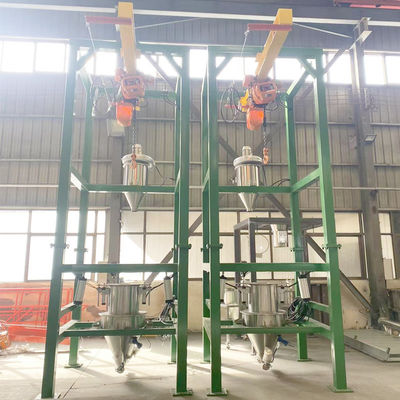

Product Shows
Application
The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food, medicine, and chemicals for unpacking and discharging bags of dry powders and granular materials, such as plastic resins and food additives.
