Bulk Bag Unloader
Product description
The dust-free feeding station, as a key device in the material handling process, provides an effective solution for dust control in industrial production environments. It a modular design, with the main structure made of high-strength stainless steel, which has excellent corrosion resistance and mechanical strength, and can adapt to various complex working conditions.
Working principle
The working principle of the dust-free feeding station mainly relies on physical barriers and aerodynamic principles. When the feeding operation is carried out, the enter the station from the feeding port. First of all, the sealed structure prevents dust from directly overflowing at the opening. At the same time, the dust-suction inside the station uses a fan to generate strong negative pressure, which inhales the dust raised during the feeding process into the pipeline. Subsequently, the dusty air enters filtration system, and through the high-efficiency filter screen, the dust is intercepted and separated, and the clean air is discharged. Some dust-free feeding stations are also with pulse back-blow devices, which regularly clean the filter screen to ensure the filtration effect of the filter screen, so as to continuously and stably achieve dust-free operations.
Features & Benefits
1. Efficient dust removal: Equipped with a professional-level dust removal system, it can quickly collect and filter the fine dust generated during feeding process, with a dust removal efficiency of more than 99%, ensuring the cleanliness of the workshop air.
2. Sealed design: Adopt a fully sealed, with the feeding port closely connected to the material container, effectively preventing dust overflow, reducing pollution to the workshop environment, and lowering the risk of dust explosions.
3. Easy operation: Humanized design, with the feeding port height and angle suitable for easy operation by workers, and the equipment is simple to operate, reducing the learning cost workers and improving work efficiency.
4. Strong adaptability: Can flexibly adapt to different shapes and specifications of material packaging, whether it is bagged, barrelled or other packaging forms, it can easily complete the feeding work.
5. Simple maintenance: The equipment structure is reasonable, and key components such as filters and fans are to disassemble and replace, with low maintenance costs, which can effectively reduce equipment downtime and ensure production continuity.
Product parameter
| Model |
Feeding port diameter |
Power of blower |
Air pressure of blower |
| EDS-600 |
600mm/24inch |
1.5KW |
3Kpa-25m³/m |
| EDS-800 |
800mm/32inch |
1.5KW |
3Kpa-25m³/m |
| EDS-1000 |
1000mm/40inch |
2.2KW |
3.6Kpa-39m³/m |
| EDS-1200 |
1200mm/48inch |
2.2KW |
3.6Kpa-39m³/m
|

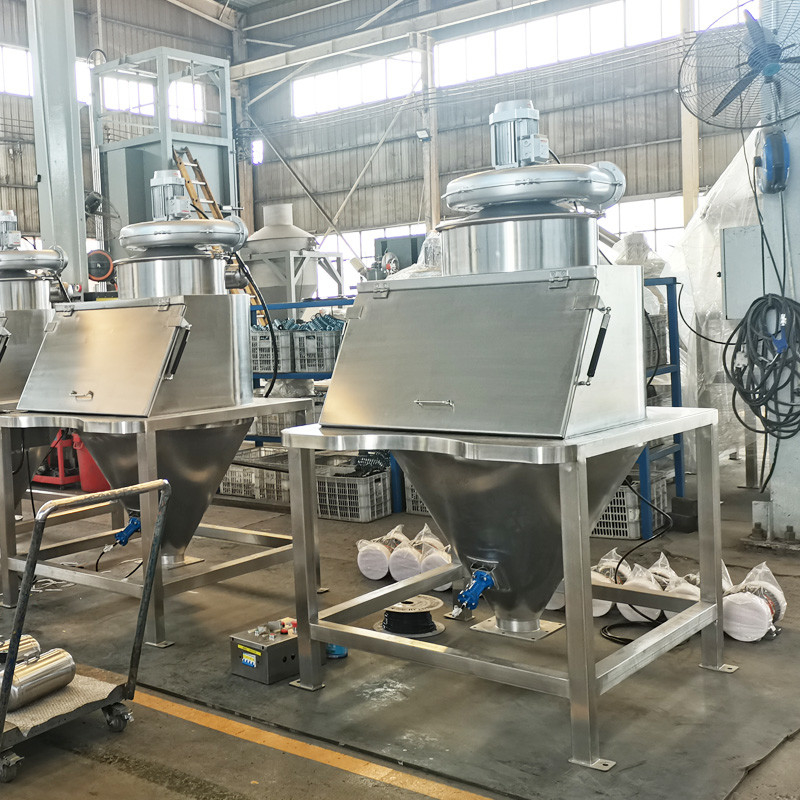

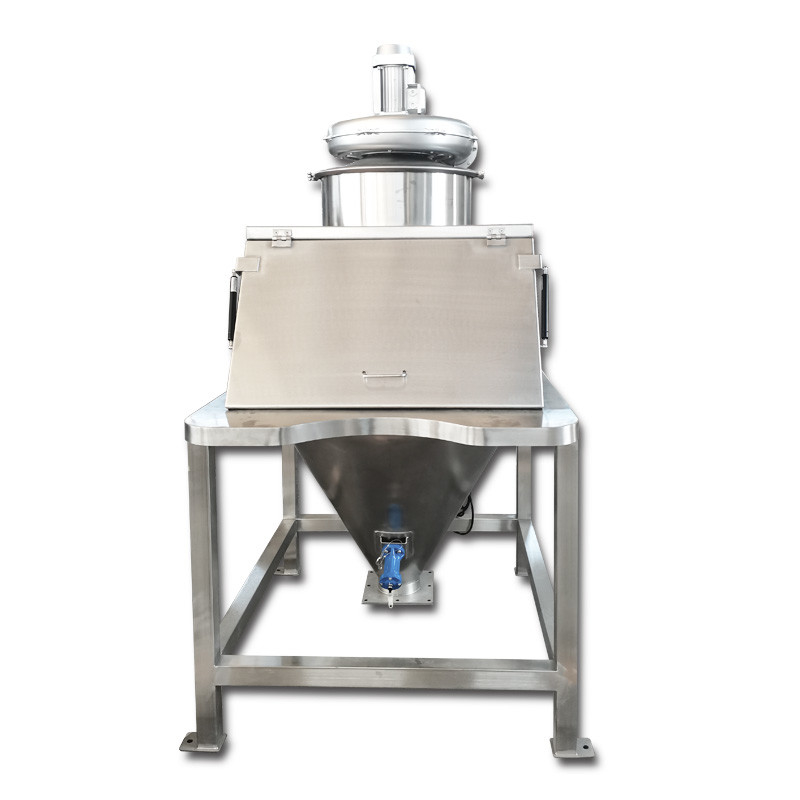

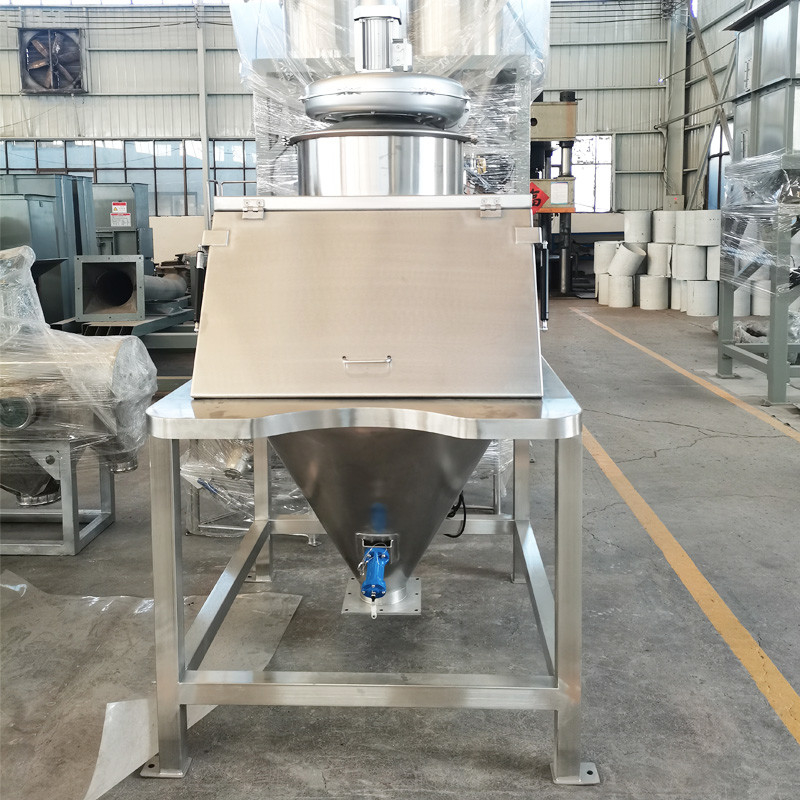

Detail display
Application
Packaging & Shipping
Why Choose Us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
