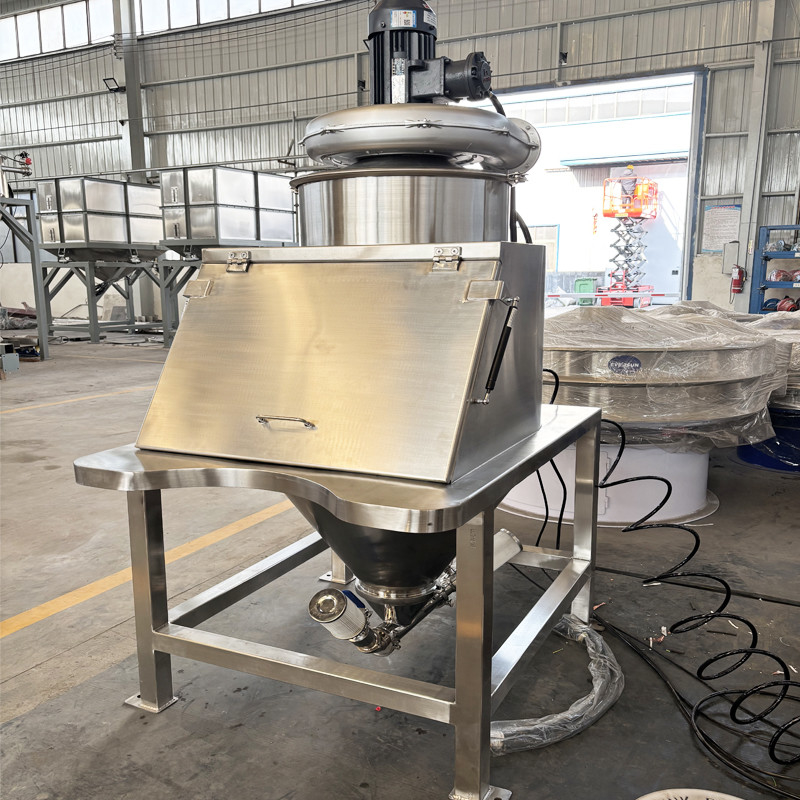

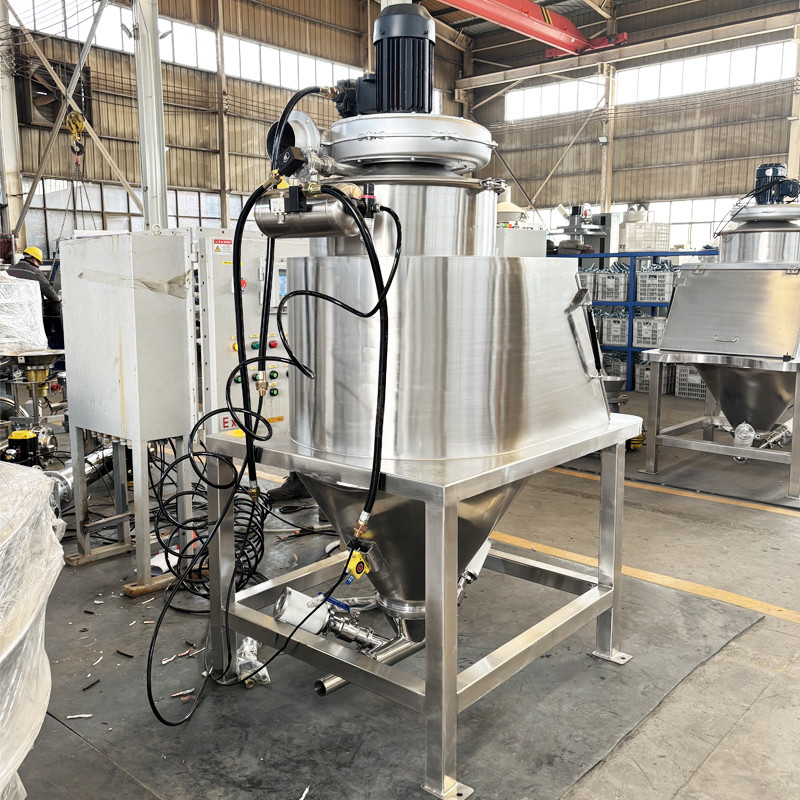

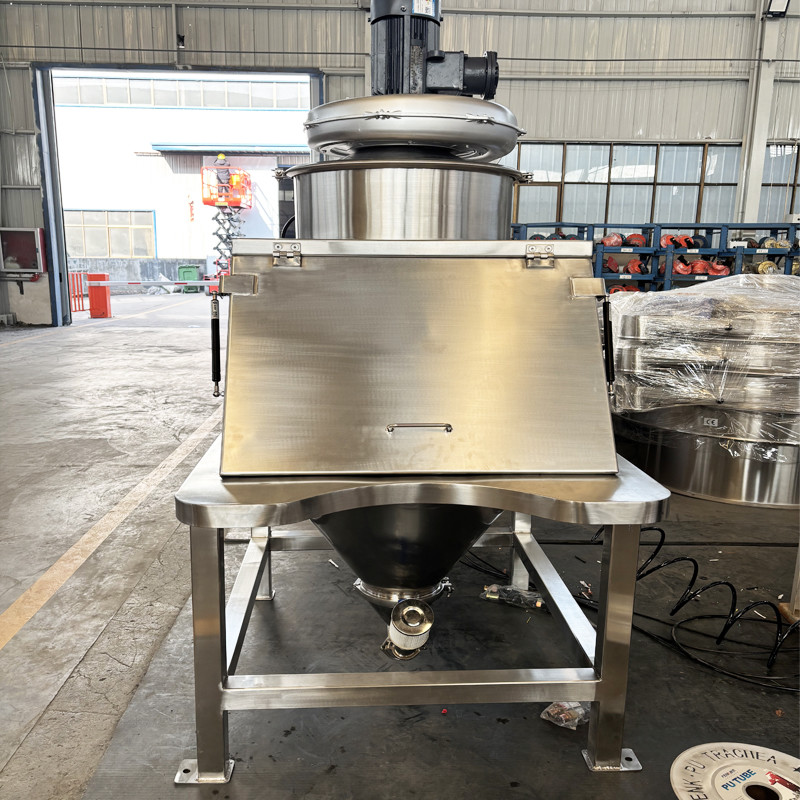

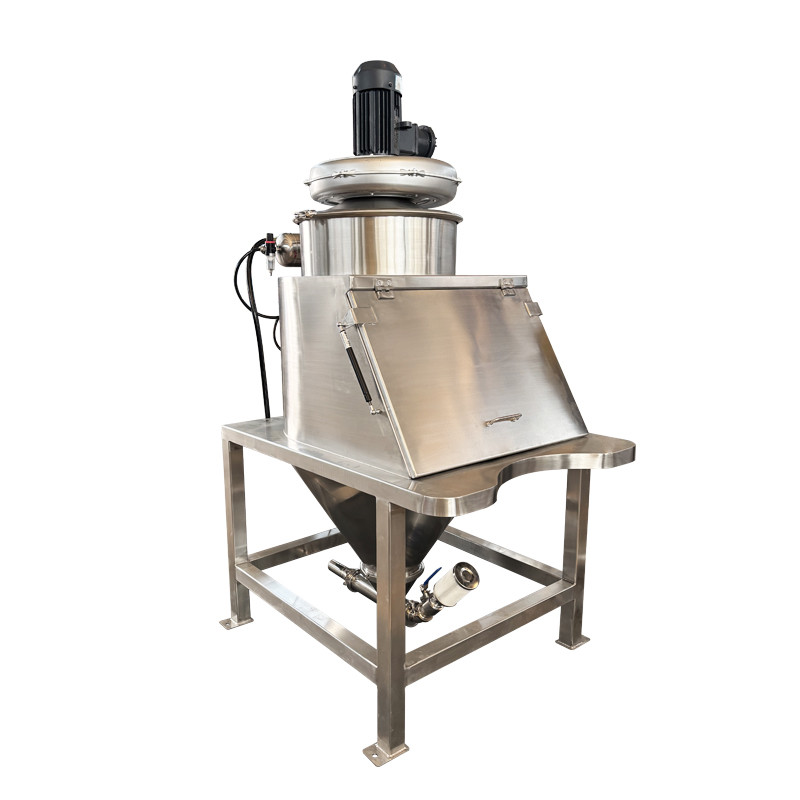

The dust-free feeding station is a new type of feeding equipment used for closed
dust collection and material discharge after manual unpacking. It can be stacked
screening equipment. The main body consists of a feeding platform, a discharge
bin, a dust removal system, a vibrating screen and other components. In the
working process of dust-free feeding station, dust-free conveying and sealed
conveying are realized, which has a positive effect on environmental protection
production and the health of operators. Application: It suitable for the unpacking,
feeding, screening and discharging of small bag materials in food, pharmaceutical,
chemical and metallurgical industries, especially for manual feeding and preing of
powdery materials.



The fan is used to generate negative pressure, and during the feeding process,
dusty gases are sucked into the equipment. For example, whenged materials are
unpacked and fed, dust is generated, and the dusty gases enter the platform box
under the action of the fan, the dust moves with the airflow the filter element, the
air passes through the filter element into the bag, and then is discharged from the
outlet through the fan, while the finer dust is retained on surface of the filter
element, achieving the separation of gas and dust. The powder material is
extracted from the storage device through the material supply system and
transported to the next stage. The supply system can use screw conveyors,
pneumatic conveying systems, or vibrating conveyors, etc., and the appropriate
supply method is selected according to the characteristics. The filling control
system is equipped with, through sensors, meters and controllers and other
equipment, the filling amount of the material is monitored and adjusted in real time
when the set target filling amount is reached, the control system automatically stops
feeding, to ensure the accuracy of the amount of powder material fed each time.



1. Dust control:
The dust-free feeding station is equipped with an efficient dust removal system, including
a negative pressure fan and a filter, which can effectively control the generation and
diffusion of dust during the feeding process, ensuring the air cleanliness in the workshop,
and avoiding dust flying and leakage.

2. degree of automation:
The dust-free feeding station is usually equipped with a smart control system, which is easy
to operate and can achieve automated feeding, sieving, conveying, improving production
efficiency and meeting the needs of continuous production.

3. Easy to clean and maintain:
The internal design of the equipment is simple, without blind spots and is easy to
disassemble and clean, ensuring the hygiene and long-term reliability of the equipment.

4. Safety:
The equipment adopts a safe mechanical support design, reduces the labor intensity of
operators, and at the same time ensures the safety of operation and the compliance with
environmental protection standards, eliminating potential safety hazards.

5. Flex and adaptability: The dust-free feeding station can be customized according to
different production scenarios, suitable for feeding materials of different specifications of
small bags and large bags, and a small footprint and strong flexibility.
