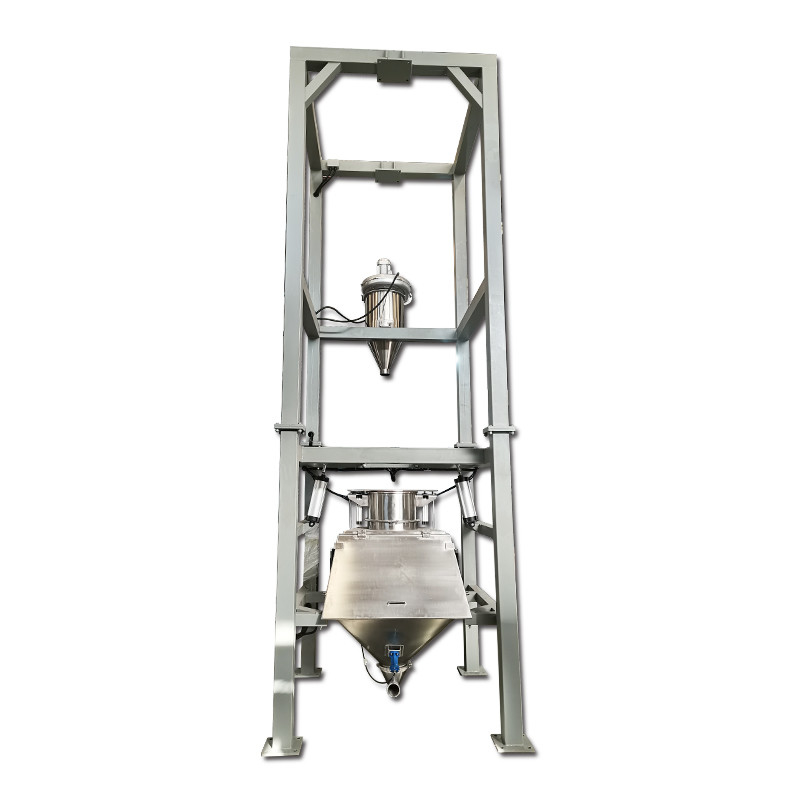

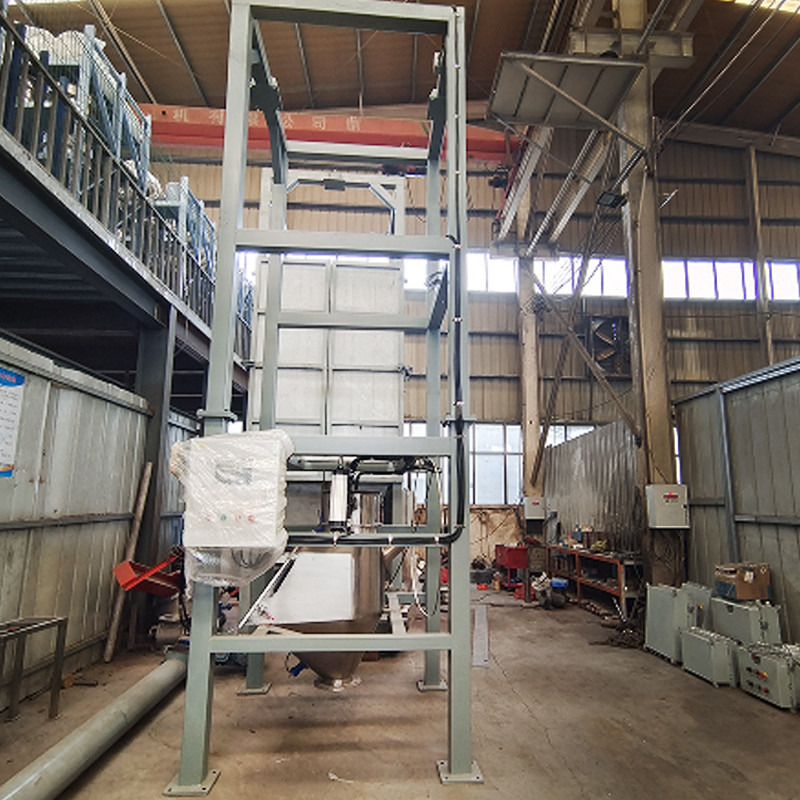

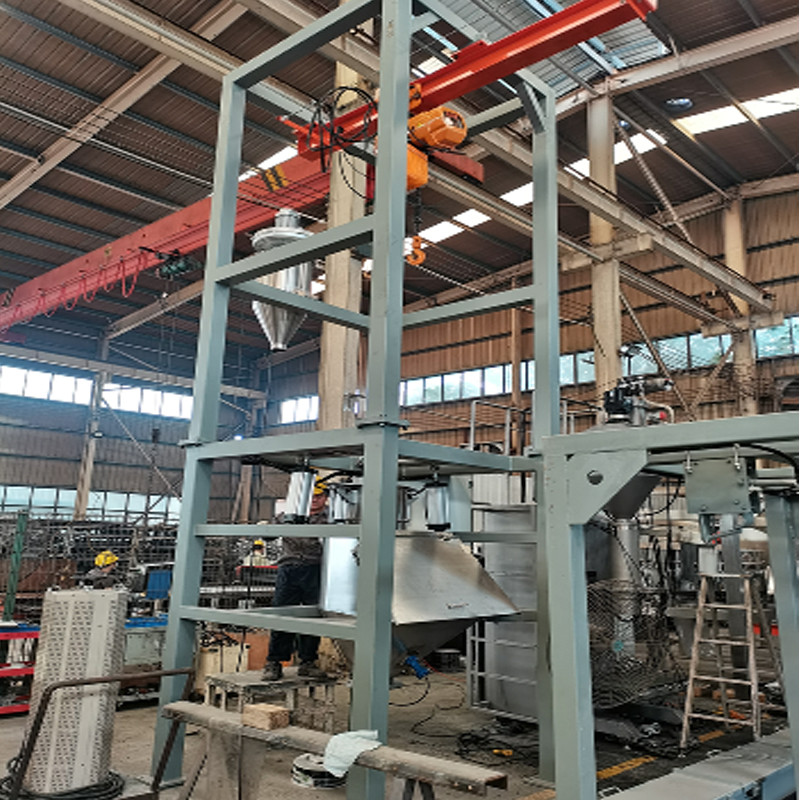

Customized Stainless Steel Ton Bag Unpacking Machine For Lime Powder Ton Bag Unpacking Conveying Equipment

The ton bag unpacking machine is mainly used for the opening and unloading of ton

bags, and its fast unloading method is suitable for various. The main purpose is to

reduce labor intensity and reduce dust. Provide a safe and sanitary working

environment. With the improvement of living standards, our requirements for

environmental protection getting higher and higher. In order to reduce the dust

generated during the unpacking process, which is harmful to the environment and

human body, it is recommended to use company's new product, the unpacking and

dust removal integrated machine.

The ton bag unpacking machine lifts the ton bag packaging material to the feed port,

and after the packaging bag discharge port is manually removed the flow control

valve and the attached vibration discharge device are opened to promote the powdery

granular material in the packaging bag to fall into the lower hopper through. The

operator places the material bag on the bracket and pushes it into the iron grid, then

the operator cuts a vertical slit in the material bag and shakes the material to empty it.

The material in the material bag can be conveyed to a feeder through the hopper. The

built-in fan recovers the dusty gas generated during the opening process, and the

automatic pulse reverse blowing dust collector is regularly cleaned. The emptied

material bags can be sent to the optional equipment, the waste bag compressor, for to

ensure the cleanliness of the site environment. During operation, its material hopper can

effectively combine with its glove box design, which effectively achieves 100% of dust

and gas from the operator, and the matched filter dust collector, star-shaped discharge

valve, etc., are used for uniform discharge.

1. Simple structure and easy operation.

2. The beating device can ensure that materials smoothly enter the next process from

large bags.

3. The breaks up lumps during the bag opening process, ensuring the smooth progress

of the next process.

4. Fully automated operation, improving production efficiency and reducing labor intensity.

5. Closed bag opening, eliminating dust flying, improving the working environment, and

reducing production costs.

6. Integrated design of bag opening, beating, crushing, and removal, with a compact

structure and convenient operation.

7. Can provide pneumatic or electric control methods, achieving remote monitoring.

Bag size application	1000x1000x1600 mm
Power Source	AC 380 v ± 5%50 Hz
Air source pressure	≥ 0.6MPa
Air consumption	≤ 0.6 m ³/min
wind volume for dust-removal	800-2500m3/h
Environment humidity	-100C-400C
Cutting capacity	10-20 bags/h (manual)

The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food,

medicine, and chemicals for unpacking and discharging bags of dry powders and granular

materials, such as plastic resins and food additives.
