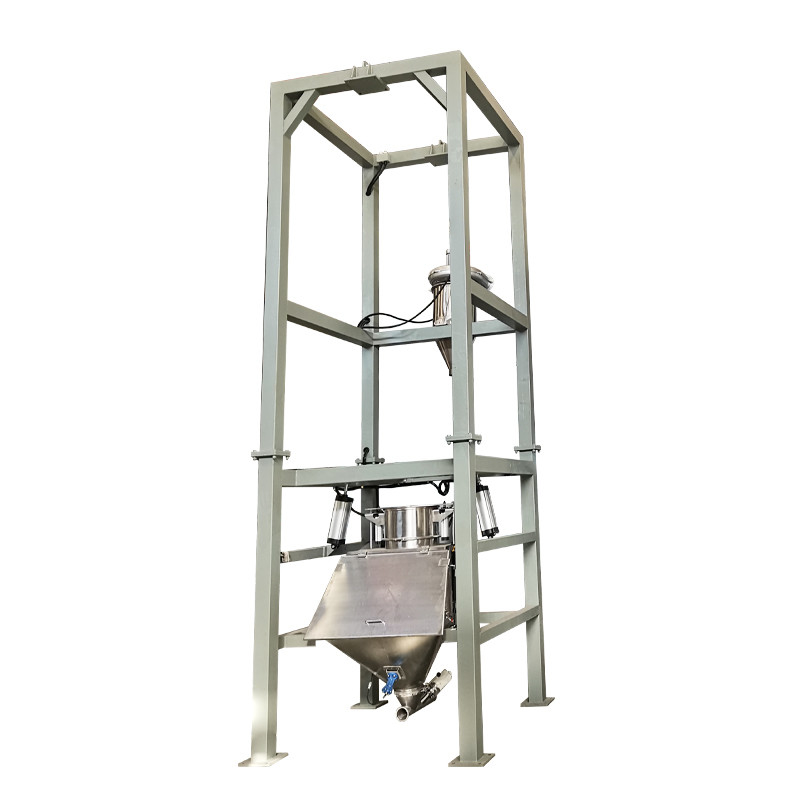

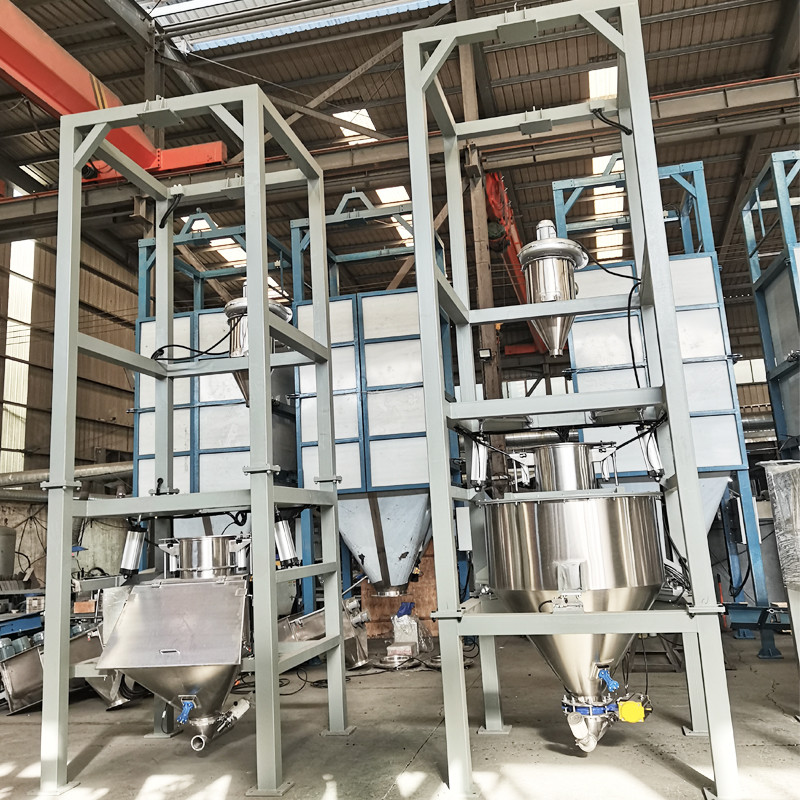

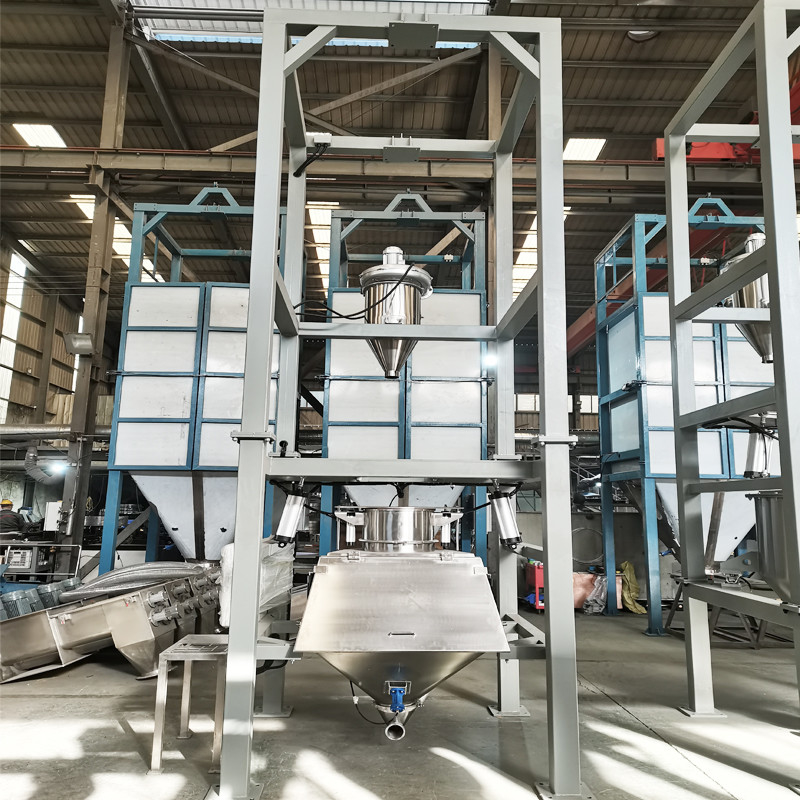

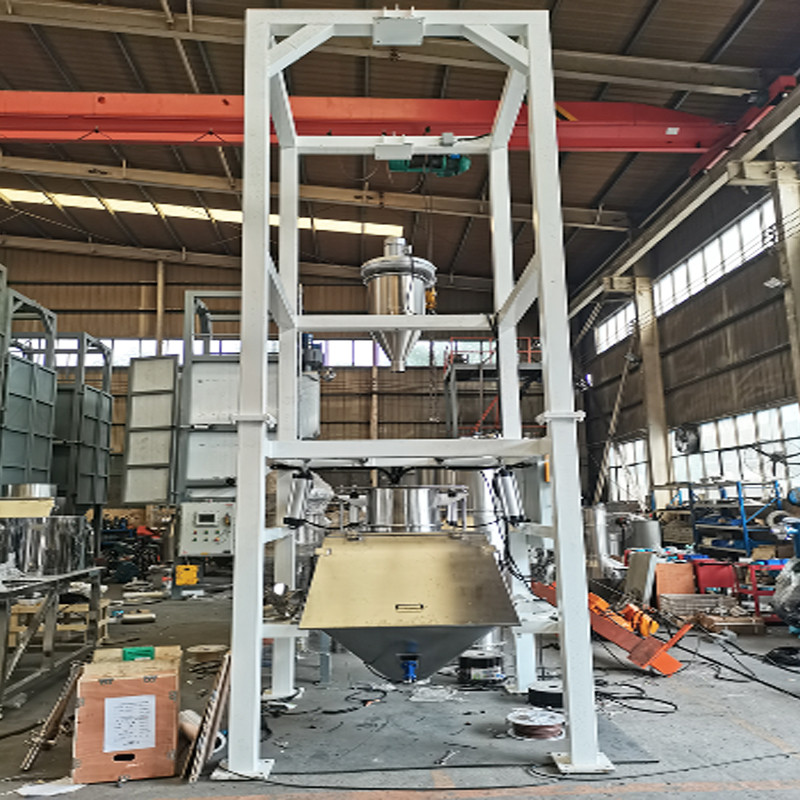

Ton Bag Feeding Station Open Type Dust-free Powder Cement Ton Bag Unpacking Machine

The ton bag unpacking machine is an unpacking machine that can environmentally

and efficiently discharge the raw materials in the ton bag into the customer's. The

traditional unpacking machine will cause a large area of material dispersion and

corresponding environmental pollution during the unpacking process. In order to

solve the influence of material dispersion the unpacking process, most modern

enterprises have begun to use mechanical large bag opening systems. The use of

such a large bag opening system can not only replace the traditional bag opening

work, but also effectively protect the environment, thereby reducing the labor

intensity of workers.

The electric hoist is fixed on the cross beam of the top frame, and can also be fixed

on the floor. The ton bag is by the electric hoist to the top of the hopper, with the bag

mouth extending into the feed port of the hopper, and then the bag clamping is

closed, the bag tying rope is untied, and the bag clamping valve is slowly opened,

and the materials in the bag flow smoothly into the hopper The materials fall from the

hopper to the lower part of the rotary valve, enter the bottom pipeline, and the

compressed air from the factory can transport the materials to destination by air power,

and the unpacking and conveying work is completed. For fine powder materials, this

set of equipment can be equipped with or connected to a dust, so as to filter the dust

generated during the pouring process, and discharge the clean tail gas into the

atmosphere, so that workers can work easily in a clean environment If it is clean

granular material with less dust content, installing a polyester filter element at the

exhaust port can achieve the purpose of dust removal, and no dust collector needed.

1. Simple structure, low production cost, and convenient operation.

2. Stable system operation, improving work efficiency.

3. Automated process, reducing labor intensity of operators.

4. Closed-type unloading, eliminating dust flying, and improving the working environment.

5. The knocking and crushing device can ensure that powder smoothly enter the

next process from large bags.

6. It can be directly connected to gloves boxes, hoppers, and other equipment for use.

7. The bag process does not generate heat, ensuring safety and explosion prevention.

Bag size application	1000x1000x1600 mm
Power Source	AC 380 v ± 5%50 Hz
Air source pressure	≥ 0.6MPa
Air consumption	≤ 0.6 m ³/min
wind volume for dust-removal	800-2500m3/h
Environment humidity	-100C-400C
Cutting capacity	10-20 bags/h (manual)

The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food,

medicine, and chemicals for unpacking and discharging bags of dry powders and granular

materials, such as plastic resins and food additives.
