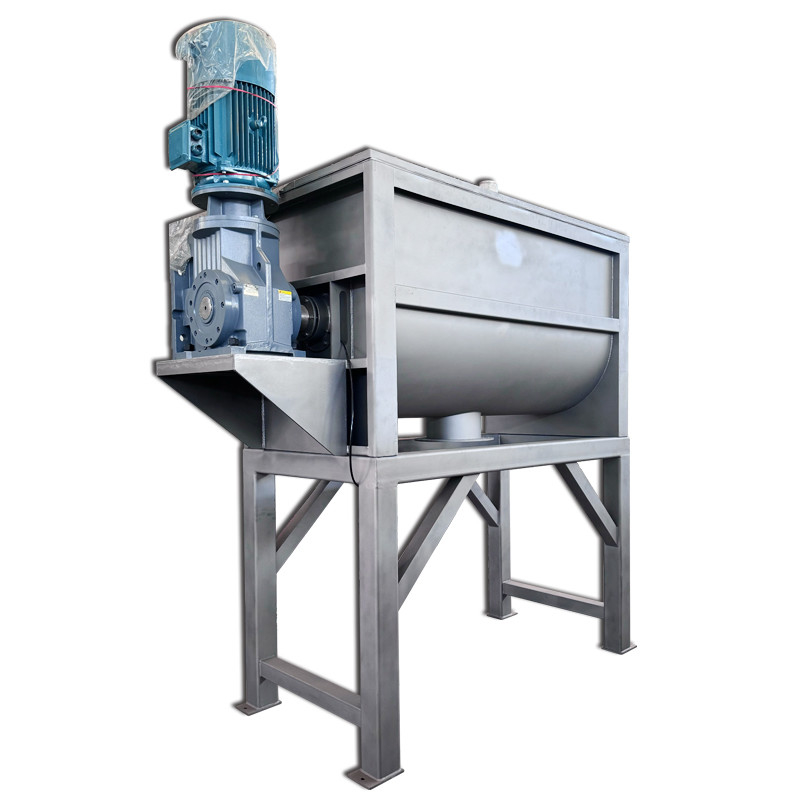

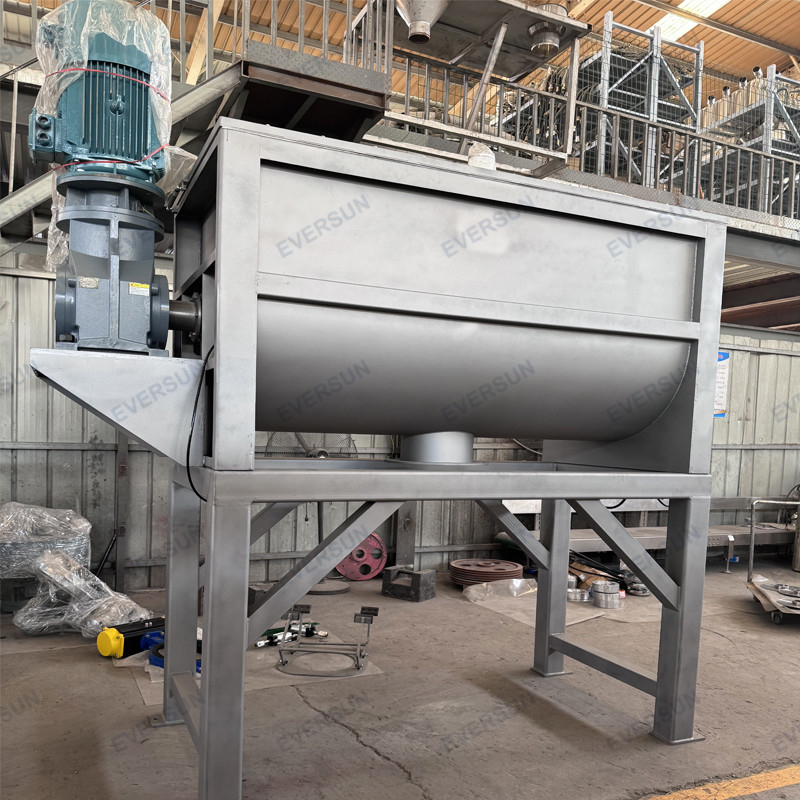

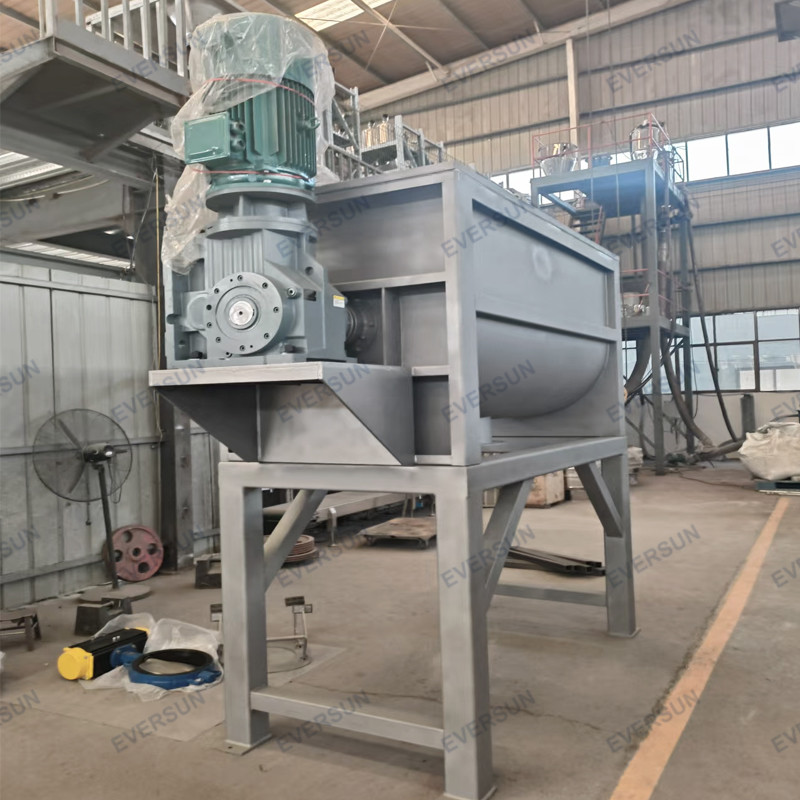

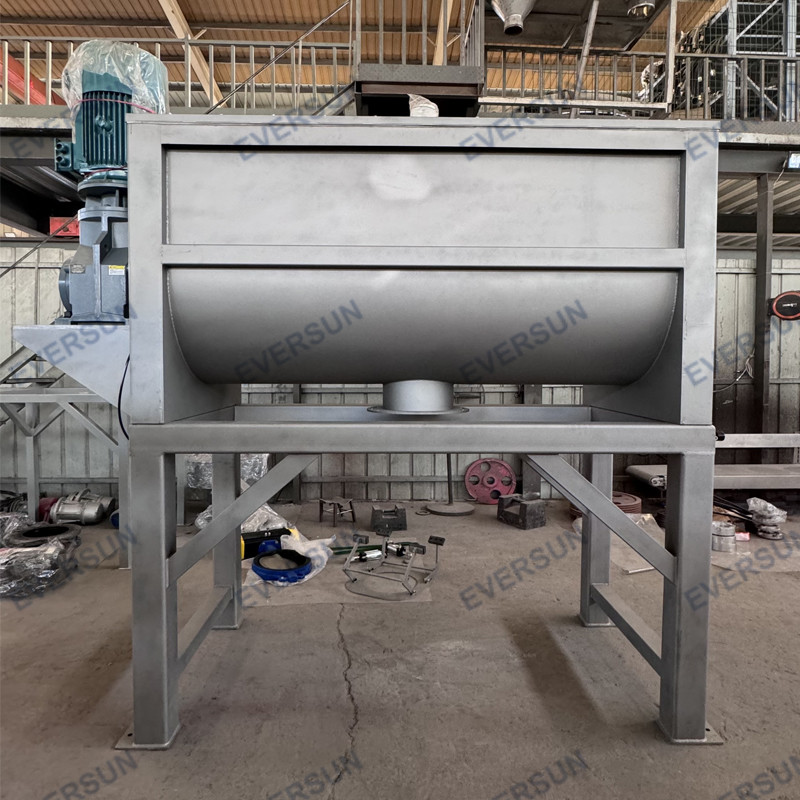

Dry And Wet Universal Screw Ribbon Mixer Stainless Steel Food Chemical Electric Mixer

The horizontal screw mixer is an advanced mixing device widely used in various industries

such as chemical and food. It adopts advanced screw stirring technology, which quickly

and evenly mix various materials, ensuring the quality and efficiency of the production

process. Compared to traditional mixing equipment, the horizontal screw mixer has better

mixing effect, applicability, easy operation, convenient maintenance, and durable reliability.

The working principle of the screw ribbon mixer is that various components of the material

are fed into the mixer according to the calculated proportions based on recipe. The

material is mixed under the push of the ribbon-shaped spiral blades. The outer screw

ribbon pushes the material from one end to the other, while the screw ribbon moves the

material in the opposite direction. The inner layer of material is pushed to one side and

then flips from inside out, while the outer layer of is pushed to the other side and then flips

from outside in. During the convection process, the two streams of material interpenetrate

and mix with each, and then mix again during the flipping process on both sides.

This process is repeated multiple times, and finally, the well-mixed material is discharged

from the door through the material control mechanism.

1. Wide application range, can be used for powder mixing, powder-liquid mixing, and

liquid-liquid mixing.

2. uniformity of mixing: It can uniformly mix materials with a ratio of 1:10000, especially

advantageous for mixing materials with large density differences.

3. Fast mixing speed and high efficiency. It is 6-10 times or more efficient than other mixers.

4. Fast and convenient discharge, finishing a batch within 2-5 minutes.

5. Gentle mixing process, basically maintaining the original state of the materials.

6. Minimal pollution to the materials with an integrated stirring mechanism, safe and reliable,

all corners and welds are smoothly transitioned, easy to clean; lubrication parts are all

outside the bucket no oil or grinding debris will mix into the materials, allowing sealed

operation and preventing dust from entering the materials.

7. Low energy consumption and high loading coefficient.

8. Low factory requirements, the equipment is horizontal, and various forms of drive devices

and discharge positions can be freely chosen, not constrained by factory height or area.

9. Stable and reliable operation of the equipment, few consumable parts, long service life,

easy maintenance and simple operation.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500



Mixing with a screw ribbon mixer not only takes a short time but also has good mixing

results, and it is a highly practical mixing device. is usually used for mixing powders with

powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide,

dye, chemical and plastic industries.







Company Profile

We have been specializing in the production of Screening and conveying equipment for

13 years. China's vibrating screen industry top three. And we have done matching and

OEM for many large companies. Including the world's top vibrating screen manufacturer,

Sweco, USA, we have OEM for his China region. And our products are often exported to

Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
