Stainless Steel Horizontal Powder Mixer Coating Chemical Powder Mixer

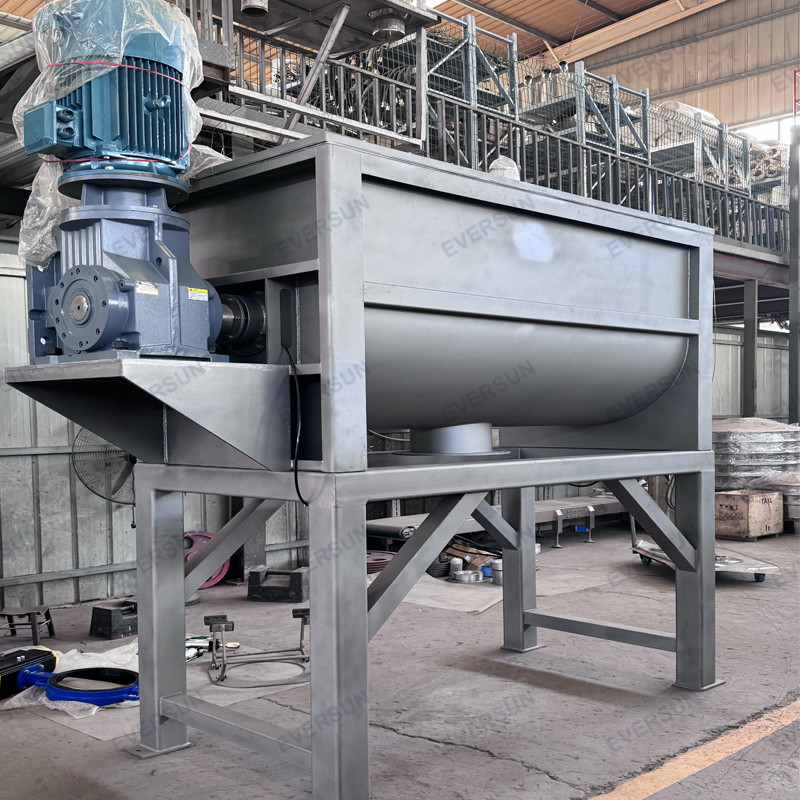

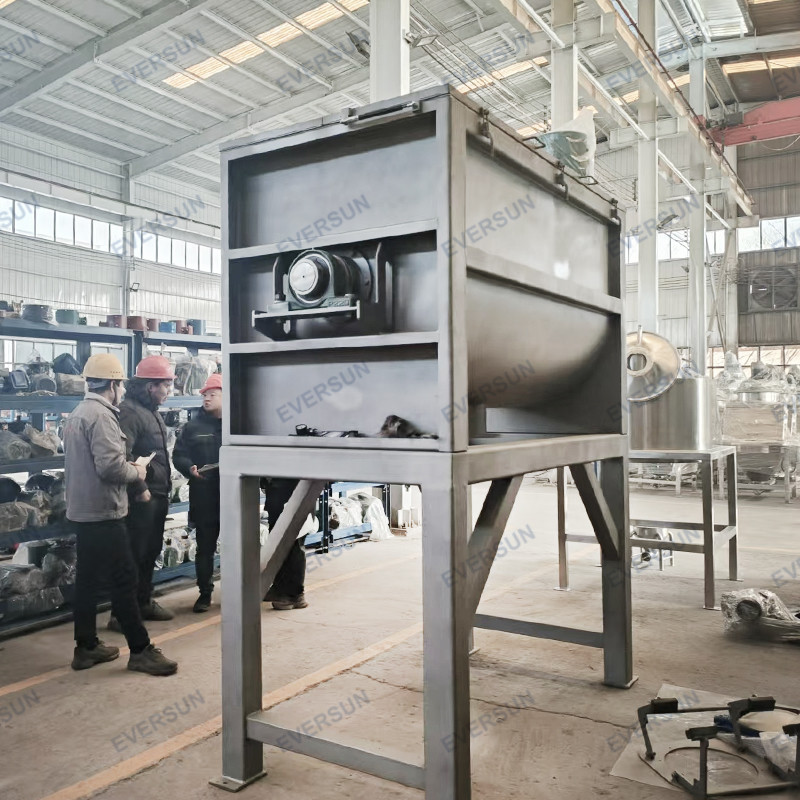

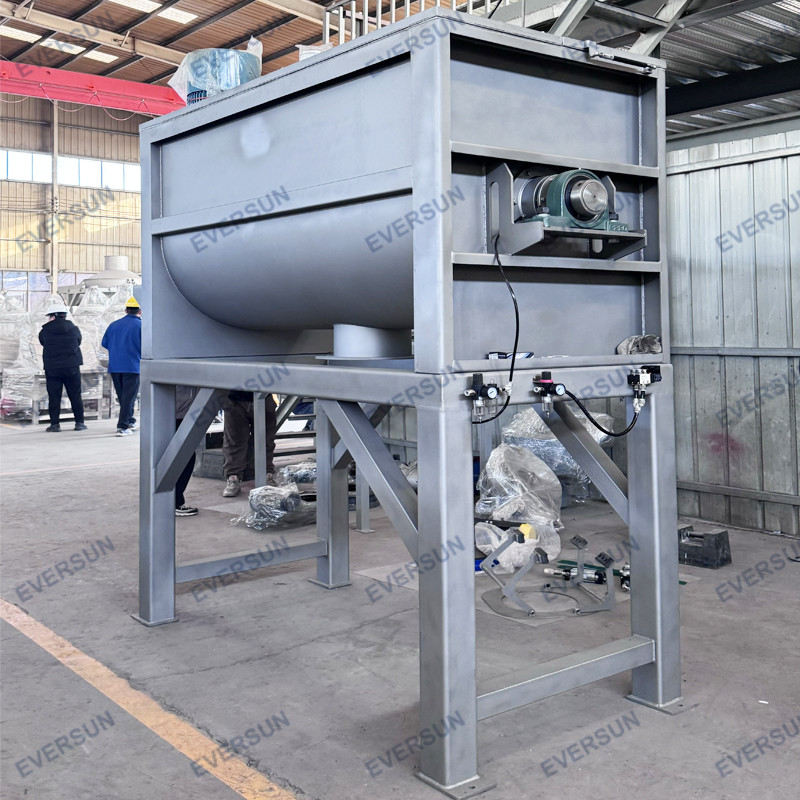

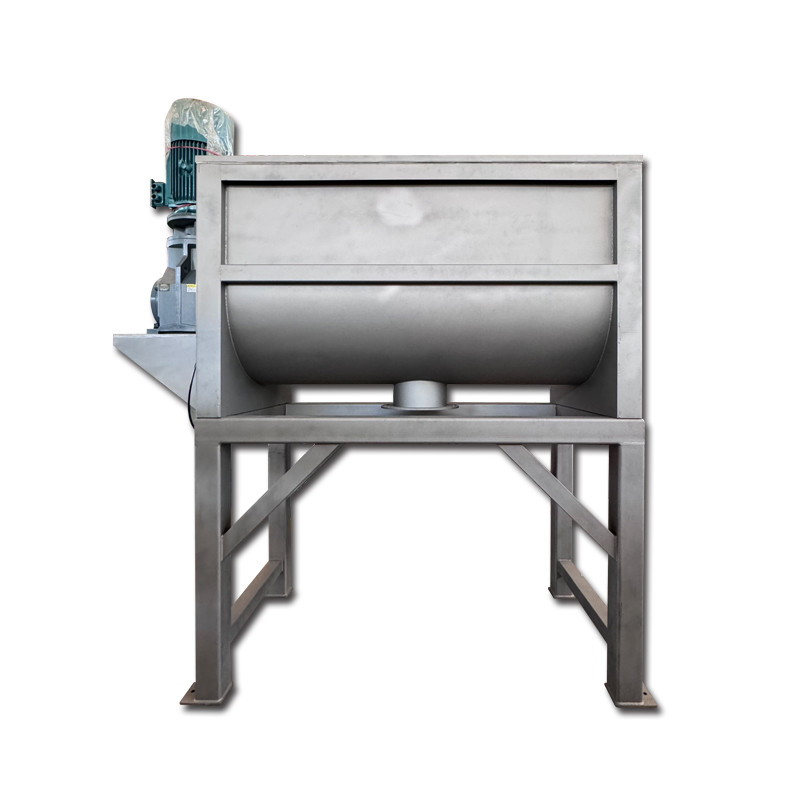

The horizontal screw mixer consists of a U-shaped container, screw stirring blades, and

transmission components. The U-shaped long cylindrical structure ensures that the

materials (powders, semi-liquids) move with low resistance within the cylinder. The positive

and negative rotating screws are installed on the same horizontal shaft, a low-power and

high-efficiency mixing environment. The screw blades are usually made in two or three

layers. The outer layer of the screw pushes the material from sides to the center, while the

inner layer of the screw pushes the material from the center to both sides, which can create

more eddies in the flowing. This speeds up the mixing speed and improves the uniformity of

the mix.

Under the action of the spiral ribbon on the agitator shaft, the inner and outer spiral

ribbons turn over the material in a large, the inner spiral ribbon moves the material to both

sides, the outer spiral ribbon moves the material from both sides to the inside, so that the

material is mixed and forth. In addition, some of the material is pushed by the spiral ribbon

to move axially and radially, thus forming a convective cycle. The material quickly and

evenly mixed in a short period of time.

1. Flexible disassembly: The main shaft of the screw needs to be connected to the flange of

the drive shaft When maintaining or repairing the horizontal screw mixer, or when changing

the type of stirring shaft, the entire disassembly is very quick. Because the design of the dis

is very convenient, the U-shaped cylinder and the two end plates can be completely welded,

avoiding the accumulation of materials due to the large size of the cylinder and existence of

gaps when connected to the flange. This also better reduces the possibility of residues.

2. Convenient cylinder cover design: The overall design of the cylinder is more flexible,

meeting the requirements of half-open, fully open, and completely closed. The fully open

design is more suitable for occasions with higher cleanliness requirements. cylinder cover

door is supported by gas springs, providing higher safety.

3. Driving advantage: All products are selected according to standard requirements. The

driving method uses a-connected gear reducer. Although this design has a large torque, it has

good reliability and very low noise. For larger mixers, a belt transmission design is added In

case of accidents, the transmission components can be effectively protected.

4. Stable mixing process: A stable mixing process reduces damage to fragile materials, and

the addition a flying knife structure also serves a crushing function.

5. Not affected by particle size: Under feasible factors, the mixing effect of the horizontal screw

mixer is not by the size or density of the particles. It also has a good mixing effect on viscous

materials.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500



Mixing with a screw ribbon mixer not only takes a short time but also has good mixing

results, and it is a highly practical mixing device. is usually used for mixing powders with

powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide,

dye, chemical and plastic industries.
