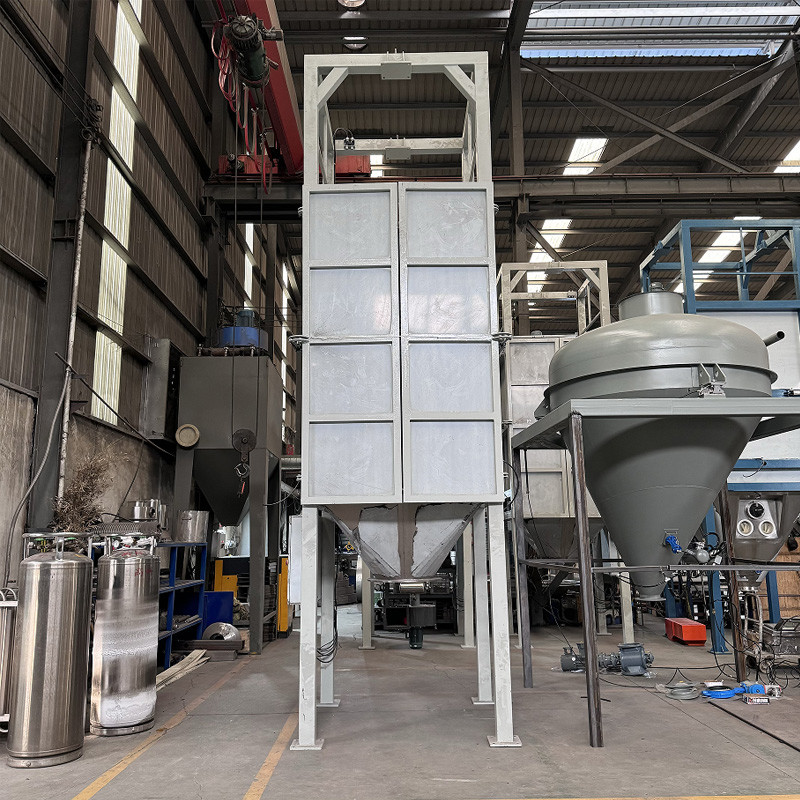

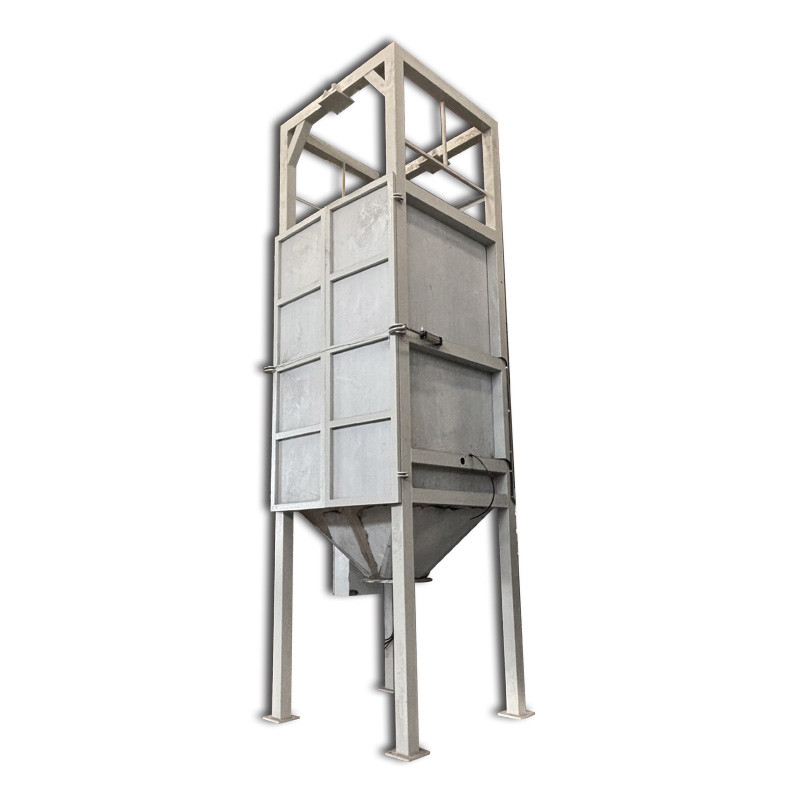

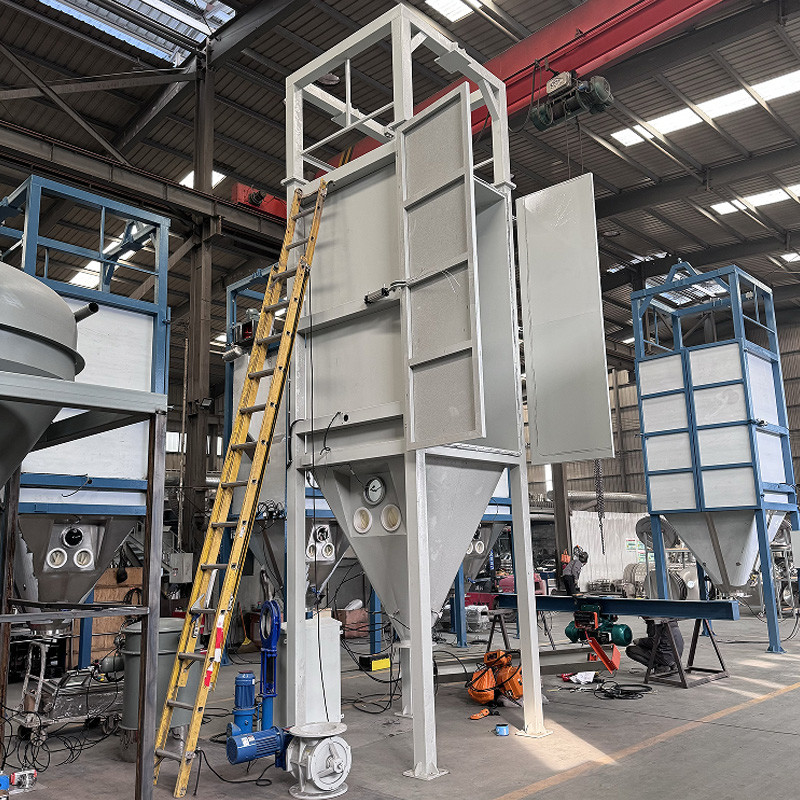

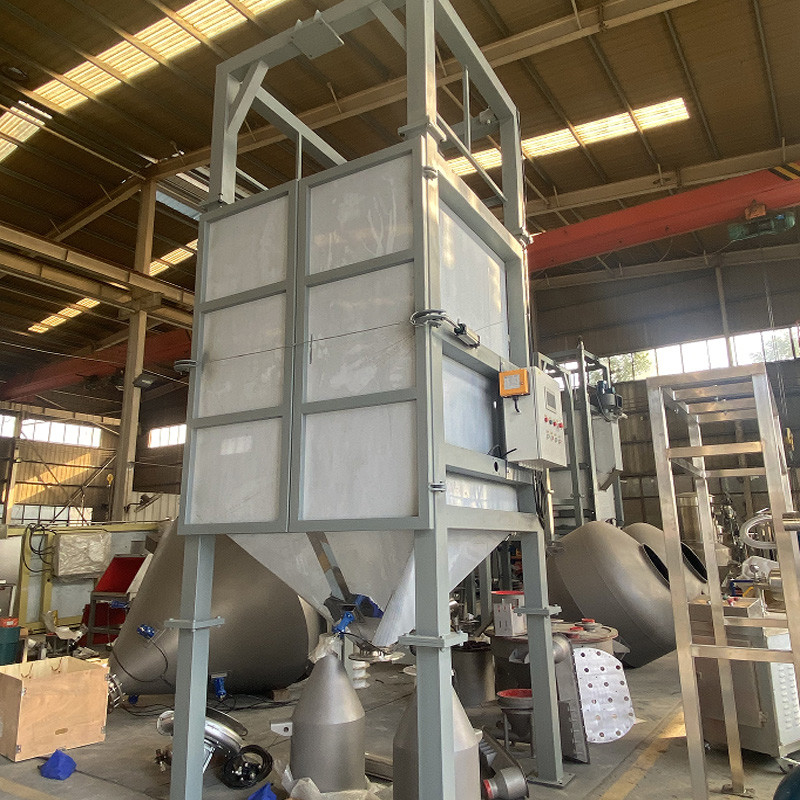

The ton bag dumping station is a powder equipment used for unloading materials.
Many raw materials are packaged in ton bags (space bags) convenient
transportation and storage, so the ton bag dumping is extremely important in the
entire production process. The ton bag dumping station is also known as a ton
bag un or ton bag splitter. To prevent environmental pollution and health hazards
to workers caused by dust during the opening of ton bags, most companies now
use ton bag dumping stations opening ton bags. The ton bag dumping station
mainly consists of a lifting mechanism (optional), a bag tapping mechanism, a bag
opening device, a dust removal device a ton bag dumping frame, an electrical
control system, and other components.
The ton bag is manually hung on the hoist, then the hoist rises to lift the ton bag.
During the descent of the bag, the bag opening is manually untied (for ton bags
that need to be recycled and reused) or directly cut open with the built-in
cross-shaped cutting (optional). After the packaging bag's discharge port is
untied, the flow control valve and the attached vibrating discharge device are
opened to facilitate the flow of gran material inside the packaging bag into the
hopper below due to its own weight. The material falls into the storage hopper
under its own gravity to complete the un work. This not only reduces the labor
intensity during the bag breaking process but also solves the problem of ton bags
becoming clogged and difficult to discharge due to moisture during the bag
opening process.
1. Equipment frame;
2. Electric hoist; (can also use customer's own overhead crane, forklift, etc.)
3.Tonne bag hoist;
4. Bag clamping device;
5. Crushing, patting, vibrating, magnetic separation device (optional);
6. Transitional bufferper;
7. Inlet can connect to: iris valve, necking device;
8. Outlet can connect to: rotary unloader, butterfly valve, slide, vacuum loader,
screw conveyor, chain conveyor, manual feeding station, batching and metering
equipment, hopper, silo, pneumatic conveying system, etc
1. Improve work efficiency: The bulk bag filling station can quickly and accurately
place materials into the target position, greatly improving work efficiency.
Compared to manual filling, the bulk bag filling station can complete the filling task
more quickly, reducing the waste of human resources.
2. Reduce labor: The automated characteristics of the bulk bag filling station
significantly reduce the labor intensity of operators. Traditional material filling
methods require operators to perform a large amount of physical labor while the
bulk bag filling station can replace humans to complete these tasks, lightening the
burden on operators.
3. Improve filling accuracy: The bulk bag filling station advanced control systems
and sensors to monitor the filling situation in real time, ensuring the accuracy and
precision of the filling. This is particularly important for industries that require high
in material filling, such as chemical and pharmaceutical fields.
4. Reduce material waste: The bulk bag filling station can fill materials according to
the set filling amount, overfilling or underfilling, thus reducing material waste. This
is particularly important for some high-cost materials, helping companies save costs.
5. Improve safety The automated operation of the bulk bag filling station can reduce
the risks of manual operation, lowering potential safety hazards at work. Operators
no longer need to directly contact the, reducing the possibility of injury. Additionally,
the bulk bag filling station can be equipped with safety protection devices to ensure
the safety of the operation process.
6. environmental protection effect: The bulk bag filling station can effectively control
dust during the operation process, avoiding environmental pollution. Meanwhile,
some bulk bag filling stations adopt environmentally friendly energy-saving
technologies, reducing energy consumption and emissions.
| Bag size application |
1000x1000x1600 mm |
| Power Source |
AC 380 v ± 5%50 Hz |
| Air source pressure |
≥ 0.6MPa |
| Air consumption |
≤ 0.6 m ³/min |
| wind volume for dust-removal |
800-2500m3/h |
| Environment humidity |
-100C-400C |
| Cutting capacity |
10-20 bags/h (manual) |
The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food,
medicine, and chemicals for unpacking and discharging bags of dry powders and granular
materials, such as plastic resins and food additives.
Company Profile
We have been specializing in the production of Screening and conveying equipment for
13 years. China's vibrating screen industry top three. And we have done matching and
OEM for many large companies. Including the world's top vibrating screen manufacturer,
Sweco, USA, we have OEM for his China region. And our products are often exported to
Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
