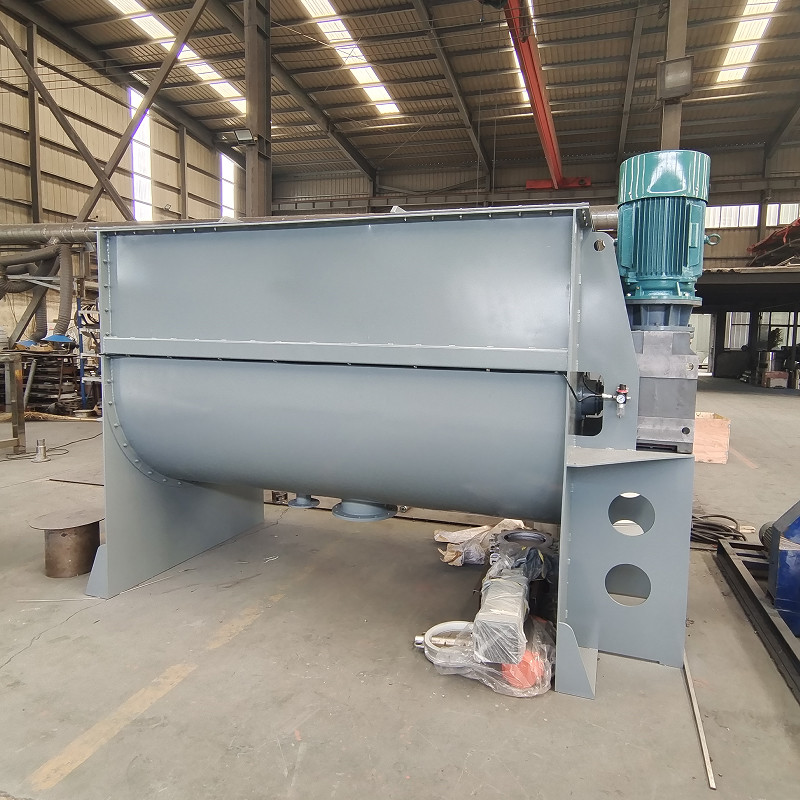

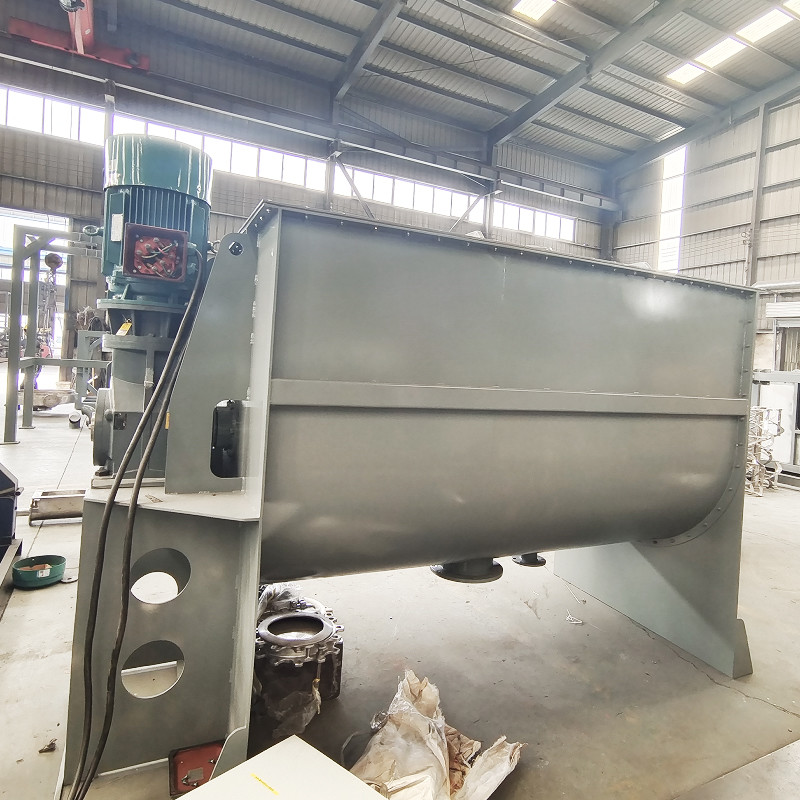

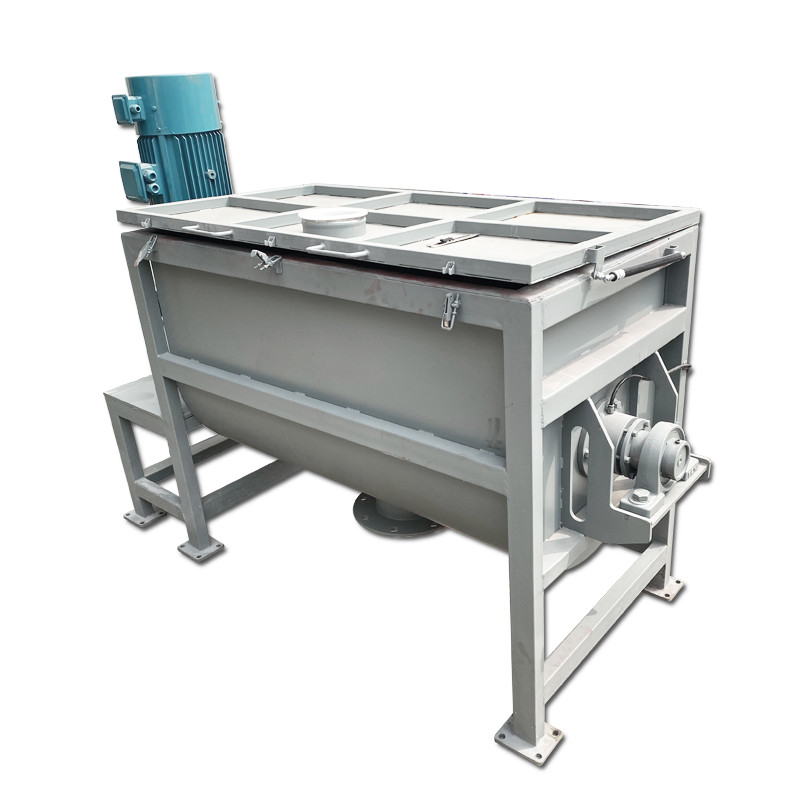

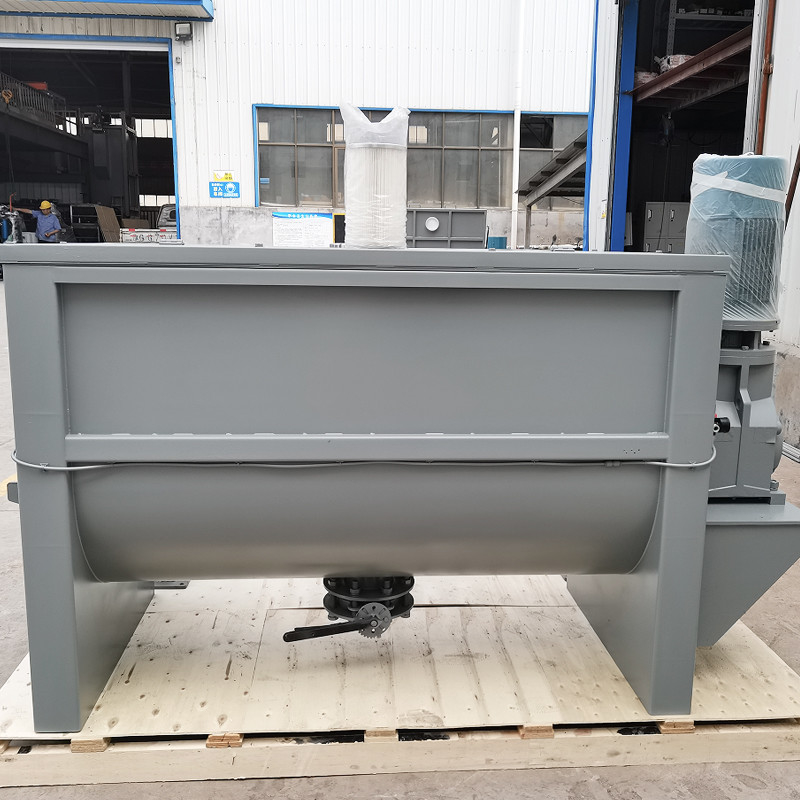

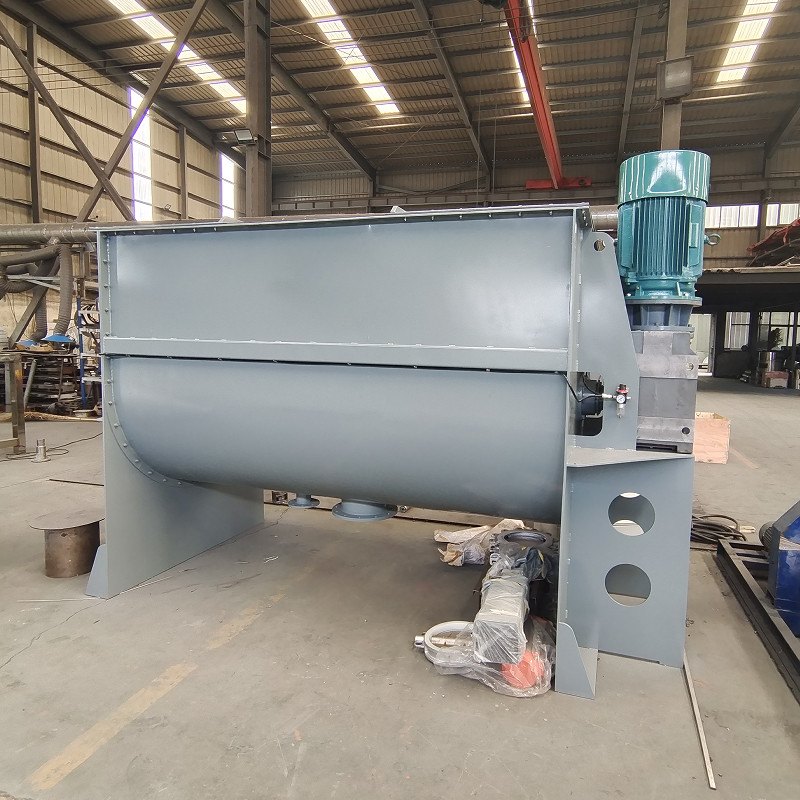

Custom-made Multifunctional Horizontal Twin-screw Band Stainless Steel Chemical Dry Powder Mixing Machine

The horizontal screw mixer is suitable for mixing powders with powders, granules with

powders, and powders with small amounts of liquids It is widely used in the chemical, food,

feed, plastic, and building materials industries, and can be made according to GMP

standards. This machine has wide adaptability to mixtures, can mix viscous materials evenly,

can maintain the integrity of granular materials as much as possible, and can mix materials

with ratio difference of 1:1000 to 10000. This machine can also be customized to make

heating, cooling, positive pressure vacuum, and other special forms according to user

requirements.

Once the horizontal screw mixer is started, the transmission device drives the screw blades

to rotate at high speed inside the mixing drum, while causing mixed material to undergo

shearing and squeezing. The inner screw transports the material to the outer side, while the

outer screw gathers the material towards the inner side. structure allows the material to

continuously flow from the top to the bottom, and from the bottom to the top, forming a

convective circulation. Under the convective of the double-layer screw bands, a low-power

and high-efficiency mixing environment is formed. In a short period of time, the material can

achieve rapid and mixing. If liquid or other solid materials need to be added, they can be

added through the feeding port on the equipment. After the mixing is completed, open

discharge port, and the mixed material will automatically flow out of the mixing drum.

1. Good mixing effect: The use of spiral-shaped mixing blades allows the mixed materials to

be fully turned and impacted during the process, thus achieving a fast, uniform, and thorough

mixing effect.

2. Wide mixing range: It can be used for mixing various dry powder materials, includingules,

powders, and pastes, with a wide mixing range that can meet the mixing needs of different

fields.

3. Easy operation: The operation is simple; you just need to add the mixed materials into the

mixer, turn on the power, set the mixing time and speed, and then start mixing. The is simple

and convenient.

4. Energy-saving and environmental protection: During the mixing process, due to the structural

characteristics of the mixer, the mixed materials can be mixed, thus reducing the mixing time

and energy consumption, which is energy-saving and environmentally friendly.

5. Easy maintenance: The structure is simple and easy to maintain At the same time, it is made

of high-quality materials, with high reliability, low failure rate, and low maintenance cost.

6. Unique discharge form: common discharge form is a pneumatically operated flap valve. The

valve is designed with an arc shape that fits perfectly into the cylinder, maintaining the same

level as the wall of the cylinder. Therefore, there will be no accumulation of materials or mixing

dead zones. The sealing effect is better with a strip design, ensuring no leakage with frequent

opening and closing.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500



The product has a wide range of applications, capable of mixing powders withpowders,

powders with liquids, and especially able to stir paste, viscous, or high-density materials (such

as putty, texture paint, metal powder, etc.). It is widely used in pharmaceuticals, food,, dyes,

chemicals, plastics, ceramics, coatings, putty, mortar, and other fields.
