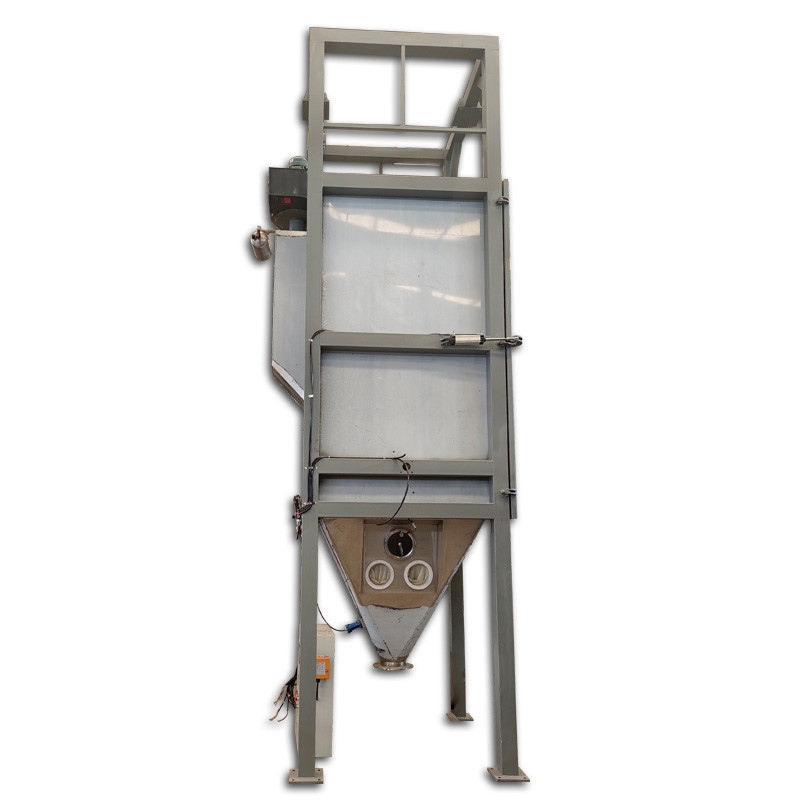

The ton bag dumping station is mainly used for opening and unloading ton bags (ton
bags) of powdered and granular materials. This equipment has advantages of low
power consumption, good sealing effect, fast bag opening and unloading, free setting
of stop and release time (does not affect the characteristics of unused), and reduces
the labor intensity of workers.
The material is lifted to the feeding platform by the electric hoist, and the discharge
port of the packaging bag is manually or automatically opened. unpacked powdered
material enters the downstream equipment of the feeding platform by its own weight.
During this process, the dust is attracted into the filter room by a powerful pressure
airflow, and then blocked on the outer surface of the filter element. The clean gas is
discharged through the inside of the filter element and then by the fan achieving
dust-free operation and operation on-site.
1. Equipment frame;
2. Electric hoist; (can also use customer's own overhead crane, forklift, etc.)
3.Tonne bag hoist;
4. Bag clamping device;
5. Crushing, patting, vibrating, magnetic separation device (optional);
6. Transitional bufferper;
7. Inlet can connect to: iris valve, necking device;
8. Outlet can connect to: rotary unloader, butterfly valve, slide, vacuum loader, screw conveyor, chain conveyor, manual feeding station, batching and metering equipment, hopper, silo, pneumatic conveying system, etc
★The structure of the bag opening station is simple and easy to operate;
★It is easy to transport the ton bag to the unpacking using an electric hoist or forklift;
★Convenient material handling, the material flows in a closed space without dust
leakage;
★The patting device the material flow out of the ton bag, and the vibrating device is
used to break the arch;
★Materials can be taken in small amounts multiple times, and can also be used as a
storage bin;
★It can achieve volumetric measurement and weight measurement;
★The automatic control system realizes continuous unpacking;
★It be made according to explosion-proof requirements.
| Bag size application |
1000x1000x1600 mm |
| Power Source |
AC 380 v ± 5%50 Hz |
| Air source pressure |
≥ 0.6MPa |
| Air consumption |
≤ 0.6 m ³/min |
| wind volume for dust-removal |
800-2500m3/h |
| Environment humidity |
-100C-400C |
| Cutting capacity |
10-20 bags/h (manual) |
The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food,
medicine, and chemicals for unpacking and discharging bags of dry powders and granular
materials, such as plastic resins and food additives.
Company Profile
We have been specializing in the production of Screening and conveying equipment for
13 years. China's vibrating screen industry top three. And we have done matching and
OEM for many large companies. Including the world's top vibrating screen manufacturer,
Sweco, USA, we have OEM for his China region. And our products are often exported to
Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
