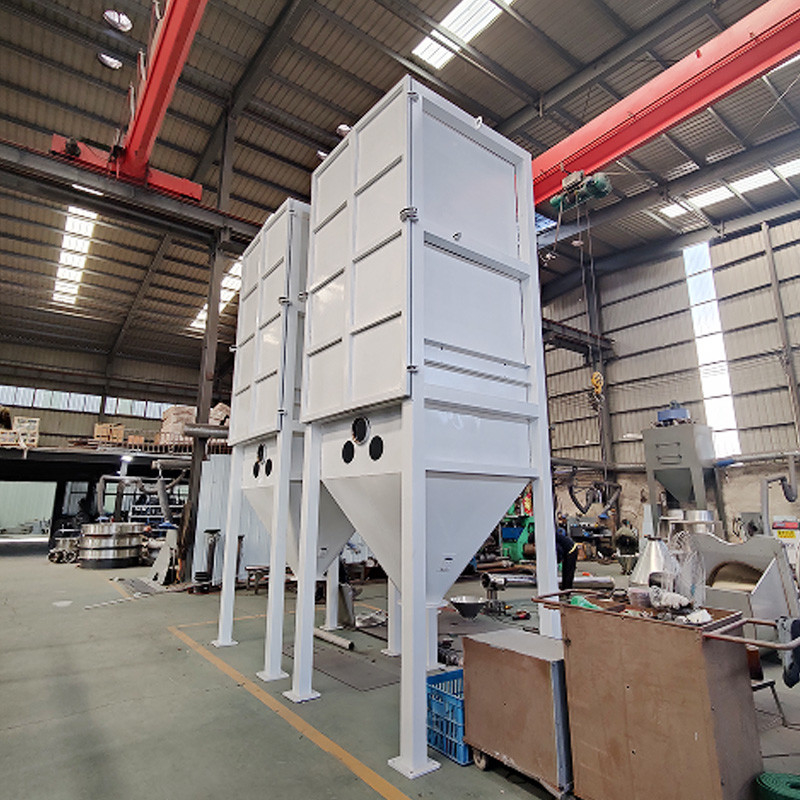

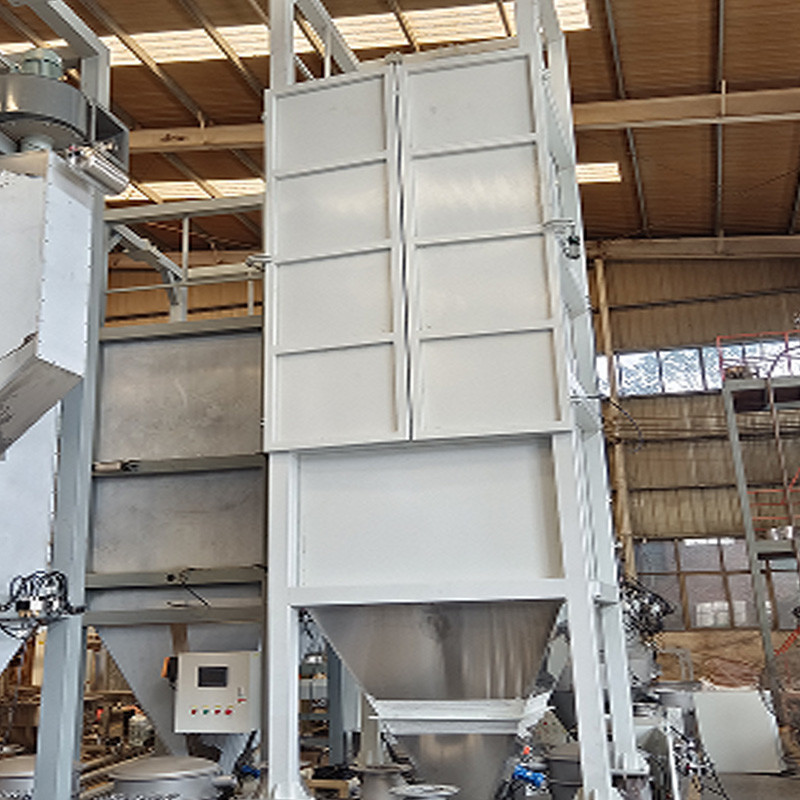

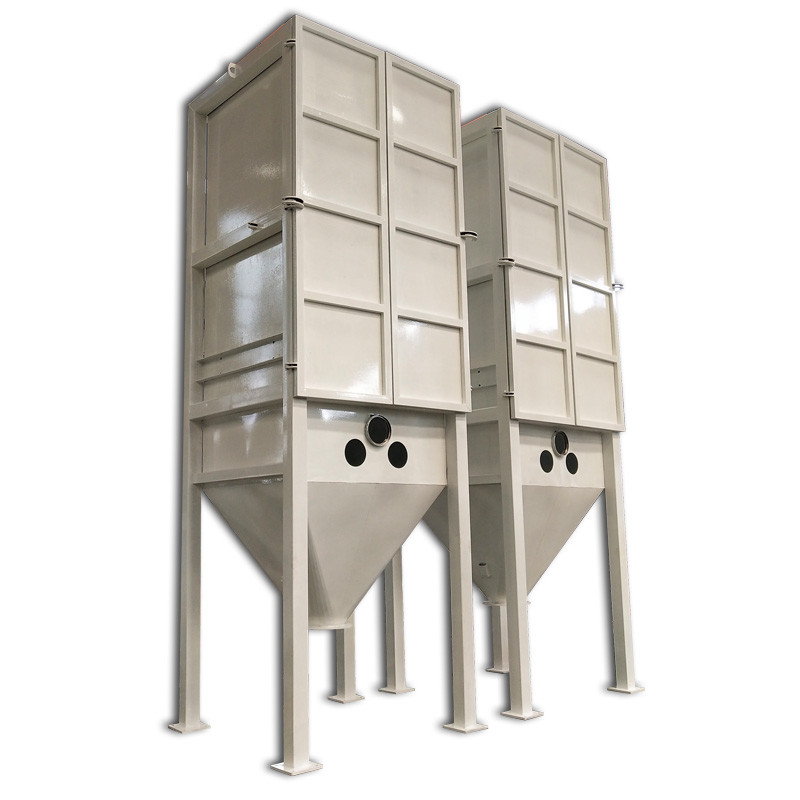

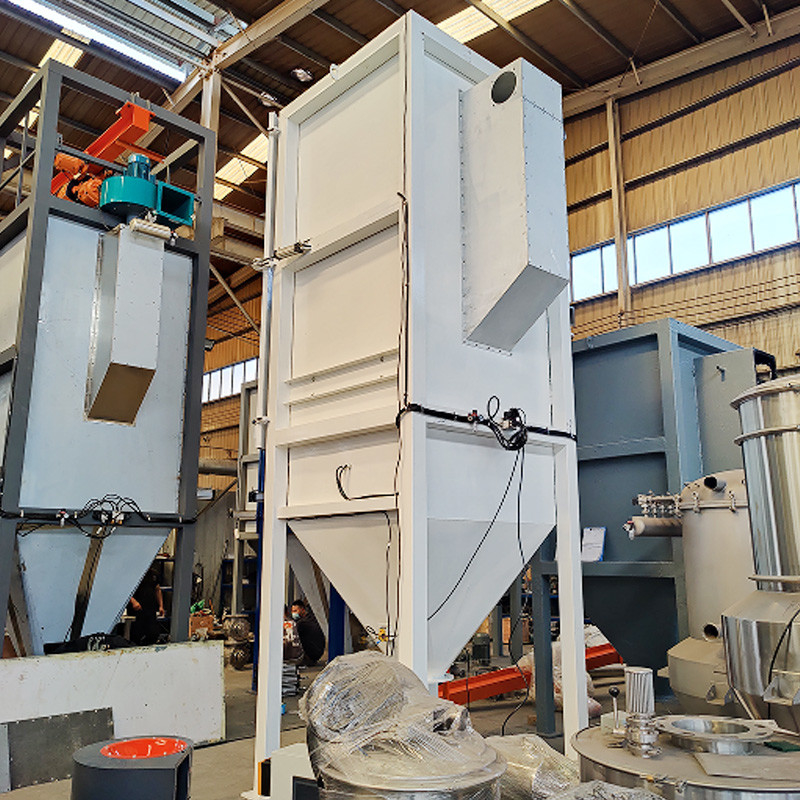

sealed stainless steel bulk bag unloading station for industries

The ton bag is lifted to the equipment inlet by the electric hoist, the built-in blades open the

ton bag and assist with the patting to make the powdery material in the ton bag fall into the

material bin by gravity, thus completing the unpacking and unloading work. And it can

connected to the conveying equipment through the conveying pipeline at the bottom to

output the material to the position.

This bulk bag opening system not only protects the production environment, the work

intensity of laborers, and production efficiency, but also solves the problems of lumping,

material bridging, and difficulty in discharging materials due to moisture absorption during

the opening of bulk bags.

The material packaged in bulk bags is lifted to the feed port by an electric hoist, and

the bulk bags are automatically cut open by a device. The cut-open bags and

material slide into the drum screen for material screening. This ensures that there is

no dust. Some materials, such as fertilizers tend to absorb moisture, leading to

caking and bridging, making it difficult to discharge the material. This can be

alleviated by a patting device to improve the material's properties and better complete

the bag-breaking and unloading operation.

1. The material hopper is designed with a glove box to isolate dust and gases from the

operator.

2. It is equipped with a and dust removal system, and a star-shaped discharge valve for

uniform discharging.

3. A tapping device can be installed under the hopper to assist in dis.

4. Additionally, a weighing device can be added to the discharge bin to weigh the material

in the hopper.

5. It can be connected to screening drying, and packaging equipment according to actual

needs, allowing for material drying and packaging actions.

1. The bulk bag unloading equipment has a simple structure and is easy to operate.

2. Fully automated operation improves production efficiency and reduces intensity.

3. Sealed design eliminates dust flying, improves working environment, and reduces

production costs.

4. Integrated design of opening, beating, crushing, and separation, compact structure,

and convenient operation.

5. Pneumatic or electric control methods can be provided, achieving remote monitoring.

Bag size application 1000x1000x1600 mm Power Source AC 380 v ± 5%50 Hz Air source pressure ≥ 0.6MPa Air consumption ≤ 0.6 m ³/min wind volume for dust-removal 800-2500m3/h Environment humidity -100C-400C Cutting capacity 10-20 bags/h (manual)

The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food,

medicine, and chemicals for unpacking and discharging bags of dry powders and granular

materials, such as plastic resins and food additives.







Company Profile

We have been specializing in the production of Screening and conveying equipment for

13 years. China's vibrating screen industry top three. And we have done matching and

OEM for many large companies. Including the world's top vibrating screen manufacturer,

Sweco, USA, we have OEM for his China region. And our products are often exported to

Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
