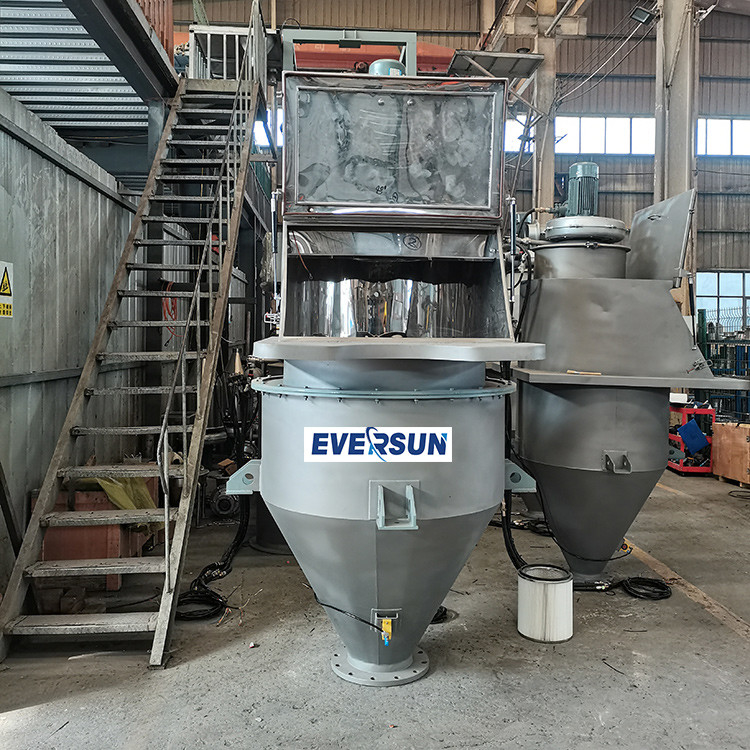

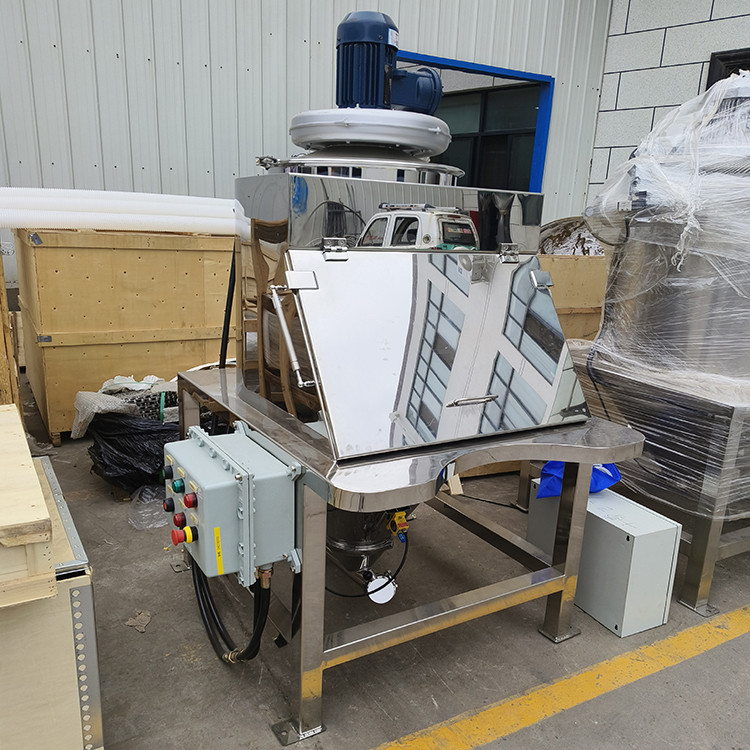

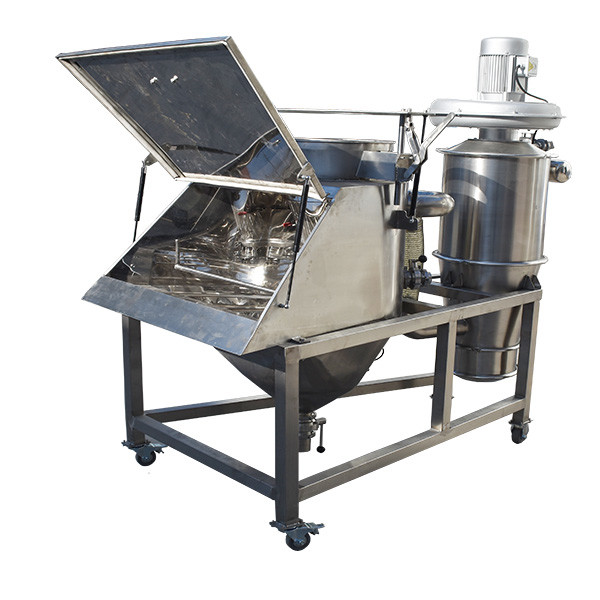

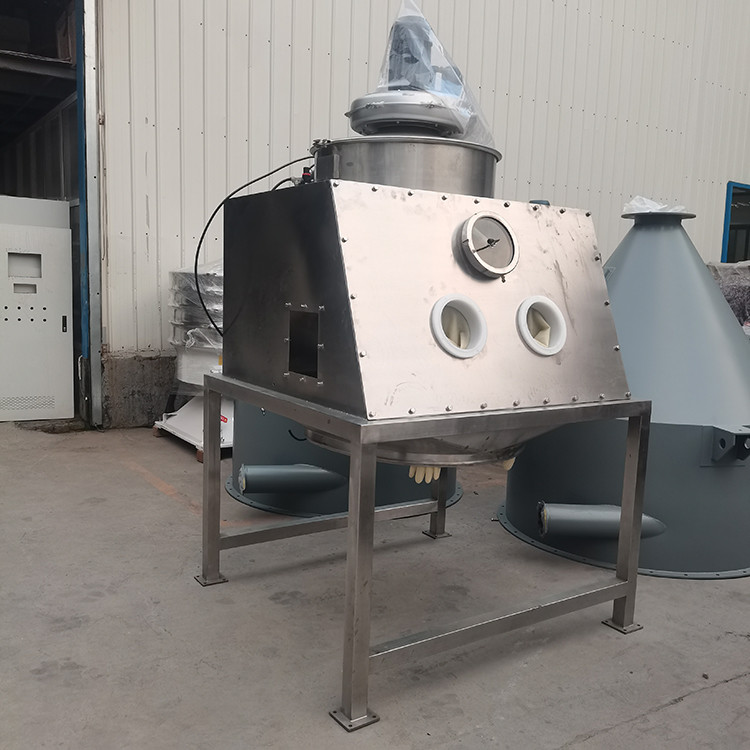

Easy to operate stainless steel GF-800 model dust-free discharge station
Product overview
Small bag dust-free feeding station, the equipment is suitable for small and medium-sized bag packaging powder, particle material feeding and unloading, through the top dust collector fan to collect dust in the unloading process, dust removal effect is remarkable. Vibration-assisted blanking through the bottom vibration facility.
Application material type:
The small bag feeding station is suitable for unpacking, placing, unloading and screening of small and medium-sized bag packaging materials in pharmaceutical, chemical and food industries
Basic composition structure:
It is composed of manual discharge bin, anti-pressure feeding platform, grille, down bin, vibrator, filter system, dust collection system, blowback air bag and other components.
Work flow:
1, dust collection: the small bag feeding station can achieve no dust overflow during the manual feeding process, the unpacked material enters the cone inside the feeding table, the spilled dust is absorbed by the strong negative pressure air flow during the feeding process, and then is blocked by the filter element, and the clean gas is discharged through the filter element inside the fan.
2, clean the filter element: The system in the working process due to the adsorption of the filter element for the material will lead to the increase of filtration resistance, so it is necessary to use a high flow of pulse air to backblow the filter element, so that the fan's operating resistance is kept within the allowed range.
3, powder conveying: The material in the cone of the small bag feeding station is transported to the downstream device through the negative pressure or positive pressure conveying system, and the dust-free operation and operation can be achieved on site.
Product parameter
| Model |
Screening area |
Power |
Rotational speed |
Exciting force |
Flow rate |
|
GF-800
|
0.42 |
2×0.15kw
|
1460
r/min
|
2.5×2
|
1550-997 |
|
GF-1000
|
0.64 |
2×0.25kw
|
1460
r/min
|
5×2
|
1550-997 |
Advantages
1----Clean and environmentally friendly
Dust-free feeding station is designed for the dust-free feeding and screening system of raw materials, large air volume dust collection, strict control of dust flying, no dust leakage, dust-free environmental protection, no loss of materials in the feeding process, to protect a clean environment.
2-----Easy to clean
The whole exterior of the equipment is 304 stainless steel, which meets the food grade hygiene standards. The equipment is equipped with dust removal function to prevent the dust flying in the process of opening the bag and reducing the material loss.
3-----High security
The safe mechanical support design not only greatly reduces the labor intensity of workers, but also ensures the safety and environmental protection standards and puts an end to safety hazards.
4-----High degree of intelligence
A vibrating screen can be installed in the dust collecting bag opening station to effectively remove foreign matter in the material. The equipment adopts intelligent control, high degree of automation, easy to operate.
5-----High degree of intelligence
Smooth surface design inside the equipment, easy to disassemble and clean. Filter precision 0.2u-20u, filter component material is optional.
Application
Application field:
The equipment is suitable for food, pharmaceutical, chemical, metallurgical industries of small and medium-sized bag material unpacking, putting, screening and unloading, especially suitable for powder manual feeding and pre-screening, due to the role of dust collection fan, can avoid material dust flying everywhere.
