Intelligent vacuum negative pressure stainless steel powder conveyor

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN MACHINERY
Certification: ISO,CE
Model Number: QVC
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Pneumatic Vacuum Feeders Capacity: 50-3000kg/h
Control System: Control Box /PLC/Control Cabinet Type: Normal/explosion-proof Type
Application: Powder, Granules, Particles Conveying Distance: 0-20mm
Highlight:

PLC Control Vacuum Conveying System

,

PLC Control System Vacuum Conveying System

,

Intelligent Material Vacuum Conveying System


Product Description



Intelligent vacuum negative pressure stainless steel powder conveyor

Product introduction:

Vacuum feeder, also known as vacuum conveyor, is a device that uses vacuum suction to transport particles and powder through a closed pipeline. It uses the air pressure difference between the vacuum machine and the surrounding space to form the flow of air in the pipeline to drive the movement of powder, so as to complete the transportation of powder.

Specifications:

Model Delivery(kg/h) Warehouse volume(L) Operating pressure(Mpa) Compressed air consumption(N/min)
QVC-1 50-300 1.1 0.4-0.6 180
QVC-2 100-700 6.0 0.4-0.6 360
QVC-3 300-1500 12.0 0.4-0.6 720
QVC-4 600-3000 42 0.4-0.6 1440
Machine can be customized according to your needs

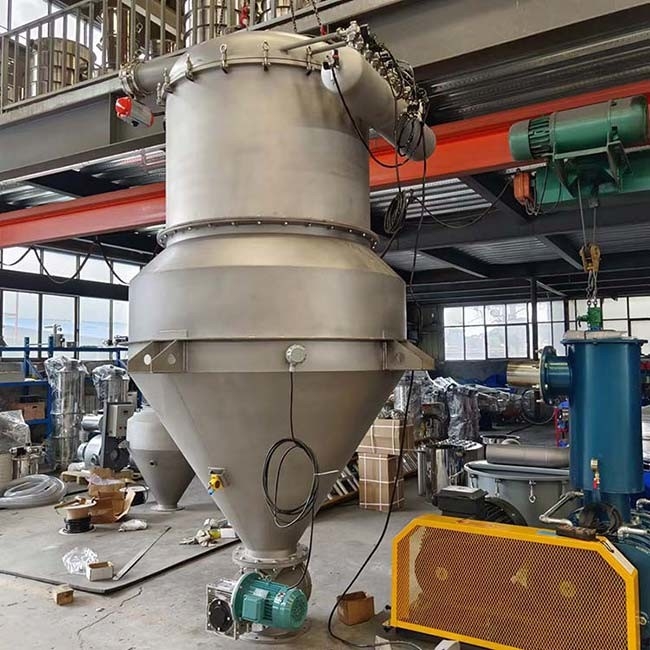

Intelligent vacuum negative pressure stainless steel powder conveyor 0



Features and advantages:

It has the following characteristics:



1,Closed transmission, effectively avoid dust pollution, improve the working environment;

2, Compact structure, small footprint, suitable for use in narrow space;

3, It is easy to operate and easy to maintain;

4, It is safe and reliable, reducing manual labor intensity;

5, The power source is the vacuum pump, no oil and no water, reducing the maintenance work;

6, Quick opening clamp is used at the connection to facilitate disassembly and cleaning;

7,The suction and discharge time can be adjusted according to different needs to achieve automatic contro

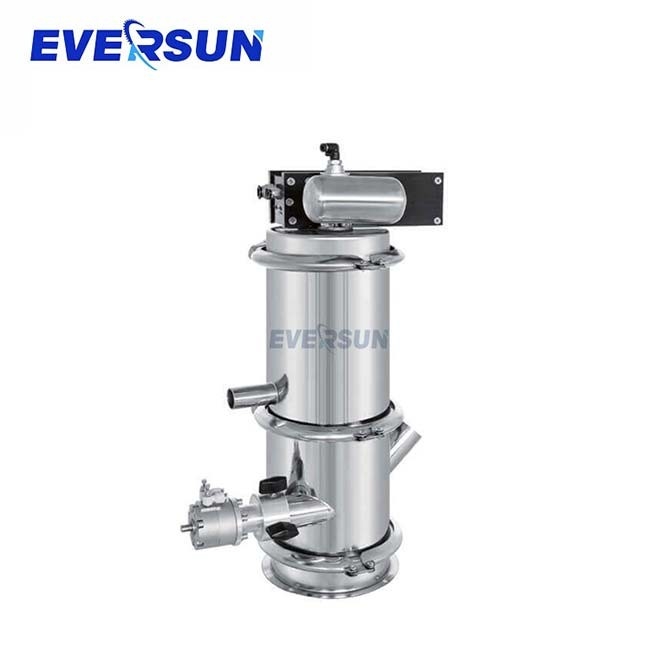

Intelligent vacuum negative pressure stainless steel powder conveyor 1

Product pictures:



We support customizing various types of vacuum feeders, such as electric vacuum conveyors, pneumatic vacuum conveyors, multi-outlet vacuum conveyors, 450 continuous vacuum feeders,  etc., We can designed the machine according to your need

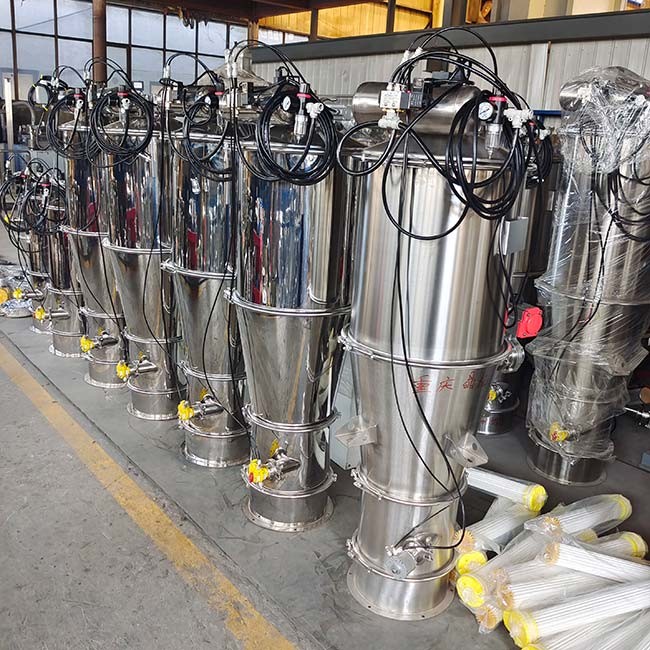

Intelligent vacuum negative pressure stainless steel powder conveyor 2

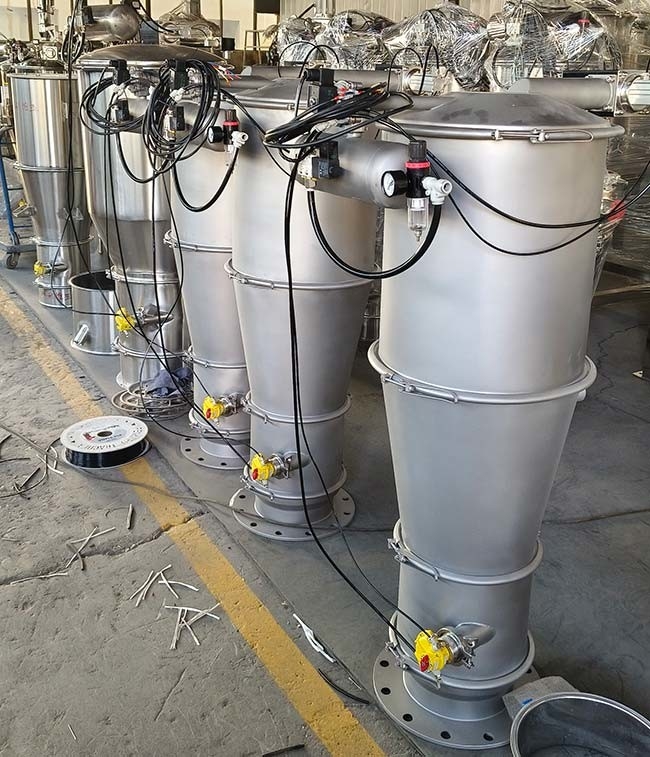

Intelligent vacuum negative pressure stainless steel powder conveyor 3



Application:



1. Food industry
Quickly transport various powdered raw materials such as flour, milk powder, seasonings, etc. to the preparation, mixing, filling and other processes
2. Pharmaceutical industry
Precisely add medicinal raw material powders, granules, etc. to reactors, mixers and other equipment
3. Chemical industry
Quickly transport various powdered chemical raw materials such as catalysts and additives to reactors
4. Packaging machinery
Automatically put powdered and granular packaging materials into filling equipment

Intelligent vacuum negative pressure stainless steel powder conveyor 4

Packaging & Delivery:



1. We use wooden boxes to pack the machine to prevent bumps during transportation.
2. After production, the product will undergo a double quality review before shipping for you.
3. Well-trained and disciplined packaging team.
4. After-sales service: If you have any questions or problems after receiving the product, please feel free to contact us. The problem will be solved for you immediately.
5. Mature and professional freight forwarder. The transportation method is accepted as specified.

Intelligent vacuum negative pressure stainless steel powder conveyor 5







Competitive advantages:



1. More than 20 years of production experience, we are professional manufacturer.
2. We have provided machines and designed production lines for many large foreign companies.
3. We not only produce machines, but also provide solutions.
4. Commitment: We provide lifelong technical support.
