Explosion Proof Ultrasonic Sieve System Ultrasonic Vibrating Sieve Powder Screen

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: BC
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Ultrasonic Vibrating Sieve Screen Mesh: 2-635mesh
Capacity: 20(t/h) Material: Carbon Steel, SUS304/316L
Layer: 1~5 Feed Size: <16(mm)
High Light:

Explosion Proof Ultrasonic Sieve System

,

Ultrasonic Vibrating Sieve Powder Screen


Product Description

Explosion-Proof Ultrasonic Sieve System Ultrasonic Vibrating Sieve Powder Screen

Product introduction




Ultrasonic vibrating sieve is an efficient classification equipment, widely used in the classification and separation of various types of powder and fine particle materials. It uses a high-frequency vibrating screen surface, combined with an inflatable device to generate powerful ultrasonic waves, which can quickly and accurately classify and separate materials according to particle size.

Compared with traditional screening equipment, it has the advantages of good classification effect, high separation efficiency and low energy consumption. It is especially suitable for the fine classification of ultra-fine powders at the micron level and below, and can meet the stringent requirements for high-purity, high-dispersion powders in chemical, new materials, food and other industries. At the same time, its compact and simple structure and highly automated operation mode also greatly improve the equipment's operational reliability and ease of use.

Product parameter


Model Power
(kw)
Mesh size Sieve effective diameter(mm) Layer(s) Dimension of machine(mm)
Length Width Height
BC-400 0.18 2-635 355 1~5S 580 580 560-760
BC--600 0.55 2-635 555 800 800 680-880
BC-800 0.75 2-635 755 900 900 780-1080
BC--1000 1.1 2-635 925 1160 1160 880-1180
BC-1200 1.75 2-635 1125 1360 1360 980-1360
BC-1500 2.2 2-635 1425 1850 1850 1130-1550
BC--1800 3 2-635 1725 2200 2200 1360-1680
BC--2000 3.7 2-635 1910 2340 2340 1360-1680



















































Explosion Proof Ultrasonic Sieve System Ultrasonic Vibrating Sieve Powder Screen 0





Features & Advantages




The feature and advantages of Ultrasonic vibrating sieve

1. Ultra-fine grading capability:
It can efficiently separate micron-sized and finer ultra-fine powder particles.
2. High separation efficiency:
Utilize powerful ultrasonic vibration and air flow to achieve fast and efficient fractionation. The single machine has large processing capacity and can greatly improve production efficiency.
3. Energy saving and environmental protection characteristics:
The motor power is low and the overall energy consumption is much lower than traditional vibrating screening equipment. It has low noise, less dust and meets environmental protection requirements.
4. Operation convenience:
Compact structure, small footprint, easy installation and integration. High degree of automation, enabling unattended continuous work.



Explosion Proof Ultrasonic Sieve System Ultrasonic Vibrating Sieve Powder Screen 1



Application




Ultrasonic vibrating sieves can be used for screening and classifying a variety of materials, including but not limited to the following materials:

1. Chemical industry:
It is used for fine classification of various types of inorganic salts, ceramic powders, catalysts and other fine powders.
2. New materials field:
It is widely used in the classification of emerging materials such as nanoscale carbon materials, graphene, and two-dimensional materials.
3. Food industry:
Used for screening and classifying food-grade powders such as spices, seasonings, additives, etc.
4. Pharmaceuticals:
It is used for fine classification of pharmaceutical raw materials, intermediates and other pharmaceutical powders.
5. Electronic and electrical industry:
Used for the classification and separation of ultra-fine powders such as battery materials, electronic ceramics, conductive fillers, etc.



Explosion Proof Ultrasonic Sieve System Ultrasonic Vibrating Sieve Powder Screen 2

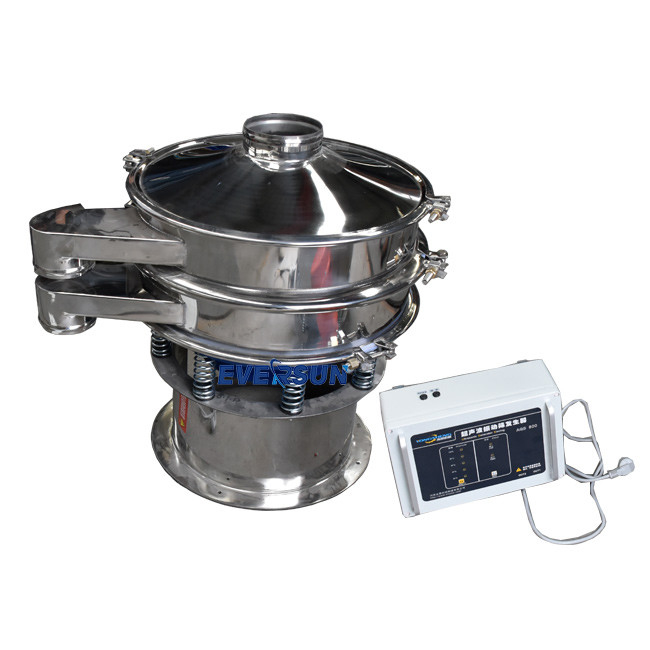

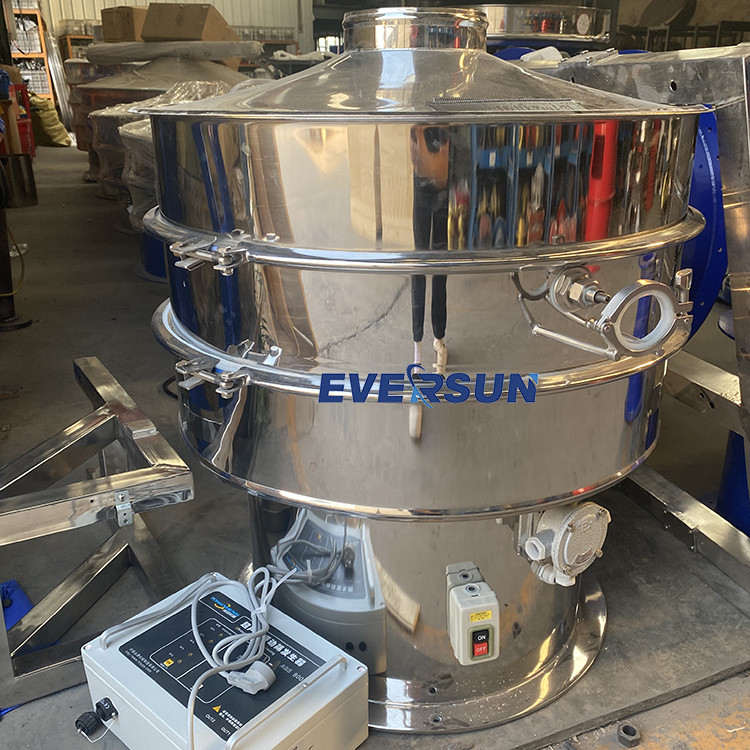

Product picture




Explosion Proof Ultrasonic Sieve System Ultrasonic Vibrating Sieve Powder Screen 3

Explosion Proof Ultrasonic Sieve System Ultrasonic Vibrating Sieve Powder Screen 4

Explosion Proof Ultrasonic Sieve System Ultrasonic Vibrating Sieve Powder Screen 5



FAQ




Q1. What is the difference between ultrasonic vibrating sieve and traditional vibrating screening machine?
A: Ultrasonic screening machines have stronger classification capabilities and can separate ultrafine powders of micron level and below. At the same time, the energy consumption is lower and the operation is more automated.
Q2. What is the operation process of ultrasonic screening machine?

A: The materials pass through the Vibrating Sievesurface and are quickly classified under the action of ultrasonic waves. After being separated by the classification unit, products of different particle sizes are collected.
Q3. How to choose a suitable ultrasonic v
ibrating sieve model?
A: It is necessary to select the appropriate processing capacity and particle size range based on comprehensive considerations such as material characteristics, production scale, classification requirements and other factors.
Q4. What should be paid attention to in the maintenance of ultrasonic screening machine?

A: Regularly check the wear of the Vibrating Sieve surface and the operating status of the motor, and keep the equipment clean to extend its service life.
