| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | B450 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 5-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | 450 Liquid Filter Screen | Usage: | Powder Grading, Liquid Filtration |
|---|---|---|---|
| Layer: | Single | Screen Length: | 450*450 Or Customized |
| Material: | SUS304/316L,Carbon Steel | Screen Mesh Material: | 304 Stainless Steel Wire Screen |
| High Light: | Latex Paint 450 Filter Screen,450 Filter Screen,Ink 450 Filter Screen |
||

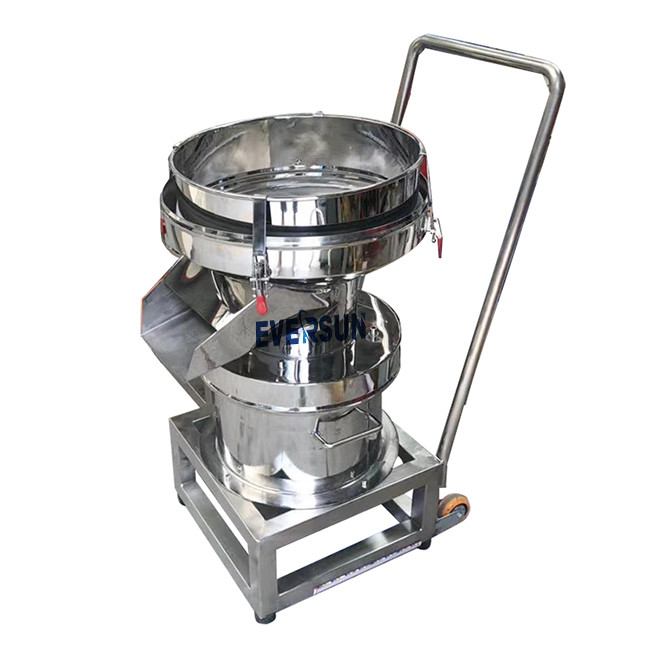

The 450 liquid filter is a common industrial filtration equipment that achieves solid-liquid separation and filtration of liquids through the combination of filter cloth and filter plate. It is suitable for many industries, including chemical, pharmaceutical, food and other fields. It can be used to filter suspensions, slurries, sewage and other liquids, remove solid particles and impurities, and improve the purity and quality of liquids.
It has the characteristics of easy operation and good filtration effect. It is one of the important equipment and is used to meet the filtration needs in the industrial production process.
Main Specification of vibrating screen, different size for different sieving capacity.
| Model | Power | Effective screening diameter | Dimension (mm) |
Amplitude |
| B450 | 0.18kw | 380mm | 460*550*665 | 2-5mm |
| Support customized production | ||||
The 450 liquid filter has the following key features and advantages:
1. High filtration efficiency: The 450 liquid filter can efficiently filter solid particles and impurities, provide excellent filtration effects, and improve the purity and quality of liquids.
2. Easy to operate: The equipment adopts manual, semi-automatic or fully automatic operation methods.
3. Adjustable filtration pressure: The hydraulic system can adjust the filtration pressure as needed to adapt to different materials and filtration requirements to ensure the best filtration effect.
4. Various filter cloth options: According to specific filtration requirements, filter cloths of different materials and precision can be selected to adapt to different particle sizes and filtration precision.
The 450 liquid filter is suitable for filtration and solid-liquid separation of a variety of materials, including but not limited to the following types of materials:
1. Suspension: Filter solid particles suspended in liquid, such as ore slurry, ceramic suspension, etc.
2. Sewage treatment: remove solid particles and suspended matter in sewage.
3. Chemicals: Filter various chemicals, such as solvents, dyes, pigments, resins, etc.
4. Food and Beverages: Filter liquids such as juice, alcohol, beverages, cooking oils, etc.
5. Pharmaceutical products: filtering liquid medicine, slurry, preparations, etc.
6. Petroleum and chemical industry: filtering crude oil, liquids in the refining process, chemicals, etc.
1. Packing materials: Use wooden boxes for packaging. Provide adequate protection and support to ensure equipment is not damaged during transportation.
2. Packaging method: The 450 liquid filter is usually disassembled during the packaging process, and the main components are packaged separately to reduce the overall volume and weight.
3. Shipping method: The 450 liquid filter can be shipped internationally by sea, air or land. The specific choice of transportation method depends on factors such as distance, time and cost.
Q1: What types of liquids can the 450 liquid filter filter?
A: The 450 liquid filter can filter many types of liquids, including suspensions, slurries, sewage, solvents, juices, edible oils, etc.
Q2: How to adjust the filtration pressure of the 450 liquid filter?
A: The filtration pressure of the 450 liquid filter can be achieved by adjusting the hydraulic system. Usually the equipment will be equipped with a corresponding pressure adjustment device.
Q3: Can the filter cloth of the 450 liquid filter be replaced?
A: Yes, the filter cloth of the 450 liquid filter can be replaced as needed to adapt to different materials and filtration requirements.
Q4: How to clean and maintain the 450 liquid filter?
A: Cleaning and maintaining the 450 liquid filter usually includes cleaning the filter plate and replacing the filter cloth.
