| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | QVC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Negative Pressure Conveyor | Hopper Capacity: | 400/600kgm³ Or Customizable |
|---|---|---|---|
| Structure: | Closed | Conveying Distance: | 0-20mm |
| Material: | SUS304/316L,carbon Steel | Application: | Food Chemical Medical |
| High Light: | 50-3000kg/H Pneumatic Vacuum Feeder,Automatic Feeder Negative Pressure Conveyor,Negative Pressure Conveyor Pneumatic Vacuum Feeder |
||

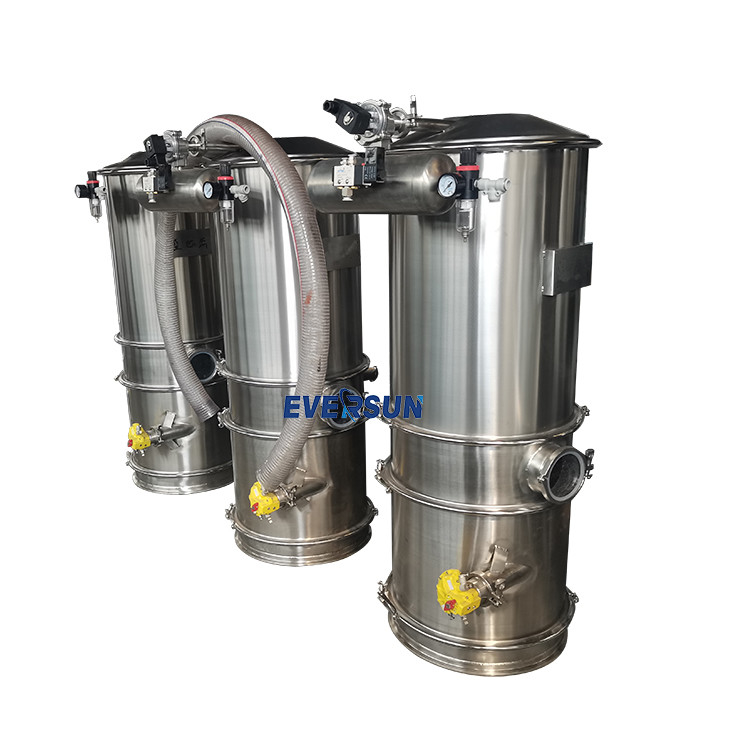

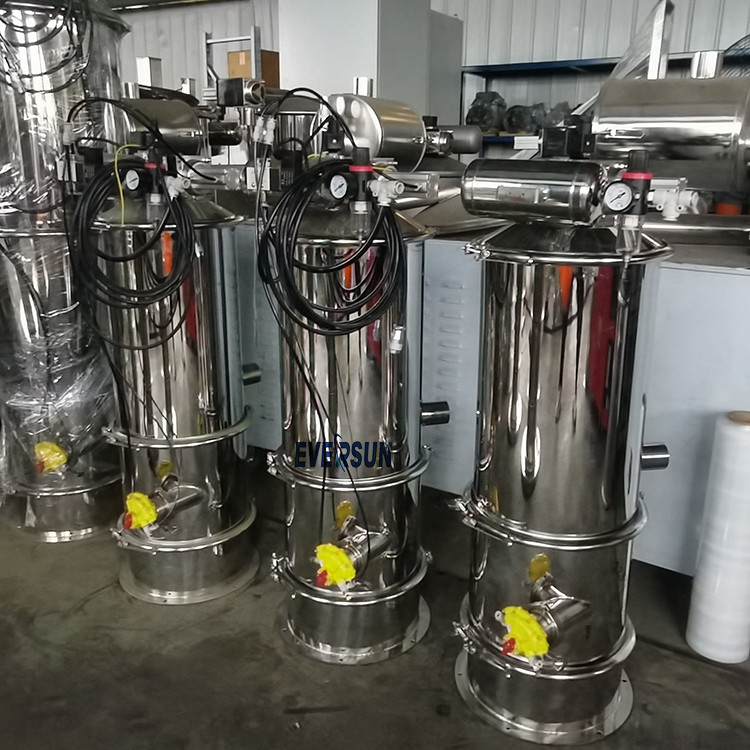

Pneumatic vacuum conveyor is a device that utilizes the principles of negative pressure and air flow to transport powder, granular or granular materials from the source to the target location quickly and efficiently. It is suitable for many industries, such as chemicals, pharmaceuticals, food, plastics, mining, etc. It has the advantages of automatic feeding, precise supply and long-distance transportation, improves production efficiency, reduces manual operations, and ensures the hygiene and stability of materials.
| Model | Delivery(kg/h) | Warehouse volume(L) | Operating pressure(Mpa) | Compressed air consumption(N/min) |
| QVC-1 | 50-300 | 1.1 | 0.4-0.6 | 180 |
| QVC-2 | 100-700 | 6.0 | 0.4-0.6 | 360 |
| QVC-3 | 300-1500 | 12.0 | 0.4-0.6 | 720 |
| QVC-4 | 600-3000 | 42 | 0.4-0.6 | 1440 |
| Machine can be customized according to your needs | ||||
Features and advantages of Pneumatic vacuum conveyor
1. Efficient and fast: It can realize high-speed and continuous material transportation and improve production efficiency.
2. Automated operation: The pneumatic vacuum conveyor can realize the automated material loading process. It can be seamlessly connected with the production line or processing equipment to achieve automatic supply and transportation.
3. Protect material quality: Transporting in a closed environment can effectively prevent materials from being contaminated or dampened by the outside world, ensuring the quality and hygiene of materials.
4. Reduce material loss: The pneumatic vacuum conveyor has almost no material leakage or scattering during the material transportation process, reducing material loss and waste.
We support customizing various types of vacuum feeders, such as electric vacuum conveyors, pneumatic vacuum conveyors, multi-outlet vacuum conveyors, 450 continuous vacuum feeders, etc., We can designed the machine according to your need
Pneumatic vacuum conveyors are widely used in many fields and industries. Here are some common examples of pneumatic vacuum feeder applications:
1. Powder materials: such as powdered chemicals, medicinal powder, flour, sugar powder, milk powder, spices, etc.
2. Granular materials: such as plastic particles, rubber particles, granular fertilizers, granular coffee beans, granular grains, etc.
3. Granular particles: such as coal powder, coke, ore powder, cement, limestone, sand, etc.
4. Fibrous materials: such as cellulose, wood chips, textile fibers, glass fibers, etc.
5. Granular or granular additives: such as pigments, fillers, catalysts, coating additives, etc.
6. Granular or granular recycled materials: such as plastic recycled materials, rubber recycled materials, etc.
1. Packaging:
Before transportation, the pneumatic vacuum conveyor is packed with cushioning materials such as wooden boxes, cartons or foam. The name, model, weight, size and other relevant information of the equipment should be marked on the packaging.
2. Transportation method:
Pneumatic vacuum conveyor can be transported by land, sea or air. The specific shipping method depends on the size, weight, destination and other factors of the equipment.
