| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | EFYB-2040 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Application: | Powder, Granules, Liquid, Bulk Solids | Capacity: | 20-30t/h |
|---|---|---|---|
| Usage: | Industrial Use | Material: | Stainless Steel 304, Carbon Steel |
| Sieve Hole Size: | 0.025-20mm | Customized Service: | Provide |
| Ng Area: | 3.6~7.2 M2 | Screen Material: | Woven Wire Cloth |
| High Light: | pharmaceutical granules Rectangular Vibrating Screen,Square Gyratory Rectangular Vibrating Screen,Pharmaceutical Granules Square Gyratory Screen |
||

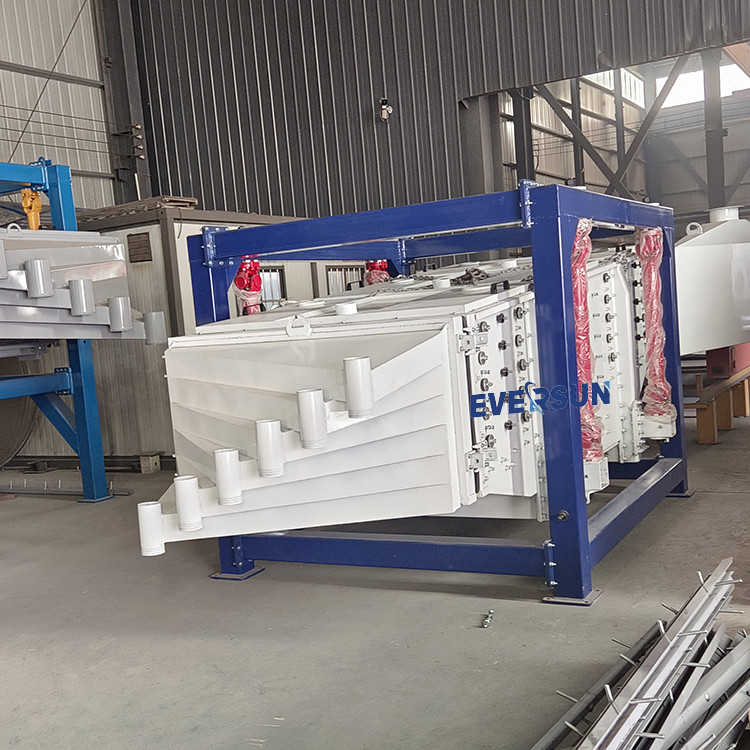

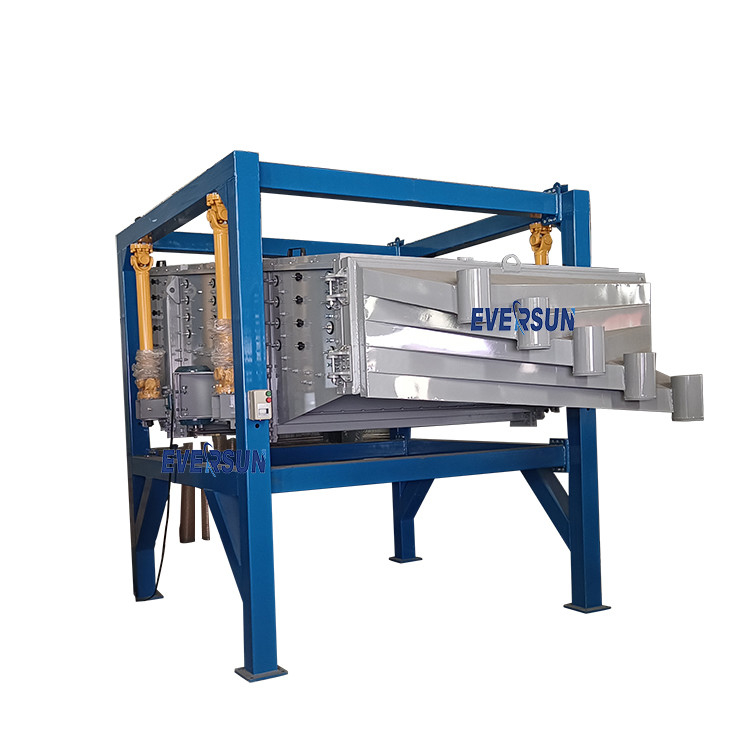

Rectangular Vibrating Screen Square Gyratory Screen For Pharmaceutical Granules
The Rectangular Vibrating Screen is a piece of equipment commonly used for screening and classifying granular materials. It adopts a square screen frame structure and uses rocking motion and vibration force to screen and classify materials according to different particle sizes.
Rectangular Vibrating Screens are widely used in many industries, including mining, metallurgy, chemical industry, building materials, food, medicine and environmental protection. It is often used for screening, classifying and filtering granular materials to provide the required product quality and particle size requirements. The square swing screen also has efficient and reliable screening effects and is suitable for processing various granular materials, such as ore, coal, sand and gravel, chemical raw materials, food additives, pharmaceutical granules, etc.
| Model | Layer | Effective screening area(m2) |
Angle degree | Power(kw) | Dimension (mm) |
| EFYB-1030 | 1~8 | 3 | 5~10 | 2.2 | 3600*1600*1800 |
| EFYB-1036 | 3.6 | 2.2 | 4200*1600*1800 | ||
| EFYB-1230 | 3.6 | 4 | 3600*1800*1800 | ||
| EFYB-1236 | 4.3 | 4 | 4200*1800*1800 | ||
| EFYB-1530 | 4.5 | 4 | 3600*2100*2000 | ||
| EFYB-1536 | 5.4 | 4 | 4200*2100*2000 | ||
| EFYB-1830 | 5.4 | 5.5 | 3600*2400*2400 | ||
| EFYB-1836 | 6.48 | 5.5 | 4200*2400*2400 | ||
| EFYB-2030 | 6 | 7.5 | 3600*2600*2400 | ||
| EFYB-2036 | 7.2 | 7.5 | 4200*2600*2400 |
The main features of the Rectangular Vibrating Screen include:
1. Compact structure: The design of the square screen frame makes the equipment compact and takes up less space, making it suitable for installation in limited sites.
2. High-efficiency screening: The Rectangular Vibrating Screenn uses rocking motion and vibration force to cause materials to continuously roll and jump on the screen frame, thereby achieving efficient screening and classification.
3. Multi-layer screen: Rectangular Vibrating Screens usually adopt a multi-layer screen structure, which can perform multi-stage screening at the same time to improve screening efficiency and classification capabilities.
4. Precision screening: The Rectangular Vibrating Screen can select screens with different apertures according to needs to achieve precise screening and meet the requirements of different particle sizes.
5. Adjustable vibration force: The vibration force of the Rectangular Vibrating Screen can be adjusted according to the characteristics of the material and screening needs to achieve the best screening effect.
The Rectangular Vibrating Screen can be used for screening and classifying a variety of granular materials. The following are some common application materials:
1. Ore: including metallic ores (such as iron ore, copper ore, lead-zinc ore, etc.) and non-metallic ores (such as limestone, gypsum, quartz ore, etc.).
2. Coal: Including different particle size levels of coal, such as coal powder, coal lumps, etc.
3. Sand and gravel: including natural sand and gravel, artificial sand and gravel, construction waste, etc.
4. Chemical raw materials: such as chemical fertilizers, plastic particles, rubber particles, paint particles, etc.
5. Food additives: such as starch, powdered sugar, salt, condiments, etc.
6. Drug particles: including active ingredients, auxiliaries and other particles in drugs.
7. Premix: Premix pellets used in animal feed processing.
8. Powder: powdery materials such as flour, protein powder, milk powder, etc.
9. Viscous materials: such as colloidal materials, slurry materials, etc.
Rectangular gyratory sifter is widely used in material screening, filtration, impurity removal, and classification in large-scale production linesIt is more convenient and faster to connect with the production line.
The picture below shows some examples of our customers’ applications, which can be used with conveyor equipment, such as bucket elevator, conveyor belt, etc. If you want to know more, please contact us.
