| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | GF |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Application: | Clean Discharge Of Materials | Feeding Specification: | 0~50KG/Bag |
|---|---|---|---|
| Conveying Distance: | 0m~10m | Dynamic Load: | 500N, 800N |
| Feeding Port Diameter: | 800,1000mm | Wind Pressure: | 1217-1641 |
| Conveying Capacity: | 100-5000（kg/h） | Optional Customization: | Iron Remover, Vibrating Screen, Bracket |
| High Light: | Cement Lime Bag Tipping Station,Dust-Free Material Feeding System,15Kg Material Feeding System |
||

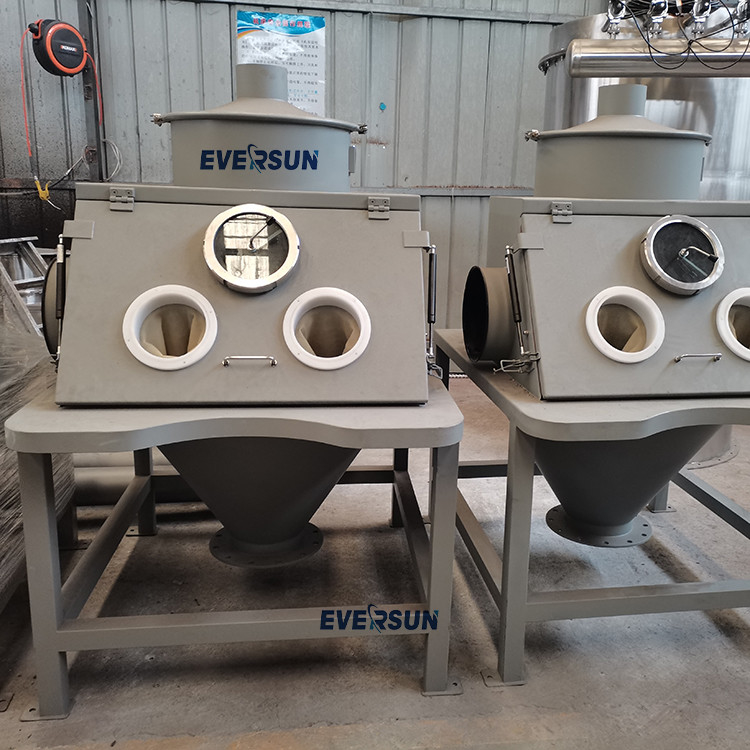

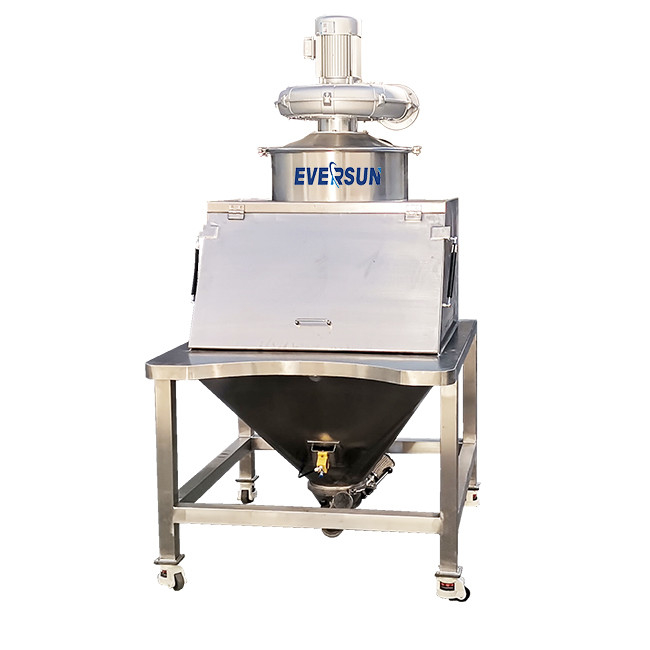

Bag Tipping Station is also known as the dust-free feeding station, which refers to the manual unpacking of small bag packaging materials, and the dust removal is carried out by the filter and dust removal fan in the whole unpacking, and the dust will not leak out, which is suitable for 0~50KG of small bag packaging powder particle material.
Bag Tipping Station workflow:
It completes the work of unpacking and unloading by manual unpacking and automatic dumping, making the material fall into the storage hopper by gravity. The Dust-Free Material Feeding System is installed inside the filter cleaning device and exhaust fan, which is used to filter the dust generated in the dumping process, and the clean exhaust gas is discharged into the atmosphere, so that the artificial can work easily in a clean environment.
| Model | Screening area | Power | Rotational speed | Exciting force | Flow rate |
GF-800 | 0.42 | 2×0.15kw | 1460 r/min | 2.5×2 | 1550-997 |
GF-1000 | 0.64 | 2×0.25kw | 1460 r/min | 5×2 | 1550-997 |
The features of Bag Tipping Station
1, reduce manual heavy physical labor;
2, no dust flying, health;
3, small filtration accuracy, no waste, loss of materials;
4, and the next step of the effective connection;
5, can be equipped with automatic cutting knife, pressure bag device;
6, small size, can move freely, wide range of application.
(A typical production line of Bag Tipping Station in Indonesia)
We support customizing various types of Bag Tipping Station.
The Bag Tipping Station (dust-free feeding station) is suitable for unpacking, placing, screening and discharging small bag materials in pharmaceutical, chemical, food, battery materials and other industries. When unpacking, due to the role of dust collecting fan, material dust can be prevented from flying around.
The packaging and shipping of Bag Tipping Stations will usually be arranged according to the specific equipment design and size.
Packaging:
1. Safe packaging: The dust-free feeding station will use wooden boxes for safe packaging to ensure that it is not damaged during international transportation.
2. Identification and labeling: We will label the wooden cases for easy identification and management. This includes information such as the type, quantity and weight of the equipment.
Shipping:
1. Logistics cooperation: We will cooperate with logistics companies or transportation agents to arrange appropriate transportation plans and logistics arrangements. Transport options are sea, air or land.
2. Transportation documents: Necessary transportation documents such as bill of lading, packing list, commercial invoice, etc. will be prepared and provided before international transportation.
