| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | GF |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Application: | Clean Discharge Of Materials | Bag Weight: | 15, 25, 50 Kg |
|---|---|---|---|
| Static Load: | 1500N, 2500N | Dynamic Load: | 500N, 800N |
| Feeding Port Diameter: | 800,1000mm | Wind Pressure: | 1217-1641 |
| Conveying Capacity: | 100-5000（kg/h） | Optional Customization: | Iron Remover, Vibrating Screen, Bracket |
| High Light: | Bulk Bag Emptying Station,Paint Powder Grain Bag Discharge System,Multi-Functional Bag Discharge System |
||

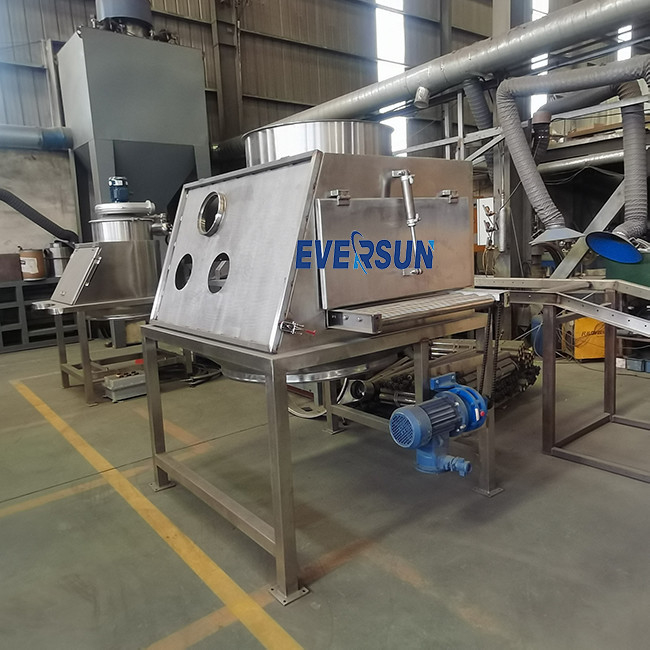

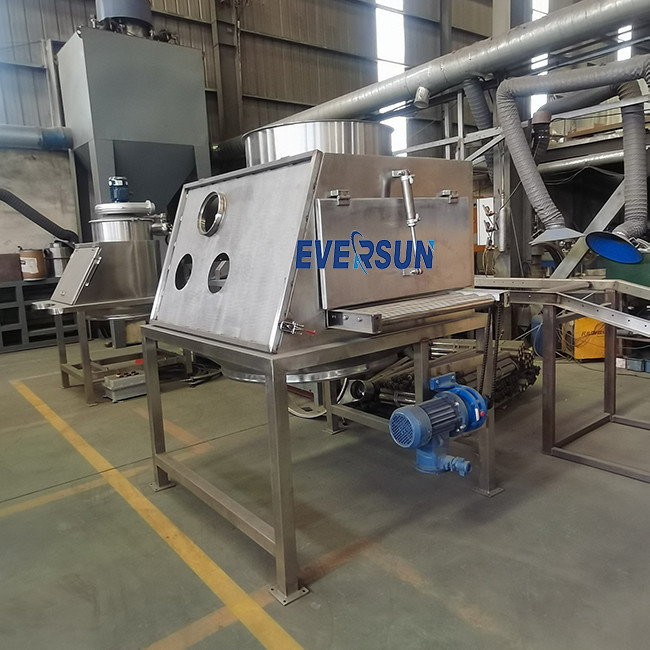

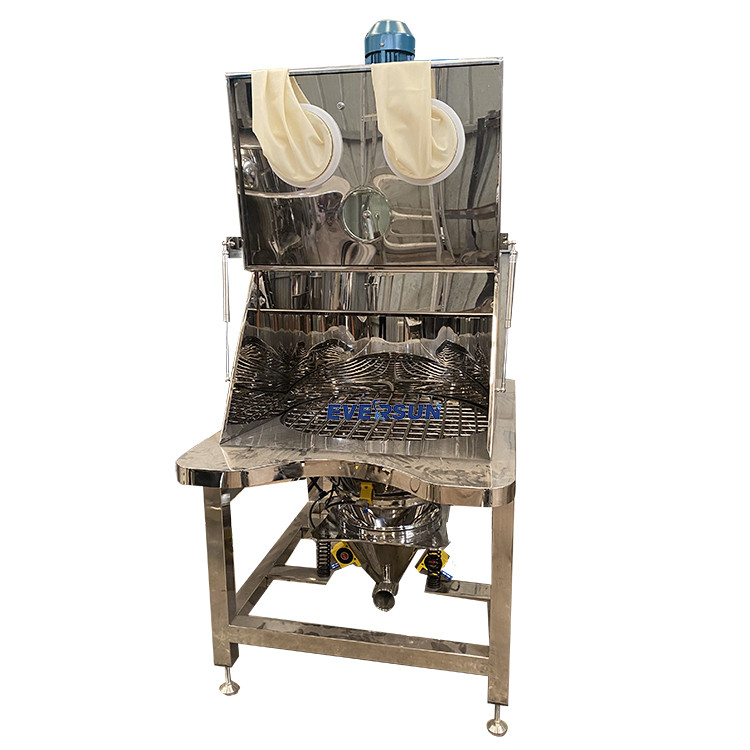

Bag Emptying Station, also known as manual dump stations, are used to collect dust generated when powder and bulk solids are dumped in containers such as bags, boxes, drums and return the material to the hopper, the system reduces material waste and eliminates the need to clean remote dust collection sites, while protecting workers and preventing plant pollution.
When the small bag material needs to be unpacked and poured into the next process, just manually unpacked and put into the system. The material dust generated during the feeding process is collected by the dust removal fan. The material intercepts loose materials and foreign bodies through vibration (safety screen) to ensure the smooth input of particles that meet the requirements.
| Model | Screening area | Power | Rotational speed | Exciting force | Flow rate |
|
GF-800 |
0.42 |
2×0.15kw |
1460
r/min |
2.5×2 |
1550-997 |
|
GF-1000 |
0.64 |
2×0.25kw |
1460
r/min |
5×2 |
1550-997 |
The features of Bag Emptying Station
1, the automatic dust collection system can absorb dust well, prevent the material from producing dust in the process of unpacking and feeding, and improve the working environment.
2, the Bag Emptying Station can be dumped 50kg, 25kg, 15kg bags, can meet different processing requirements
3, equipped with screening and vibration devices, easy to discharge and pipeline transportation, to prevent foreign bodies into the material during the feeding process.
4, not easy to block material, can also choose dust collector, reduce dust flying, protect the environment, reduce labor intensity.
5, the bottom of the storage tank is equipped with active hopper, can be selected according to the need to the size of the storage box.
(A typical production line of Bag Tipping Station in Indonesia)
We support customizing various types of Bag Emptying Station.
The Bag Emptying Station (dust-free feeding station) is suitable for unpacking, placing, screening and discharging small bag materials in pharmaceutical, chemical, food, battery materials and other industries. When unpacking, due to the role of dust collecting fan, material dust can be prevented from flying around.
The packaging and transportation of Bag emptying stations will usually be arranged according to the specific equipment design and size. The following are the general packing and shipping methods:
Packaging:
1. Disassemble packaging: The individual components of Bag emptying stations are disassembled to facilitate packaging and transportation. This includes the discharge table, support structure, discharge device and other components, which are then packed in wooden boxes.
2. Identification and labeling: Each packing case or container will be identified and labeled for easy identification and management. This includes information such as the type, quantity and weight of the equipment, as well as warning signs and precautions.
Transportation:
1. Mode of transport: Bag emptying stations can be transported by land, sea or air. The specific mode of transportation depends on the size, weight and location of the destination of the equipment.
2. Insurance and tracking: In order to ensure the safe transportation of equipment, you can consider purchasing cargo transportation insurance, and implement cargo tracking and monitoring measures in order to understand the transportation status and location of equipment in a timely manner.
