| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | EDS |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Name: | Dumping Station | Material: | SUS 304/316L/Carbon Steel |
|---|---|---|---|
| Conveying Capacity: | 1000（kg/h） | Hopper Capacity: | 300（kg） |
| Type: | Enclosed/glove Box Type | Size: | Customized |
| Applicable Fields: | Powder Particles | Flow: | 1500-997 |
| High Light: | Iron Remover Bag Dumping Station,Chemical Industry Bag Dumping Station,Dust-Free Feeding Bag Dumper |
||

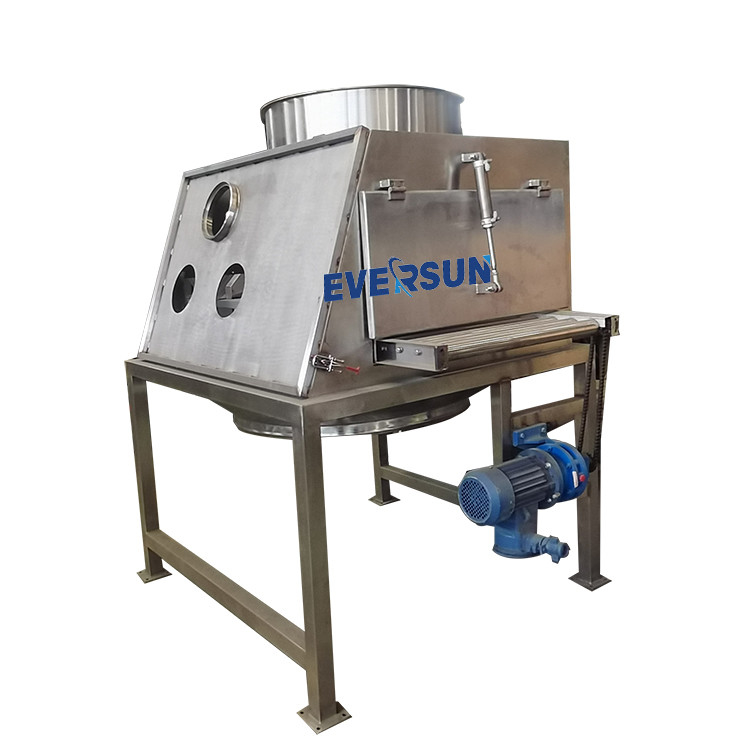

The bag dumping station (Bag Tipping Station) with iron remover is an equipment system used for conveying and removing iron from powdery or granular materials. It is an equipment that integrates the bag dumping function and the iron removal function. It is mainly used to handle bagged materials. While dumping the bags, iron impurities in the materials are removed through the iron remover to ensure product quality and the safety of production equipment.
The design and use of bag dumping stations with iron removers can greatly improve efficiency and product quality during production processes and reduce the risk of damage to equipment. Specific equipment specifications and operating details should be selected and adjusted based on actual needs and production processes.
| Model | Feeding port diameter | Power of blower | Air pressure of blower |
| EDS-600 | 600mm/24inch | 1.5KW | 3Kpa-25m³/m |
| EDS-800 | 800mm/32inch | 1.5KW | 3Kpa-25m³/m |
| EDS-1000 | 1000mm/40inch | 2.2KW | 3.6Kpa-39m³/m |
| EDS-1200 | 1200mm/48inch | 2.2KW | 3.6Kpa-39m³/m |
The bag dumping station usually includes the following main components:
1. Bracket: Provides stable support and installation foundation for the equipment.
2. Dumping table: used to place bagged materials and realize the dumping function through the control mechanism. Dumping tables typically have a tilt or swivel mechanism that allows operators to easily dump bags into receiving equipment or conveyor systems below.
3. Iron remover: Installed at an appropriate location in the dumping station to remove iron impurities from materials. Common iron removers include magnetic iron removers and metal detectors. Magnetic iron removers use strong magnetic force to absorb iron particles and separate them from the material flow. Metal detectors achieve iron removal by detecting metal impurities in materials and triggering alarms or shutdowns.
4. Control system: used to monitor and control the operation of the entire equipment. The control system can include buttons, touch screens, sensors, etc. to achieve automated control of dumping and iron removal.
The main procedures for using a bag dumping station with iron remover are as follows:
Place bagged material on dumping table.
The operator tilts or rotates the dumping table through the control device to dump the materials in the bag into the receiving equipment or conveying system below.
At the same time, the iron remover will remove iron from the materials. Depending on the configuration of the equipment, a magnetic iron remover can magnetically absorb and separate iron particles, or a metal detector can detect and remove metal impurities.
Once the pouring is complete, the operator can remove the bag and move on to the next pouring operation.

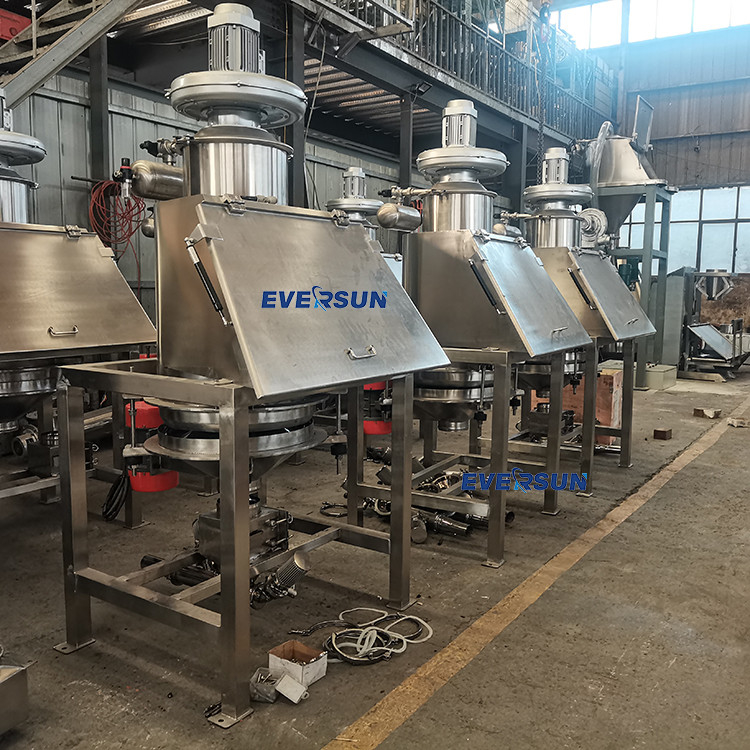

(A typical production line of dust-free feeding station in Australian)
Bag dumping stations with iron removers find widespread use in many industries and applications. Here are some common application areas:
1. Food and Beverage Industry: Bag dumping station with iron remover can be used to handle raw materials, powders, granules, seasonings, etc. in packaging bags. It can remove metal fragments, nails, screws and other iron impurities that may be present in bagged materials to ensure the safety and quality of food and beverages.
2. Pharmaceutical and chemical industry: Bag dumping station with iron remover can be used to handle pharmaceuticals, chemicals, granular raw materials, etc. It removes possible metal impurities, prevents damage to production equipment, and guarantees product purity and quality.
3. Mining and metallurgical industry: Bag dumping station with iron remover can be used to process ore, ore powder, slag and other materials. It can remove possible iron impurities such as iron ore and iron sand to ensure the smooth progress of the ore processing and smelting process.
Q1: What type of materials can the bag dumping station with iron remover handle?
A: Bag dumping station with iron remover is suitable for handling various types of powdery or granular materials, including food raw materials, chemicals, pharmaceuticals, ores, plastic pellets, rubber pellets, etc.
Q2: How does the iron remover remove iron impurities from materials?
A: Iron removers usually use magnetic iron removers. Magnetic iron removers use strong magnetic force to absorb iron particles and separate them from the material flow.
Q3: What are the installation and maintenance requirements for bag dump stations with iron removers?
A: Generally speaking, during installation, it is necessary to ensure that the equipment is stable and safe, and connected to the relevant conveying system and control system. In terms of maintenance, clean the iron remover regularly to maintain its performance.
Q4: Can the bag dumping station with iron remover be customized?
A: Yes, bag dumping station with iron remover can usually be customized according to customers' specific needs. The equipment can be customized and designed based on factors such as material type, processing capacity, iron removal effect, etc.
