1 - 5 Layers Mining Linear Vibrating Screen Sieve For Gravel Sand

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO, CE
Model Number: DZSF
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Standard export wooden cases
Delivery Time: within 7-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000sets/year
Detail Information
Screen Size: 0.02-20mm Screen Layer: 1 To 5
Particle  Size: ≤20mm Vibration Motor: Double Vibration Motor
Screening Area: Large Product Name: Linear Vibrating Screen
Operation Mode: Automatic Capacity: ≤32t/h Or Customized
High Light:

5 Layers Linear Motion Vibrating Screen


Mining Linear Vibrating Sieve Screen


Gravel Sand Linear Vibrating Screen

Product Description

Product Description:

Product Overview of Linear Vibrating Screen

The Linear Vibrating Screen  also known as linear vibrating separator or linear vibrating sieve, is a commonly used screening equipment used to classify and screen solid particles, powder materials, and small materials. It is widely used in various industries such as food, chemical, and pharmaceutical. It is designed to efficiently separate and grade various materials based on their size and shape.


Overall, the Linear Vibrating Screen is a versatile and efficient screening machine that is essential in many industries. It has the advantages of high screening efficiency, easy operation, and stable structure, and is suitable for occasions with large processing capacity. Its advanced features and customizable options make it a reliable and cost-effective solution for various screening needs.

Technical Parameters:

Product Name Linear Vibrating Screen
Screen Size 0.02-20mm
Particle Size ≤20mm
Capacity ≤32t/h Or Customized
Screen Frame Stainless Steel, Carbon Steel
Screening Area Large
Vibration Motor Double Vibration Motor
Screen Layer 1 To 5
Operation Mode Automatic
Vibration Amplitude Adjustable
Keywords Linear vibrating separator, linear vibrating sieve screen

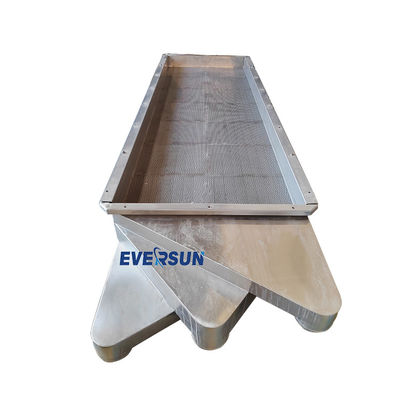

1 - 5 Layers Mining Linear Vibrating Screen Sieve For Gravel Sand 0


Key Features:
  • Highly efficient screening and separation of materials
  • Double vibration motors for strong and stable vibration force
  • Durable and corrosion-resistant screen frame
  • Wide range of screen sizes and customizable options
  • 1 to 5 layers of screens for more precise screening
  • Automatic operation mode for ease of use and maintenance


The Linear Vibrating Screen by EVERSUN is a highly efficient and versatile screening machine that is widely used in various industries.

The square linear vibrating screen sifter is perfect for separating and grading materials such as sand, stone, and minerals. It can handle large quantities of materials with ease and precision, making it ideal for use in mining, food, chemical and construction industries.

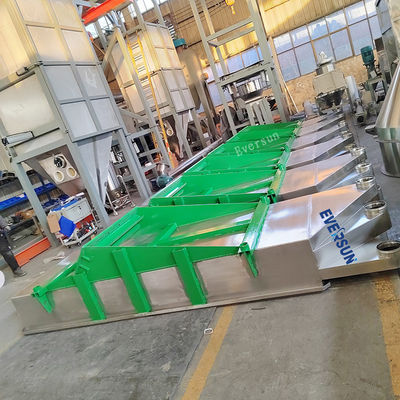

1 - 5 Layers Mining Linear Vibrating Screen Sieve For Gravel Sand 1

Customization options:

Linear screens can often be customized to meet specific application needs. Here are some common linear screen customizable options:
(1) Screen aperture and material: The screen aperture size and material can be customized according to the characteristics of the material and screening requirements. Smaller apertures can achieve finer screening accuracy, and different materials can adapt to different material properties.
(2) Screen box material: The material of the screen box can be customized according to the chemical properties, wear resistance requirements and cleaning requirements of the material. Common materials include stainless steel, carbon steel and polymer.
(3) Screen box size and number of layers: The size of the screen box can be customized according to the processing capacity and installation space requirements. At the same time, depending on the screening needs, you can choose a single-layer or multi-layer screen box design.
(4) Feeding and discharging methods: The feeding and discharging methods of the linear screen can be customized according to the process flow and operating requirements. For example, you can choose a single inlet or multiple inlets, as well as different types of discharge devices.
1 - 5 Layers Mining Linear Vibrating Screen Sieve For Gravel Sand 2

Packing and Shipping:

Packaging and Shipping

Linear Vibrating Screen is carefully packaged to ensure safe delivery to our customers.

Packaging Details
  • Each unit is wrapped with a layer of plastic film to prevent scratches and damage.
  • The wrapped unit is then placed in a sturdy wooden box for added protection.
  • The wooden boxes are secured with strong straps to prevent any movement during shipping.
  • For larger orders, the units are stacked and secured on a pallet for easy handling and transportation.
Shipping Methods

We offer a variety of shipping methods to suit the needs of our customers:

  • For small orders, we use express delivery services such as DHL, FedEx, or UPS for fast and reliable delivery.
  • For larger orders, we can arrange sea or air freight shipping according to customer preferences.
  • Customers are also welcome to use their own shipping methods and we will assist with the coordination.

1 - 5 Layers Mining Linear Vibrating Screen Sieve For Gravel Sand 3


Q: What is the working principle of linear screen?
A: The linear screen uses vibration force to vibrate the screen box and screen mesh, causing the materials to vibrate rapidly back and forth on the screen surface. .
Q: What materials are linear screens suitable for?
A: The linear screen is suitable for screening and classifying various solid granular materials. It can handle coarse particles, medium particles and fine particles.
Q: What is the screening accuracy of the linear screen?
A: The screening accuracy of the linear screen depends on the hole size of the screen and the nature of the material. Screening accuracy can also be optimized by adjusting vibration force and screen angle.
Q: What should we pay attention to when maintaining linear screens?
A: When maintaining linear screens, you need to pay attention to the following points:
Clean the screen regularly to prevent clogging and accumulated materials from affecting the screening effect.
Check the vibrator and support structure fasteners to make sure they are secure.
Check the operating status of the vibrator, such as abnormal vibration or noise, and repair or replace it in time.
Lubricate rolling bearings and other moving parts regularly to ensure proper operation.
