| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO, CE |
| Model Number: | V |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Mixing Time: | Adjustable | Total Volume: | 10-5000 L |
|---|---|---|---|
| Size: | Customized | Effective Volume: | 5-2500 L |
| Name: | V Mixing Machine | Noise: | ≤80dB |
| Maximum Loading Weight: | 5-1200kg | Material: | Stainless Steel304/316L, Carbon Steel |
| High Light: | Customizable Low Noise Mixer Machine,Low Noise V Shaped Mixer,Clusters V Shaped Mixer |
||

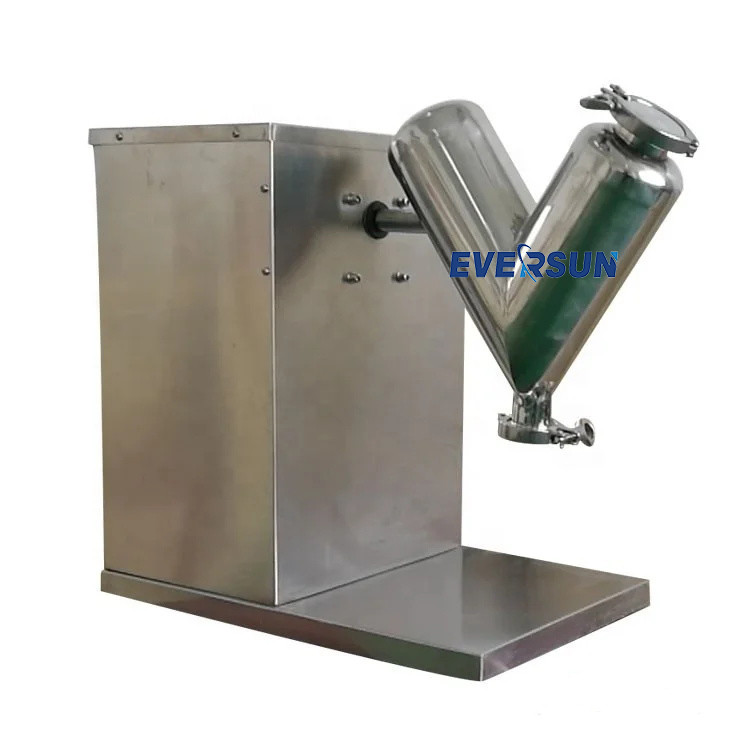

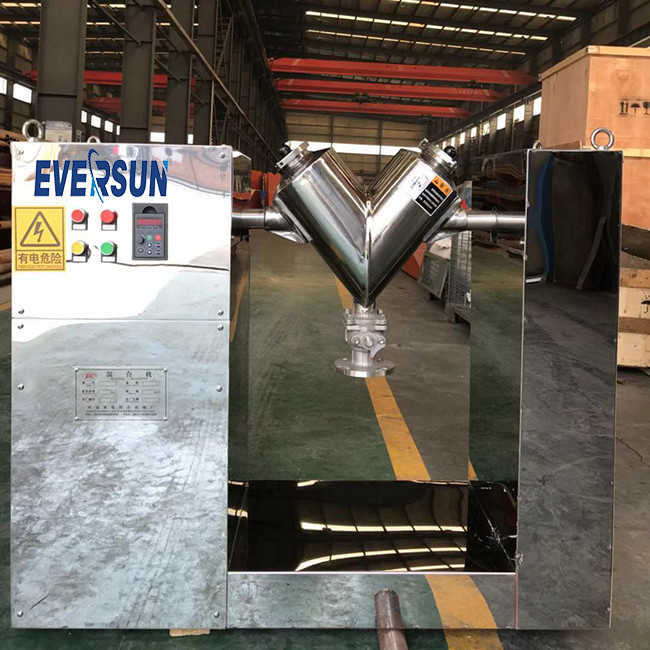

V Mixing Machine is an ideal mixing equipment for powder and granular materials, specifically designed with a V-shaped mixing chamber or trough. It is made of high quality stainless steel 304/316L and carbon steel, with a strong and stable structure. It features high mixing uniformity, with CV≤5%, low noise of ≤80dB, adjustable mixing time, and customized size. It is widely used in industries like food, pharmaceuticals, chemical engineering, etc. for the purpose of the blending and homogenization of dry powders, granules, and other solid materials. V-type mixer, v shape mixer, v-shaped dry powder mix machine are all names of this type of powder mixer, which is well-known for its superior performance.
The V-shaped chamber allows for efficient mixing by promoting the movement and tumbling of materials, resulting in a more uniform and thorough mixing process.
| Parameters | Values |
|---|---|
| Name | V Mixing Machine |
| Size | Customized |
| Mixing Uniformity | CV≤5% |
| Noise | ≤80dB |
| Maximum loading weight | 5-1200kg |
| Material | Stainless Steel304/316L, Carbon Steel |
| Effective volume | 5-2500 L |
| Total volume | 10-5000 L |
| Loading coefficient | 40%-50% |
| Mixing Time | Adjustable |
1. Better uniformity: The V-shaped mixer adopts a V-shaped tank design, which allows the material to flow and tumble more freely, thereby achieving a more uniform mixing effect. In contrast, some traditional mixers may have problems with material layering or accumulation, resulting in uneven mixing.
2. Higher mixing efficiency: Due to the special tank shape of the V-shaped mixer and the design of the mixing device, it can quickly and effectively mix materials with different ingredients together. In comparison, some other types of mixers may require longer mixing times to achieve the same uniformity.
3. Wider scope of application: V-shaped mixers are suitable for processing various forms of materials, including powders, granules and granule clusters. It is widely used in chemical, pharmaceutical, food, agricultural and other industries. Other types of mixers may be used more in specific types of materials or specific industries, and their scope of application is relatively narrow.
4. More convenient operation and maintenance: V-shaped mixers usually have a simple and easy-to-use operating interface and a detachable mixing device, making operation and maintenance more convenient. In comparison, some other types of mixers may have more complex operating procedures or more onerous maintenance requirements.
5. Better cleanability: V-shaped blenders are usually made of materials that are easy to clean, such as stainless steel. The mixing device is removable for easy cleaning and to prevent cross-contamination. Other types of mixers may be difficult to clean or prone to cross-contamination.
EVERSUN V Mixing Machine , with model number V, is a powerful solution for mixing different materials. It is made in China and is capable of loading 40-50% of its total volume, which can range from 10 to 5000 liters.
This V shape mixer machine offers a great mixing effect within a short time frame. The noise level is also relatively low, at 80 dB or below. You can even adjust the mixing time according to your needs. This allows you to customize the mixing process to suit your needs.
One of the biggest advantages of using the EVERSUN V Mixing Machine is that it is designed for a wide range of applications. From laboratories to production lines, it can be used in a variety of settings. It is also effective for mixing dry, wet, and viscous materials.
The EVERSUN V Mixing Machine is a great option if you are looking for a reliable and efficient tool for mixing different materials. Its adjustable mixing time, powerful loading capacity, and low noise level make it an ideal choice for any application.
V Mixing Machine offers complete technical support and service for our products. Our technical support team is comprised of experienced engineers and technicians who are available to answer your questions and provide solutions to optimize your production process. Our service includes:
We take pride in providing the best customer service and technical support for our customers. If you have any questions or need assistance, please contact us at any time.
The V Mixing Machine is packed in strong wooden cases for protection purposes. Each case contains all necessary parts, components, and accessories for the equipment.
Shipping is available by land, air, or sea. We can provide door-to-door shipping service when necessary. All deliveries are tracked and insured.
Q: What is EVERSUN V Mixing Machine ?
A: EVERSUN V Mixing Machine is a Chinese-made powder mixing machine with model number V, designed for mixing powders with uniformity and high efficiency.
Q: What materials is EVERSUN V Mixing Machine suitable for?
A: EVERSUN V Mixing Machine is suitable for mixing powder materials such as granular, powder, small grain, and fibrous materials.
Q: What are the advantages of EVERSUN V Mixing Machine?
A: EVERSUN V Mixing Machine has high mixing uniformity, high mixing efficiency, low energy consumption, low noise, and easy operation and maintenance.
Q: What is the working principle of EVERSUN V Mixing Machine?
A: EVERSUN V Mixing Machine works by using two different rotors running in opposite directions to mix materials uniformly and quickly.
Q: What is the capacity of EVERSUN V Mixing Machine?
A: The capacity of EVERSUN V Mixing Machine ranges from 500kg/h to 5000kg/h, depending on the customer's requirements.
