V-Type Powder Mixer For Uniform Mixing Of Dry Powder And Granular Materials In Pharmaceutical And Chemical Industries

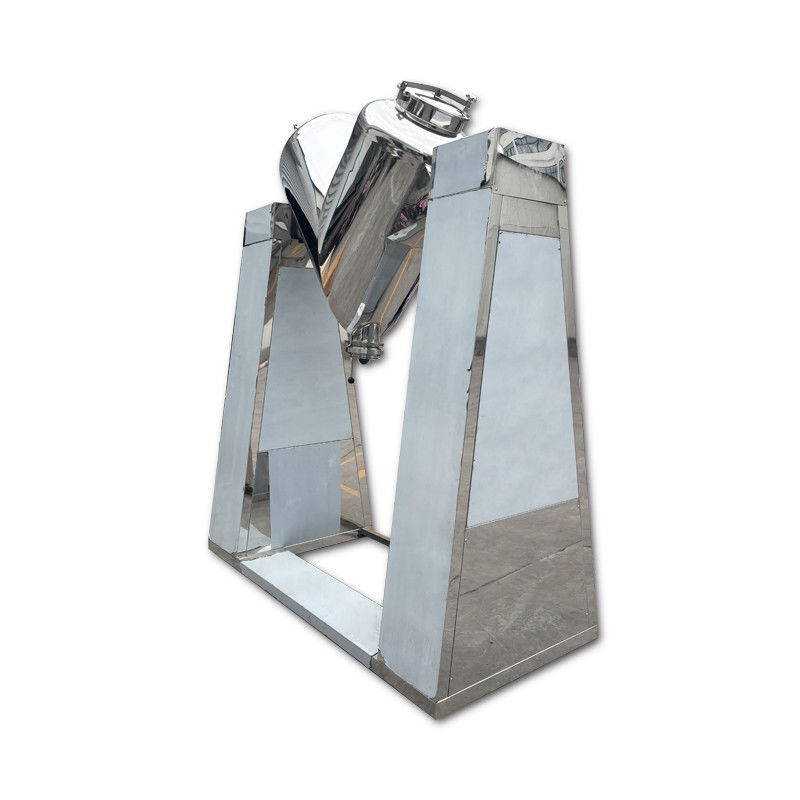

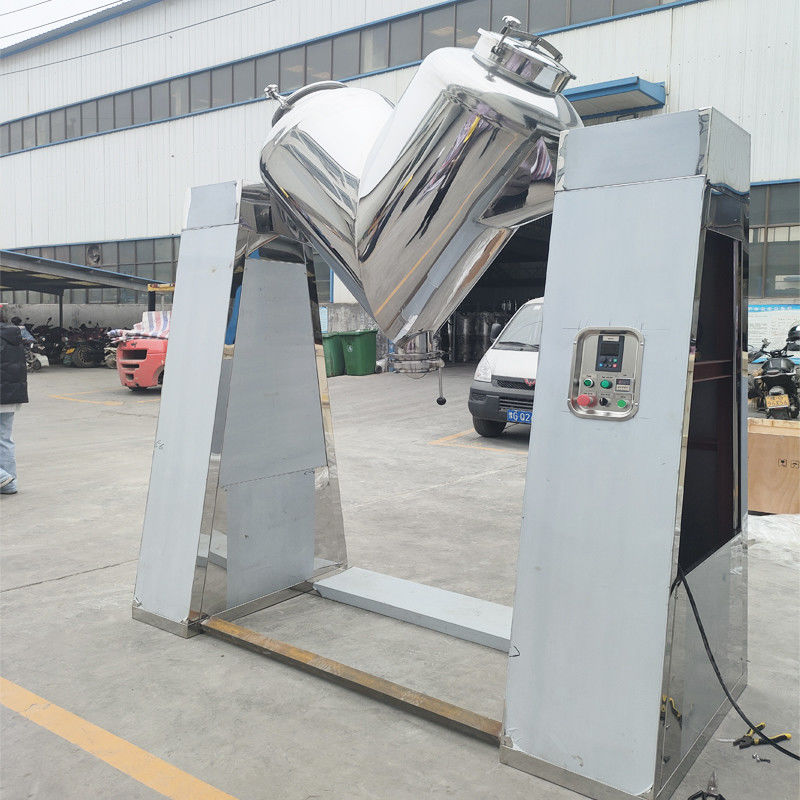

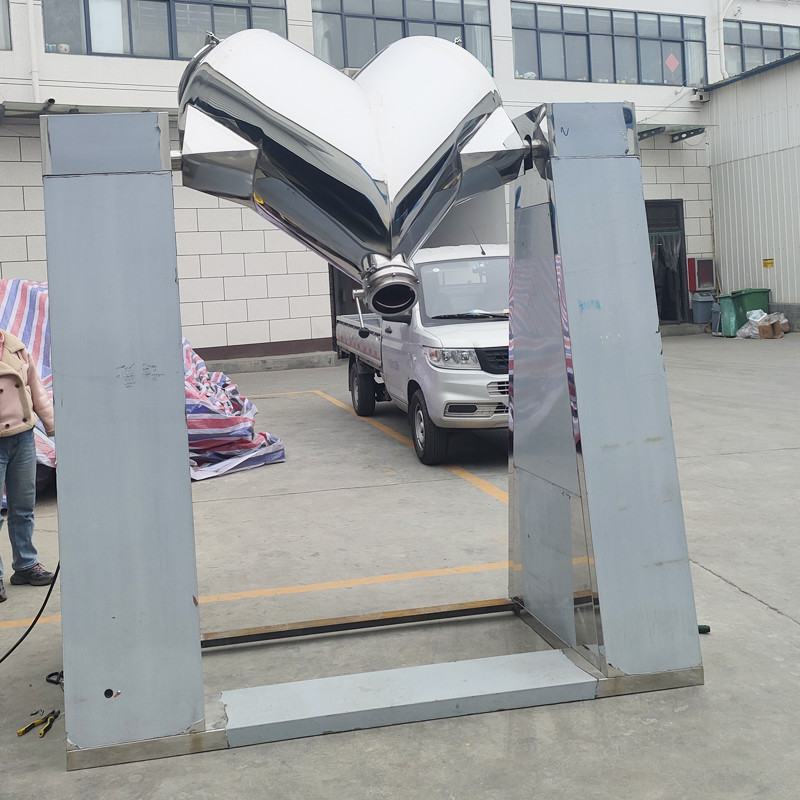

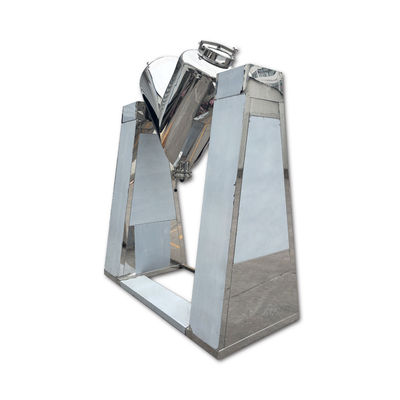

V-Type Mixer

Product Description

The V-type mixer, with its unique V-shaped cylinder structure, rotates around a horizontal shaft, enabling efficient convection, diffusion and shearing mixing of materials within the cylinder. The uniformity can reach over 99% within 10 to 30 minutes. It is easy to operate and has low maintenance costs. The design without forced stirring components can prevent material damage. It is suitable for dry powder and particle mixing in multiple fields such as medicine, food, and chemical engineering. It is a powder mixing equipment that combines high efficiency and mildness.

Working Principle

The V-type mixer is a highly efficient powder mixing equipment that achieves mixing through the rotation of a horizontal shaft. During operation, the cylinder drives the materials to climb to a higher position and then they fall freely due to gravity. In the V-shaped bottom convergence area, strong convection and interweaving occur, and at the same time, shearing and diffusion mixing take place between the particles. The rotational speed is usually controlled at 10 to 30 revolutions per minute to balance the centrifugal force and gravity and prevent the material from adhering to the wall. It has no forced stirring structure, and the mixing is gentle. It can achieve a uniformity of over 99% within 10 to 30 minutes. It is suitable for the mixing of dry powders or granules in the fields of medicine, food, and chemical engineering, especially for the uniform mixing of small amounts of additives and large quantities of materials. It features both high efficiency and low damage.

Product features

- Outstanding mixing efficiency and accuracy: The unique V-shaped structure forms a strong convection mixing path, achieving a uniformity of over 99% within 10 to 30 minutes, which is 30% to 50% more efficient than traditional drum types. It is particularly suitable for high-precision scenarios such as pharmaceutical preparations and precision chemicals.
- Gentle mixing without damaging materials: There are no forced stirring components. Mixing is achieved by gravity flipping, with low shear force. It can protect brittle particles (such as Chinese herbal decoction pieces) and heat-sensitive components (such as enzyme preparations) from being damaged, avoiding the heating or agglomeration problems of traditional stirring.
- Simple and worry-free operation and maintenance: One-button start and stop + adjustable speed design, supporting PLC automatic control; The cylinder is smooth without dead corners, and the unloading is convenient. It meets the GMP cleanliness requirements and has low cleaning difficulty. The mechanical structure is simple, and only the bearing lubrication needs to be checked on a daily basis. The maintenance cost is 40% lower than that of complex stirring equipment.
- Extremely strong scene compatibility: It can handle powders and granules, and is compatible with materials with significant differences in density and fluidity. It is particularly good at mixing small amounts of additives (such as trace elements) with bulk matrices, and is widely used in the fields of medicine, food, feed, new energy materials, etc., meeting the needs of multiple scenarios from laboratory to industrial production.
