| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO, CE |
| Model Number: | ZKS/QVC |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Noise: | ≤65dB | Operating Pressure: | 0.4-0.6MPa |
|---|---|---|---|
| Power: | 1.5-11KW | Lifespan: | 5-10 Years |
| Material: | Powder, Particle Transfer | Capacity: | 50-6000kg/h |
| Service: | OEM/ODM Customized | Voltage: | 110V-480V |
| High Light: | Mobile Vacuum Feeding System Conveyor,Material Transfer Vacuum Conveyor Systems |
||

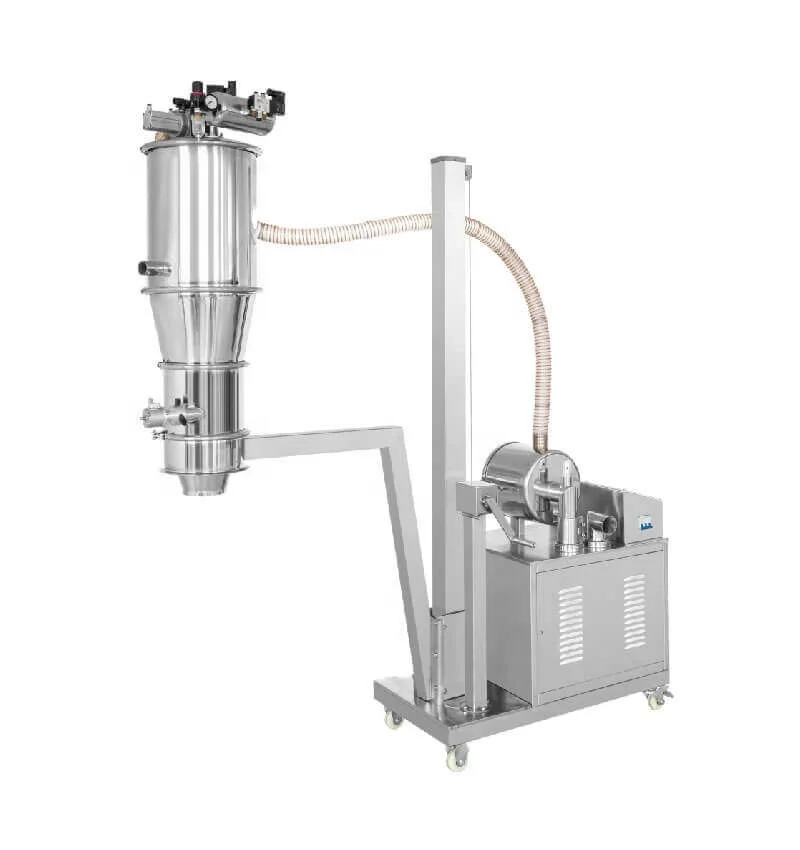

A vacuum feeding system is a specialized equipment used for the automated and controlled feeding of bulk materials or powders into a processing or packaging line. It utilizes vacuum technology to transport materials from a source, such as a storage container or silo, to the desired destination, such as a hopper or processing machine. This makes the process of transferring materials from one point to another much faster and more efficient.It is suitable for use in many industrial and manufacturing applications. Additionally, they are highly customizable, with options for OEM/ODM customization available.
The portable vacuum transfer system provides an effective and efficient way to handle materials with extreme care and precision. They are designed for reliability and safety, and they are highly durable, ensuring that they will provide you with years of reliable service. The systems are also designed to be energy-efficient, helping to reduce energy costs.
| Parameter | Value |
|---|---|
| Product Name | Vacuum Conveyor Systems |
| Conveying distance | 2-20m |
| Service | OEM/ODM Customized |
| Power | 1.5-11KW |
| Temperature | Normal Temperature |
| Operating pressure | 0.4-0.6MPa |
| Control | PLC Control/Control Box |
| Capacity | 50-6000kg/h |
| Material | Powder, Particle Transfer |
| Voltage | 110V-480V |
| Warranty | 1 Year |
| Keywords | Vacuum Feeder, Mobile Vacuum Conveying Systems, Vacuum Conveyor Systems |
1. Components: The vacuum feeding system consists of several key components, including a vacuum pump, conveying pipeline, material receiver, and control system.
2. Vacuum Conveying Process: The vacuum feeding system operates based on the principle of negative pressure. The vacuum pump creates a vacuum in the conveying pipeline, causing the material to be drawn into the pipeline and conveyed to the receiver.
3. Material Handling: The vacuum feeding system is suitable for handling a wide range of materials, including powders, granules, and other bulk solids. The system can handle various materials, including ingredients, additives, raw materials, and finished products.
4. Automation and Control: The control system allows for precise control of material flow rate, conveying distance, and other parameters. It ensures consistent and accurate feeding of materials.
5. Hygiene and Safety: Vacuum feeding systems are designed with hygiene and safety considerations in mind. They often feature stainless steel construction, smooth surfaces, and easy disassembly for cleaning and maintenance

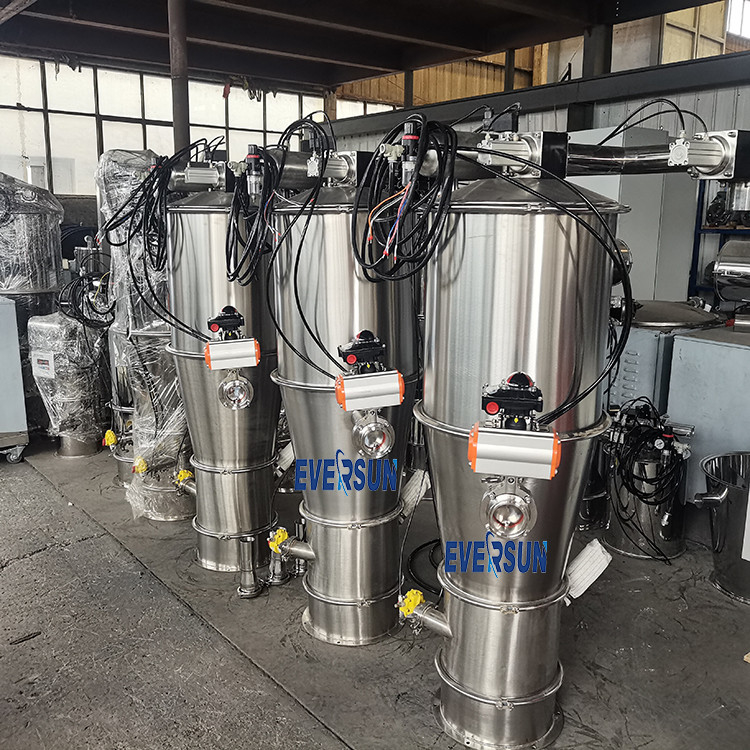

EVERSUN ZKS vacuum feeding systems are perfect for use in a wide range of industries to move dry, granulated, or powdered materials from one location to another. These systems are ideal for use in manufacturing, packaging, and processing facilities with limited space and require minimal manual labor.
Our vacuum conveying systems are manufactured using high-grade components and are designed for high precision and accuracy. They provide an easy to use and reliable system.
These systems are perfect for transferring dry, granulated, and powdered materials with a capacity of 50-6000kg/h or customized. They are also suitable for use in OEM/ODM customised applications. Our systems are renowned for their high-efficiency and accuracy, making them an ideal choice for businesses that need reliable and efficient pneumatic conveying solutions.
Vacuum feeding systems provide technical support and services to ensure complete satisfaction for all customers. Our highly trained and experienced specialists are available to help you make the most of your Vacuum Conveyor System. We provide installation and maintenance services, as well as troubleshooting and repair services. We will also work with you to optimize your system for maximum efficiency and performance. Our team of experts can also provide training and education on the proper use of your system. We are dedicated to providing you with the best possible customer experience.
Vacuum feeding systems Packaging and Shipping:
