1 To 5 Layers Linear Dewatering Vibrating Screen With Large Screening Area

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO, CE
Model Number: DZSF
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Standard export wooden cases
Delivery Time: within 7-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000sets/year
Detail Information
Vibration Motor: Double Vibration Motor Screen Layer: 1 To 5
Screen Size: 0.02-20mm Screen Frame: Stainless Steel, Carbon Steel
Particle  Size: ≤20mm Product Name: Linear Screen
Screening Area: Large Capacity: ≤32t/h Or Customized
High Light:

5 Layers Linear Vibrating Screen


Linear Dewatering Vibrating Screen


Carbon Steel Linear Vibrating Sieve

Product Description

Product Description:

The Linear Screen also known as linear vibrating screen or linear motion screen, is a powerful, efficient and versatile sieving machine that can be used for a wide range of particle size, from 0.02mm to 20mm. It features a double vibration motor, allowing for a smooth and efficient operation. This square linear vibrating sifter can be used for up to 5 layers at a time, making it ideal for sorting and screening a wide variety of materials. It is also designed for automatic operation, making it a hassle-free solution for all your sieving needs. With its precise particle size classification, this linear vibrating sieve screen machine is perfect for sorting and separating materials of different sizes. The Linear Screen is an ideal choice for anyone looking for a reliable and efficient way to screen materials.

Technical Parameters:

Model Layer Screening
Mesh size(mm) Particle
Capacity(t/h) Power
Double Amplitude(mm)
DZSF-612 1 to 5 600*1200 0.02-20 ≤20 ≤3 0.37×2 6 to 10
DZSF-520 1 to 5 500*2000 0.02-20 ≤20 ≤5 0.37×2 6 to 10
DZSF-525 1 to 5 500*2500 0.02-20 ≤20 ≤8 0.37×2 6 to 10
DZSF-1020 1 to 5 1000*2000 0.02-20 ≤20 ≤12 0.75×2 6 to 10
DZSF-1025 1 to 5 1000*2500 0.02-20 ≤20 ≤16 0.75×2 6 to 10
DZSF-1030 1 to 5 1000*3000 0.02-20 ≤20 ≤20 1.1×2 6 to 10
DZSF-1224 1 to 5 1200*2400 0.02-20 ≤20 ≤23 1.5×2 6 to 10
DZSF-1525 1 to 5 1500*2500 0.02-20 ≤20 ≤28 1.5×2 6 to 10
DZSF-1530 1 to 5 1500*3000 0.02-20 ≤20 ≤32 2.2×2 6 to 10

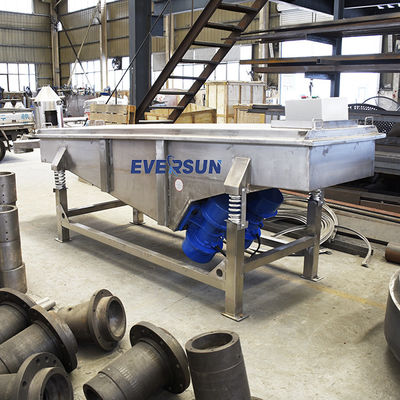

1 To 5 Layers Linear Dewatering Vibrating Screen With Large Screening Area 0


1. Linear Motion: Linear screens operate with a linear motion, where the material moves in a straight line on the screen surface. This motion helps to effectively separate and classify the materials based on size or other specified criteria.


2. High Screening Efficiency: Linear screens are known for their high screening efficiency. They utilize a mesh or perforated plate screen surface that allows fine particles to pass through while efficiently separating larger particles based on size or other specified criteria.


3. Adjustable Vibration Parameters: Linear screens often have adjustable vibration parameters such as vibration amplitude and frequency. This adjustability allows operators to optimize the screening process for different materials, ensuring high precision and efficiency.


4. Multiple Screening Decks: Linear screens can be designed with multiple screening decks stacked on top of each other. This enables the separation of materials into multiple size fractions or the simultaneous separation of multiple materials in a single operation.


Linear screens are versatile and reliable machines used for precise screening and classification of materials. Their high screening efficiency, adjustable parameters, and customizable features make them an effective solution for a wide range of screening applications.


1 To 5 Layers Linear Dewatering Vibrating Screen With Large Screening Area 1


The Linear Screen from EVERSUN is the perfect choice for a wide variety of industries. This model comes equipped with a DZSF number and is made in China. The amplitude of the vibration is adjustable to meet the needs of the customer, and with a screen layer of one to five, it's perfect for large scale sorting. The machine is equipped with two vibration motors and is capable of sorting large amounts of material quickly and efficiently. With a high quality, long lasting design, the EVERSUN Linear Screen is sure to be the ideal solution for your linear sieve shaker needs.

1 To 5 Layers Linear Dewatering Vibrating Screen With Large Screening Area 2

Support and Services:

Linear Screen Technical Support and Service

We provide professional technical support and service for Linear Screen. Our experienced engineers, problem-solving experts and customer service representatives are available to help you with any issue you may have, from installation to maintenance and troubleshooting.

We are committed to offering our customers the best service, and strive to ensure that our products are working at their full capacity and are reliable. We have a knowledgeable support team who can provide technical advice and assistance to our customers, as well as a comprehensive parts inventory.

If you have any questions or concerns, please do not hesitate to contact us. Our friendly and knowledgeable customer service representatives are available 24/7 to help you with any issue you may have.

Packing and Shipping:

Packaging and Shipping of Linear Screen

The linear screen is shipped in a wooden box, which is designed to protect the product during transportation. The box is sealed with special elastic straps for extra protection. The box also contains an installation and instruction manual.

The product is shipped via UPS, FedEx, DHL, or other reliable shipping service.

1 To 5 Layers Linear Dewatering Vibrating Screen With Large Screening Area 3


Q1: What is the brand name of the Linear Screen?
A1: The brand name of the Linear Screen is EVERSUN.
Q2: What is the model number of the Linear Screen?
A2: The model number of the Linear Screen is DZSF.
Q3: Where does the Linear Screen come from?
A3: The Linear Screen comes from China.
Q4: What is the purpose of the Linear Screen?
A4: The purpose of the Linear Screen is to separate materials into various sizes for further processing in a grade.
Q5: What are the features of the Linear Screen?
A5: The Linear Screen has the features of low energy consumption, high efficiency, simple structure, easy maintenance, and low noise.
